Oil Cooler Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV, 2003 Mazda MPV, and 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Drain the coolant into a container.
  3. Drain the ATF into a container. See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .
  4. Remove the battery, battery tray, and battery tray bracket.
  5. Remove the air cleaner component. See FRESH-AIR DUCT REMOVAL NOTE .
  6. Remove the radiator grille.
  7. Remove the front bumper.
  8. Remove the splash shield.
  9. Remove the mud guard.
  10. Remove in the order indicated in the figure.

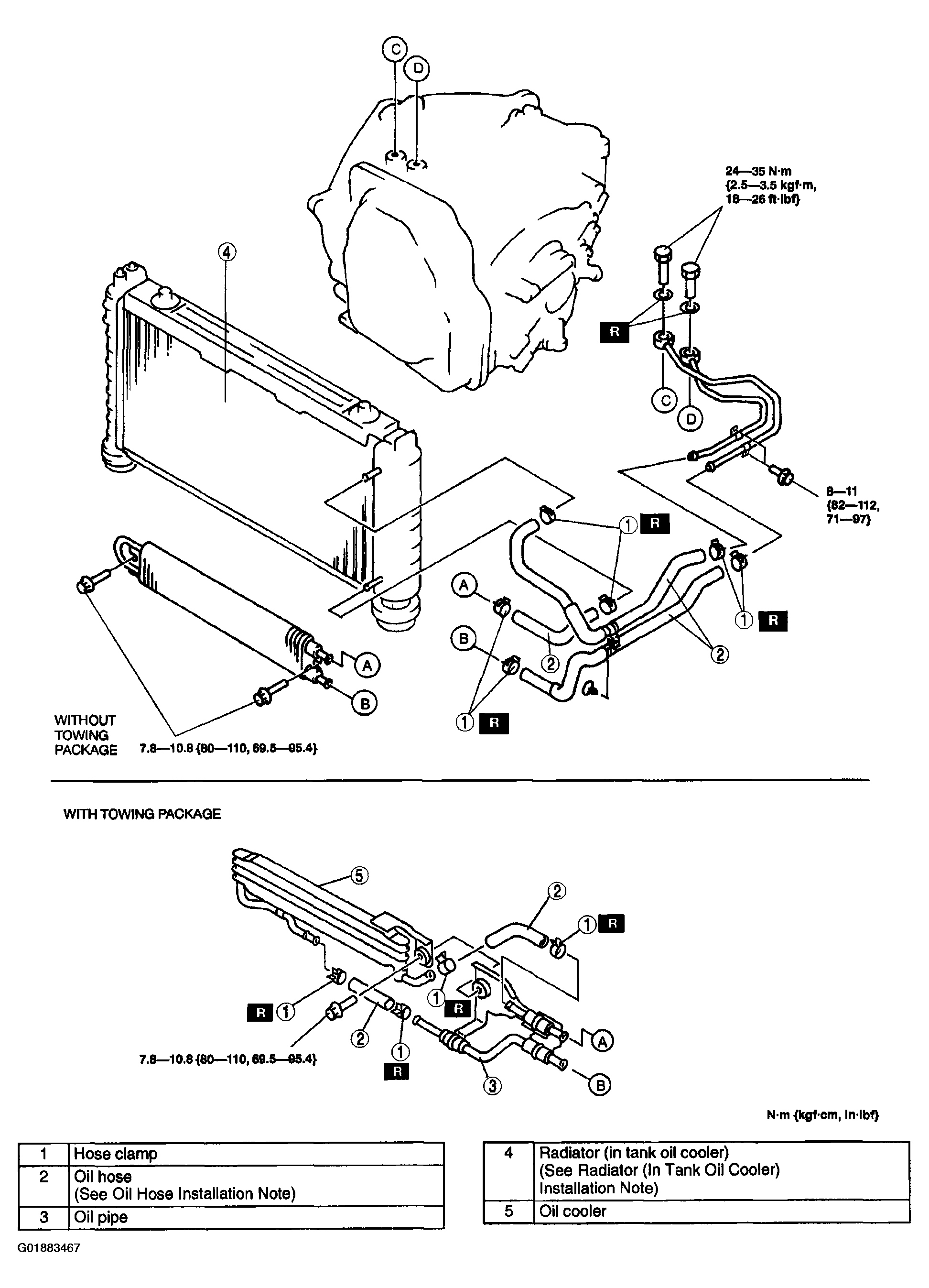

    Fig 1: Removing/Installing Oil Cooler
    G01883467Courtesy of MAZDA MOTORS CORP.
  11. Install in the reverse order of removal.
  12. Add ATF to the specified level. See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .
  13. Add coolant to the specified level.
  14. Connect the negative battery cable.
  15. Inspect for oil leakage from the oil pipes and oil hoses.
  16. Inspect for coolant from the hoses.
  17. Inspect the ATF level and condition. See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION .
  18. Carry out the line pressure test. See HYDRAULIC PRESSURE TESTS .
  19. Carry out the road test. See ROAD TEST .
