Transaxle Installation Note

WARNING: This page is about a different car, the 2004 Mazda MPV, 2003 Mazda MPV, and 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Verify that the transaxle is securely supported by the jack. If the transaxle should falls, serious injury or death and damage to the vehicle could result. Before removing the transaxle make sure that the jack is securely supporting it.

Set the transaxle on a jack and lift it into place.

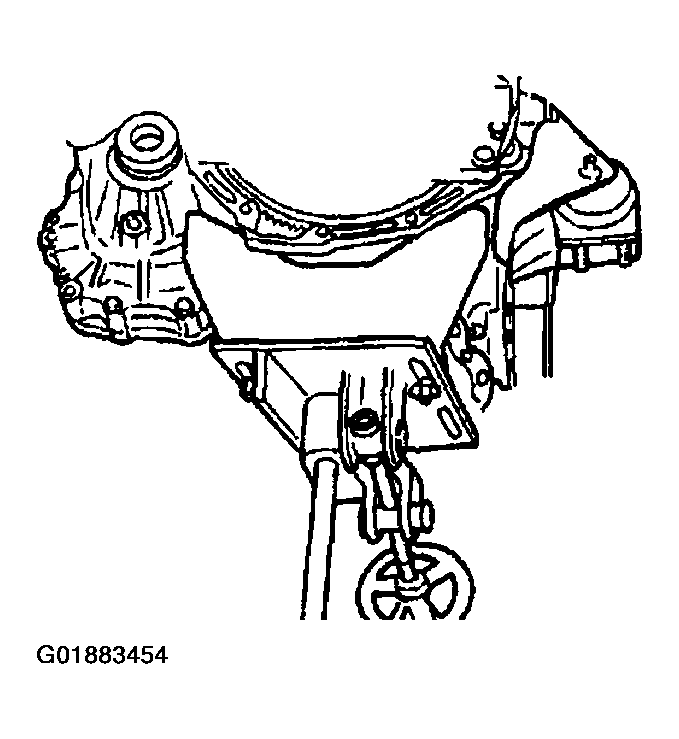

Fig 1: Supporting Transaxle On Jack
Courtesy of MAZDA MOTORS CORP.
Install the transaxle mounting bolts.
Tightening Torque

37-52 N.m {3.8-5.3 kgf.m, 28-38 ft.lbf}

Fig 2: Identifying Transaxle Mounting Bolts
Courtesy of MAZDA MOTORS CORP.
