Engine Mount Member Installation Note
WARNING: This page is about a different car, the 2004 Mazda MPV, 2003 Mazda MPV, and 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

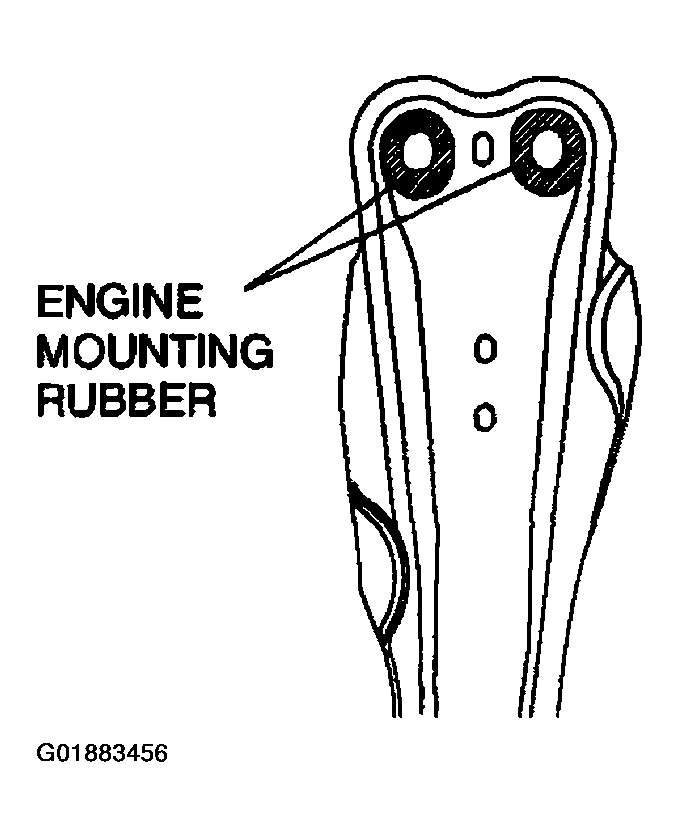

- Position the direction indicator on engine mount member bushings facing toward the front side, and install the bushings onto the engine mount member.
- To install the engine mount member, put the No. 2 engine mount stud bolts through the engine mount member installation holes.
- Install the engine mount member bolts A and nuts A.
Tightening Torque
A: 64-89 N.m {6.5-9.1 kgf.m, 47-65 ft.lbf}
- Loosely tighten the No. 2 engine mount nuts B and C.
- Remove the SSTs (engine support).
- Tighten the No. 2 engine mount nuts B and C.
Tightening Torque
B: 67-93 N.m {6.8-9.5 kgf.m, 50-68 ft.lbf}
C: 85-116 N.m {8.7-11.9 kgf.m, 63-85 ft.lbf}
