Transmission/Transaxle Technical Data

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

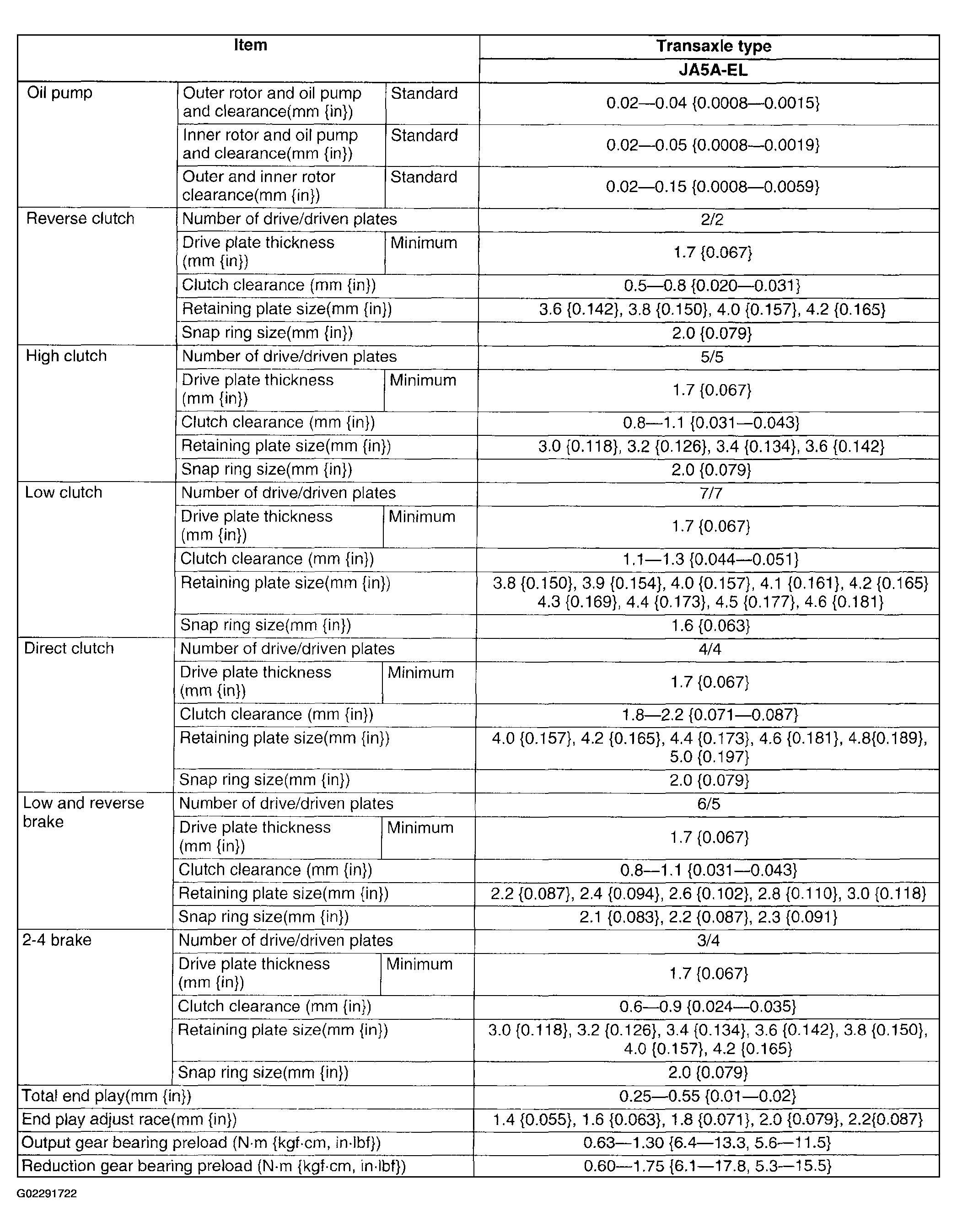

Fig 1: Transmission/Transaxle Specifications

Courtesy of MAZDA MOTORS CORP.

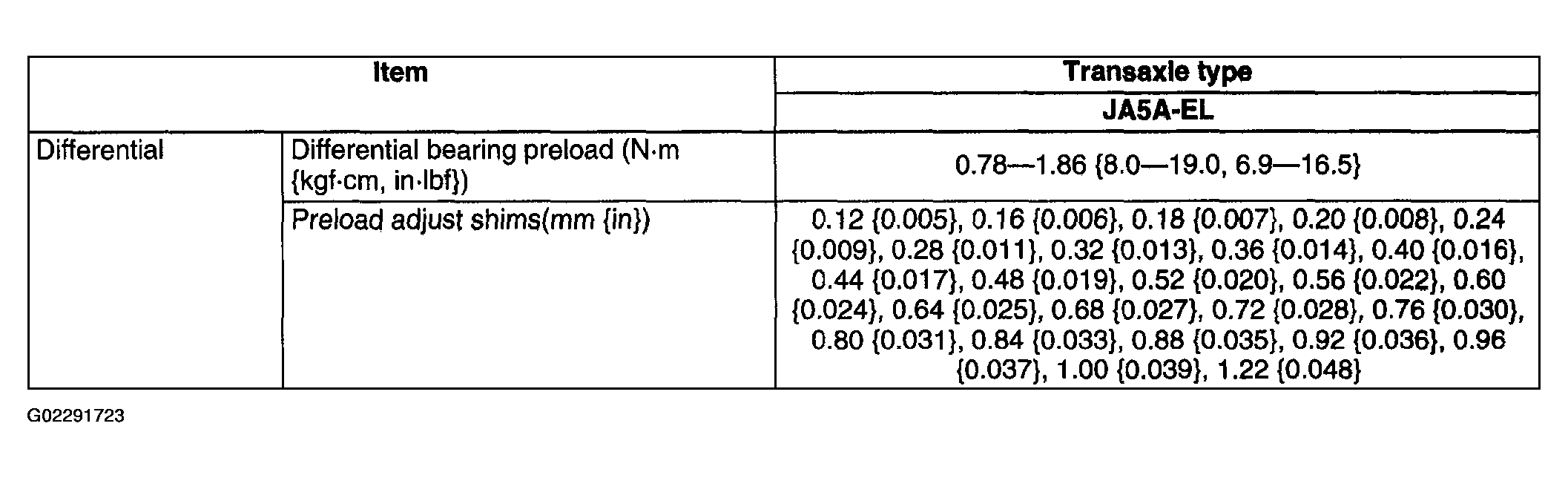

Fig 2: Transmission/Transaxle - Differential Specifications

Courtesy of MAZDA MOTORS CORP.

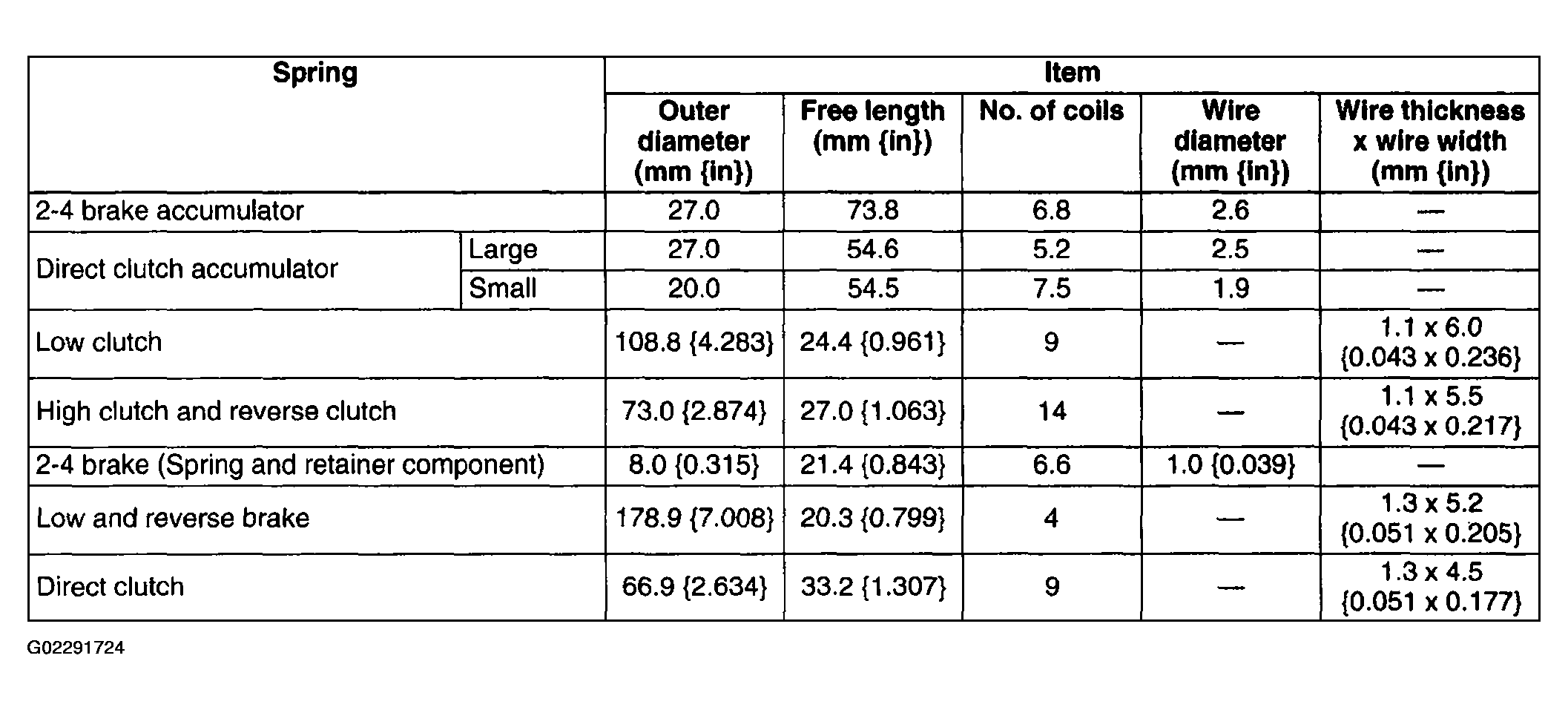

Fig 3: Transmission/Transaxle - Spring Specifications

Courtesy of MAZDA MOTORS CORP.

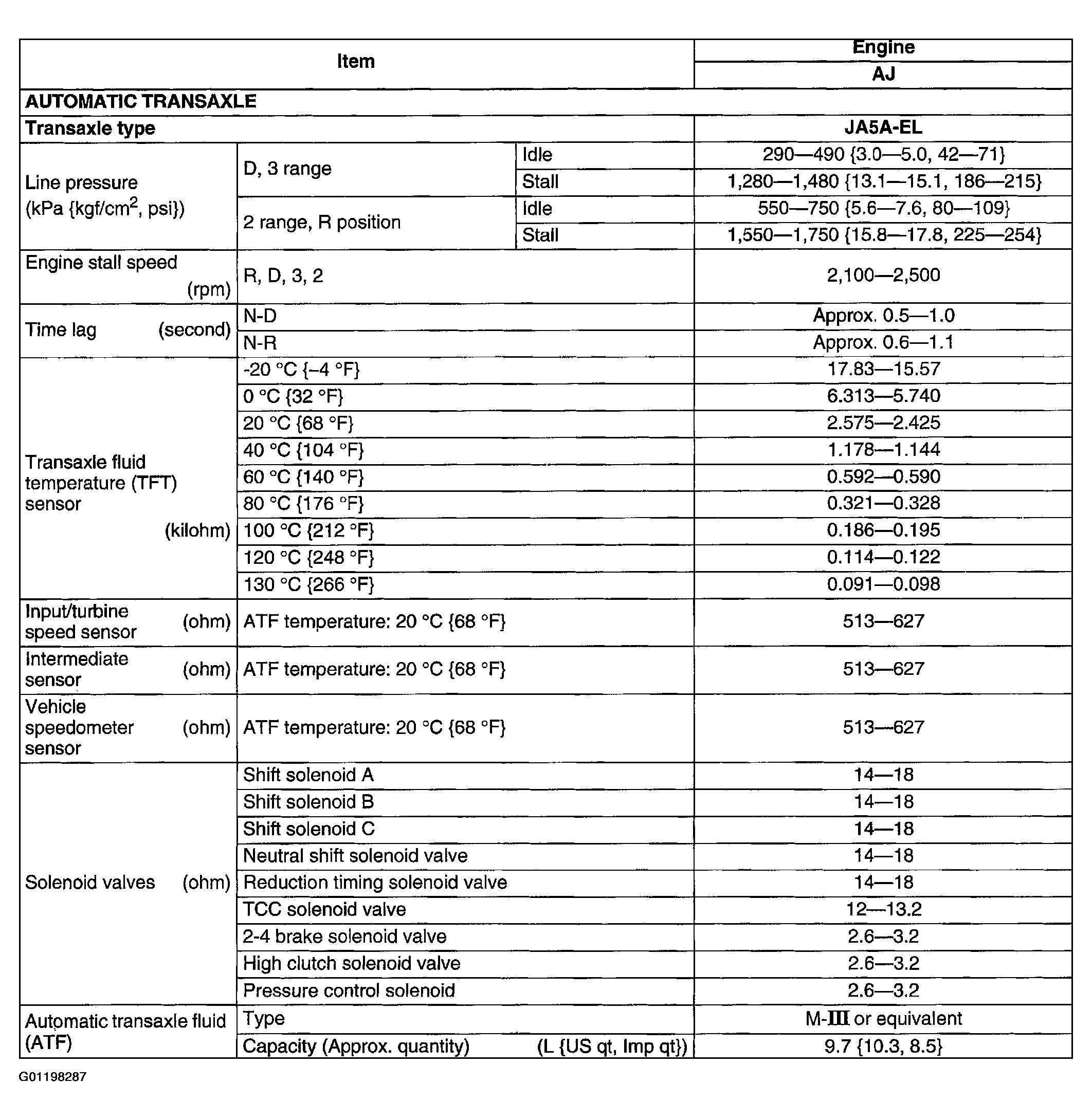

Fig 4: Technical Data (2002-03 Models)

Courtesy of MAZDA MOTORS CORP.

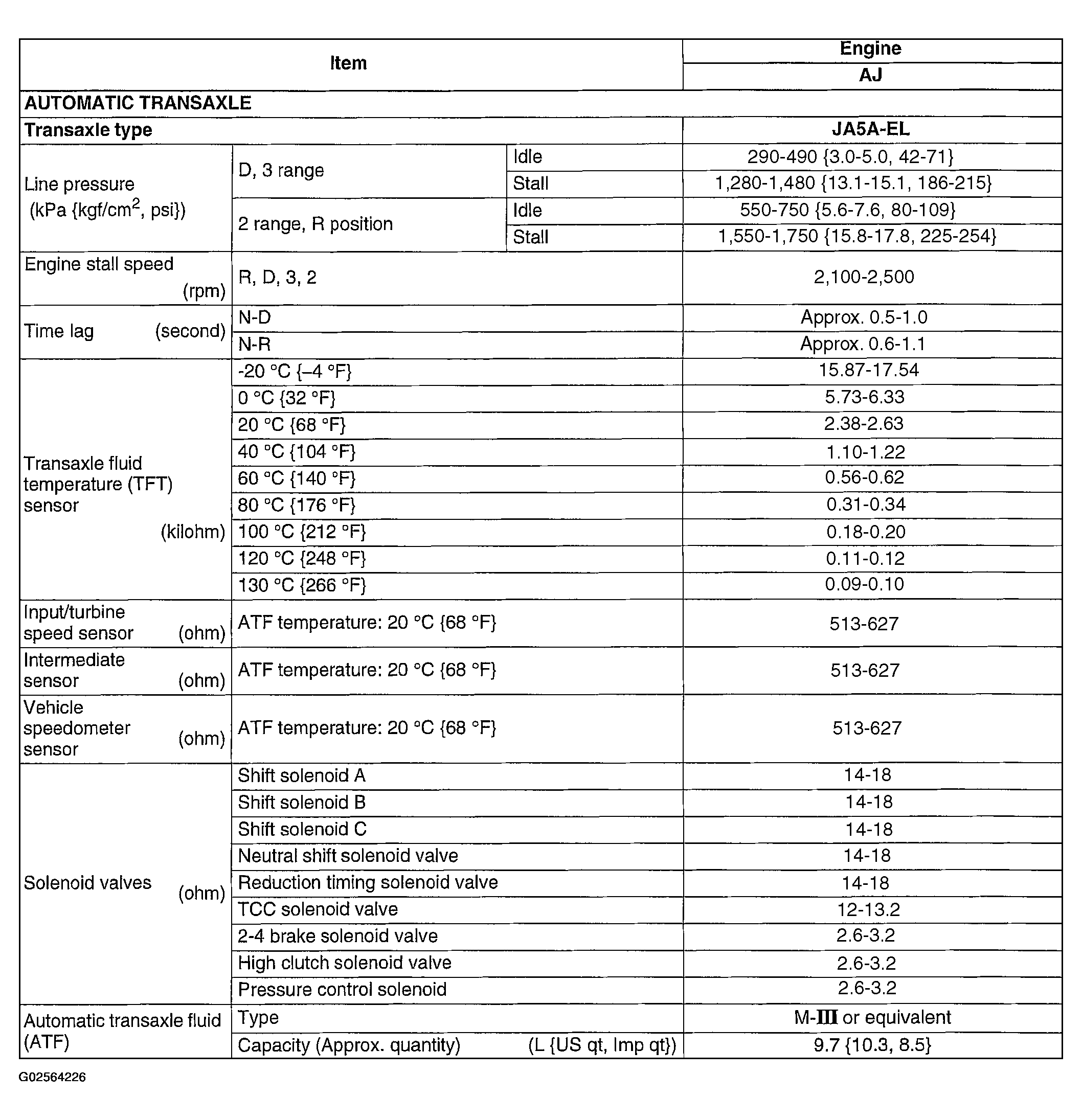

Fig 5: Technical Data (2004 Models)

Courtesy of MAZDA MOTORS CORP.
