Clutch Clearance: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Using a thickness gauge, measure clearance between the retaining plate and the snap ring.
- If not as specified, replace parts where necessary.
Clearance

Reverse Clutch: 0.5-0.8 mm {0.020-0.031 in}

High Clutch: 0.8-1.1 mm {0.031-0.043 in}

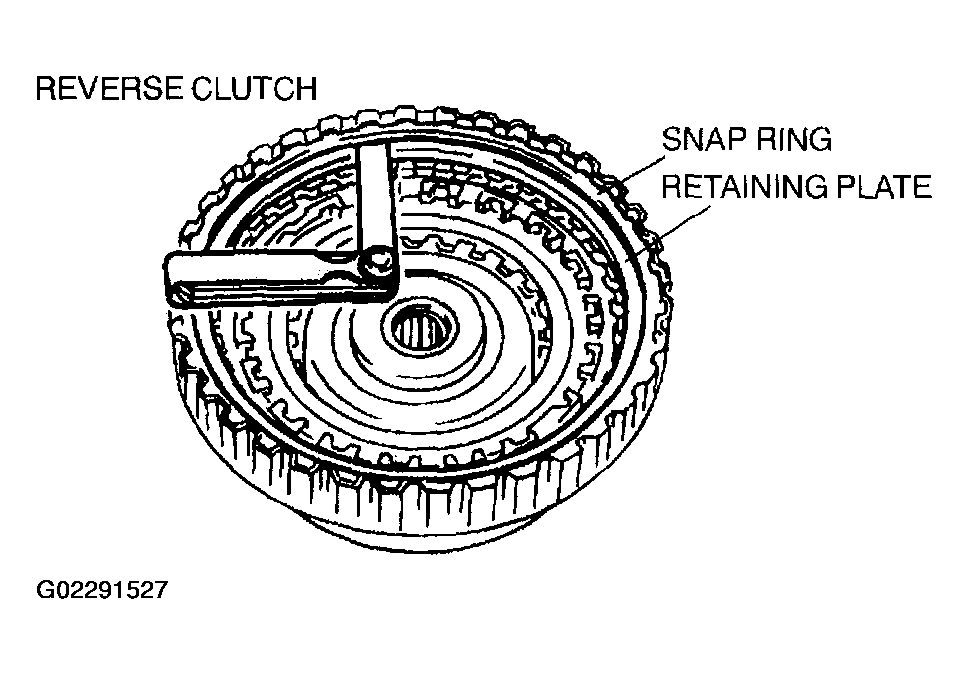

Fig 1: Measuring Reverse Clutch Clearance

Courtesy of MAZDA MOTORS CORP.

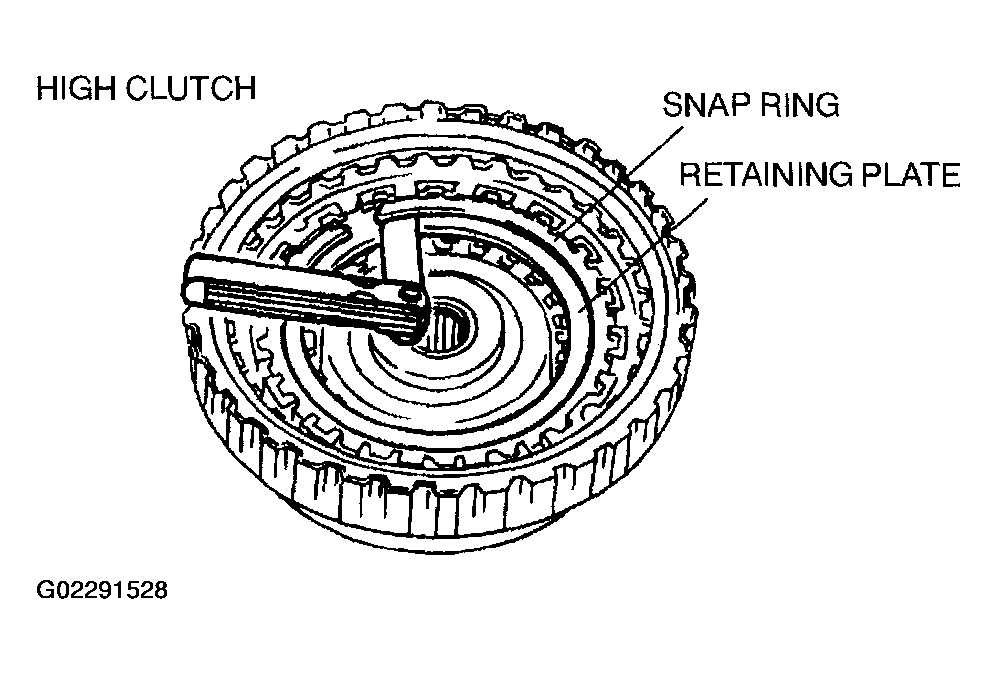

Fig 2: Measuring High Clutch Clearance

Courtesy of MAZDA MOTORS CORP.
