R Position: Operation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Line pressure applied to the manual valve is transmitted to line pressure, which engages the reverse clutch.
Line pressure also engages the low and reverse brake through the reverse inhibitor valve.
Line pressure driven to the pressure regulator valve is transmitted to torque converter pressure and sent to the torque converter through the TCC control valve.

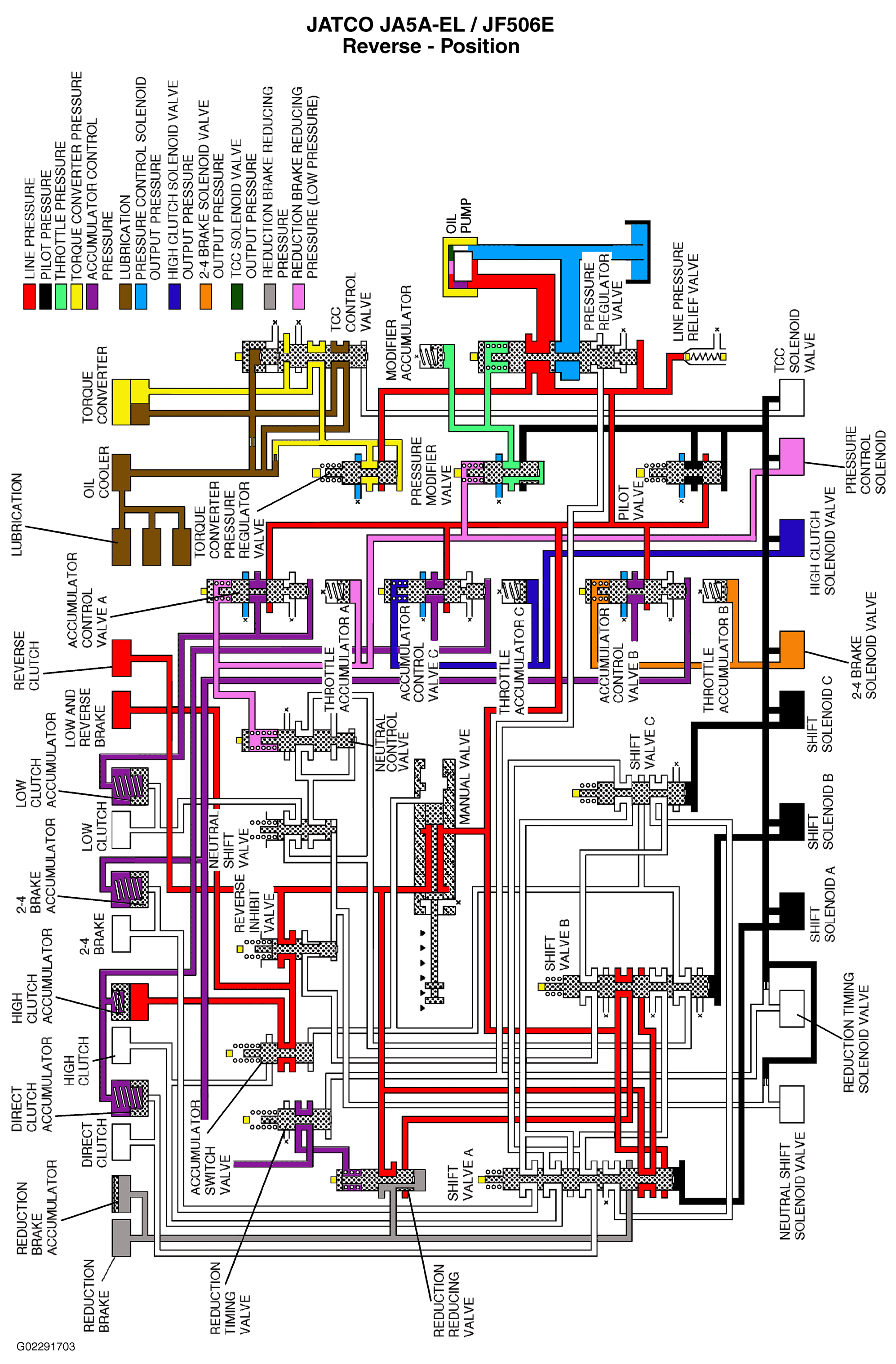

Fig 1: Identifying R Position Line Pressures
Courtesy of MAZDA MOTORS CORP.
