R Position (Reverse Inhibition Control): Outline

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

The driving force of the input shaft is transmitted to the reverse and high clutch drum, and then to the front sun gear through the reverse clutch, causing the front sun gear to rotate counterclockwise.
None of the low and reverse brake are operating, however, so this force is not transmitted to the output gear.

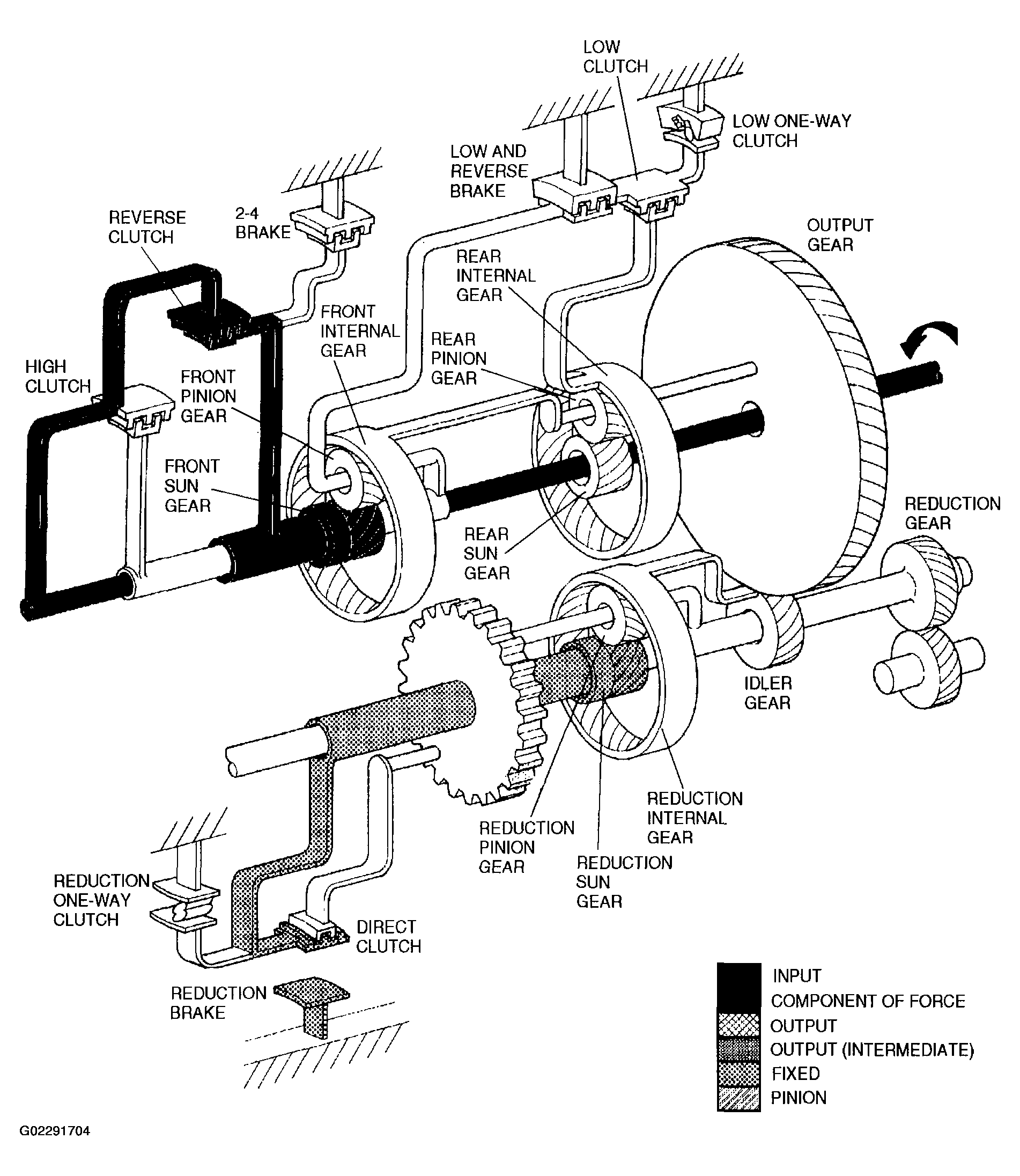

Fig 1: Identifying Reverse Inhibition Control Driving Force
Courtesy of MAZDA MOTORS CORP.
