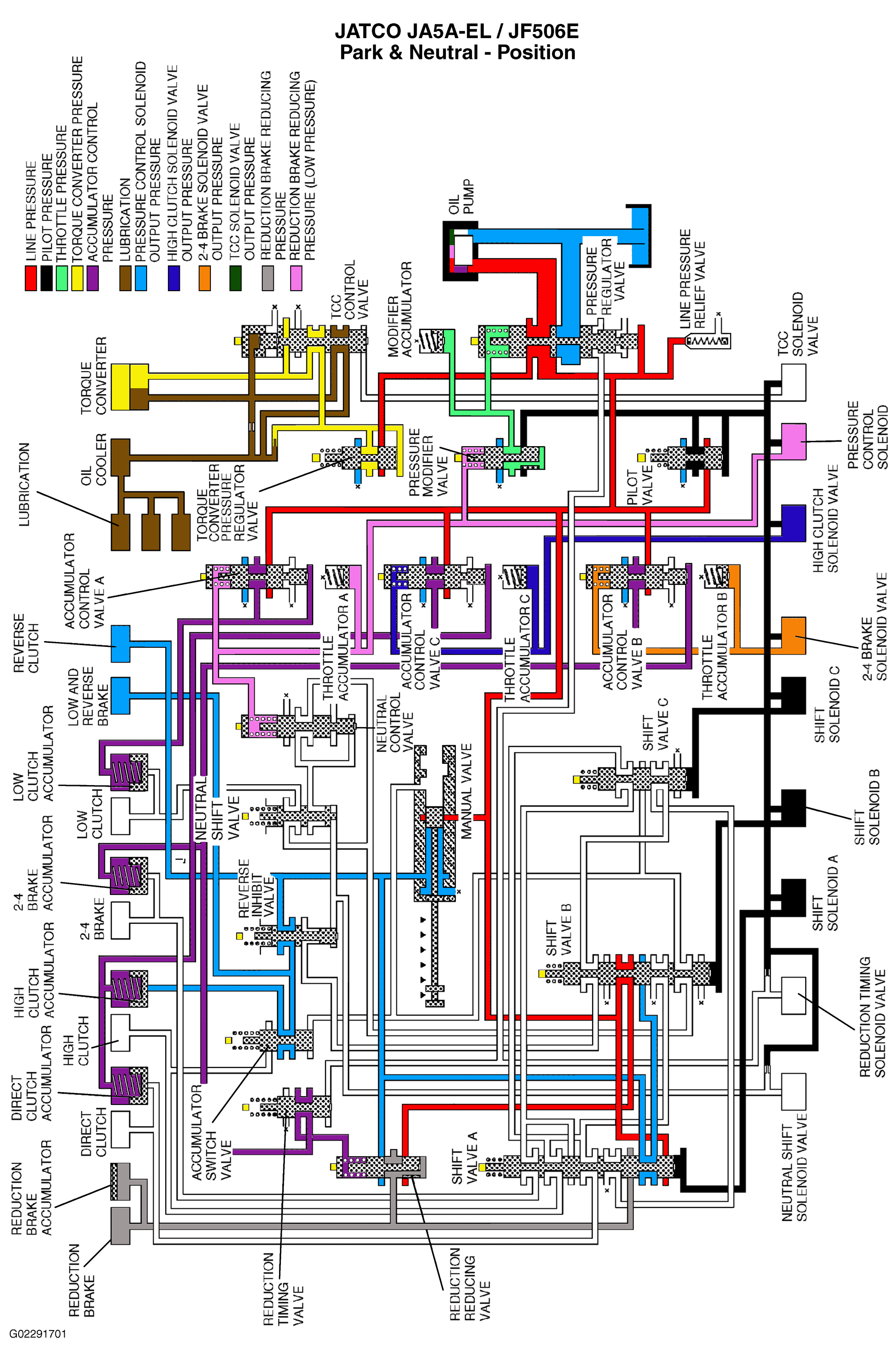

P/N Position: Operation
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Line pressure applied to the manual valve is not transmitted to any path.
- Line pressure applied to the pressure regulator valve is transmitted to torque converter pressure regulator valve and sent to the torque converter through the torque converter clutch control valve.
