Planetary Gear Description: Operation: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

The planetary gear works as a transmission when the sun gear and the internal gear are engaged.
The sun gear, installed inside of the pinion gears, and the internal gear, installed outside of the pinion gears, are engaged with their respective gears.
The sun gear and the internal gear rotate on the center of the planetary gear.

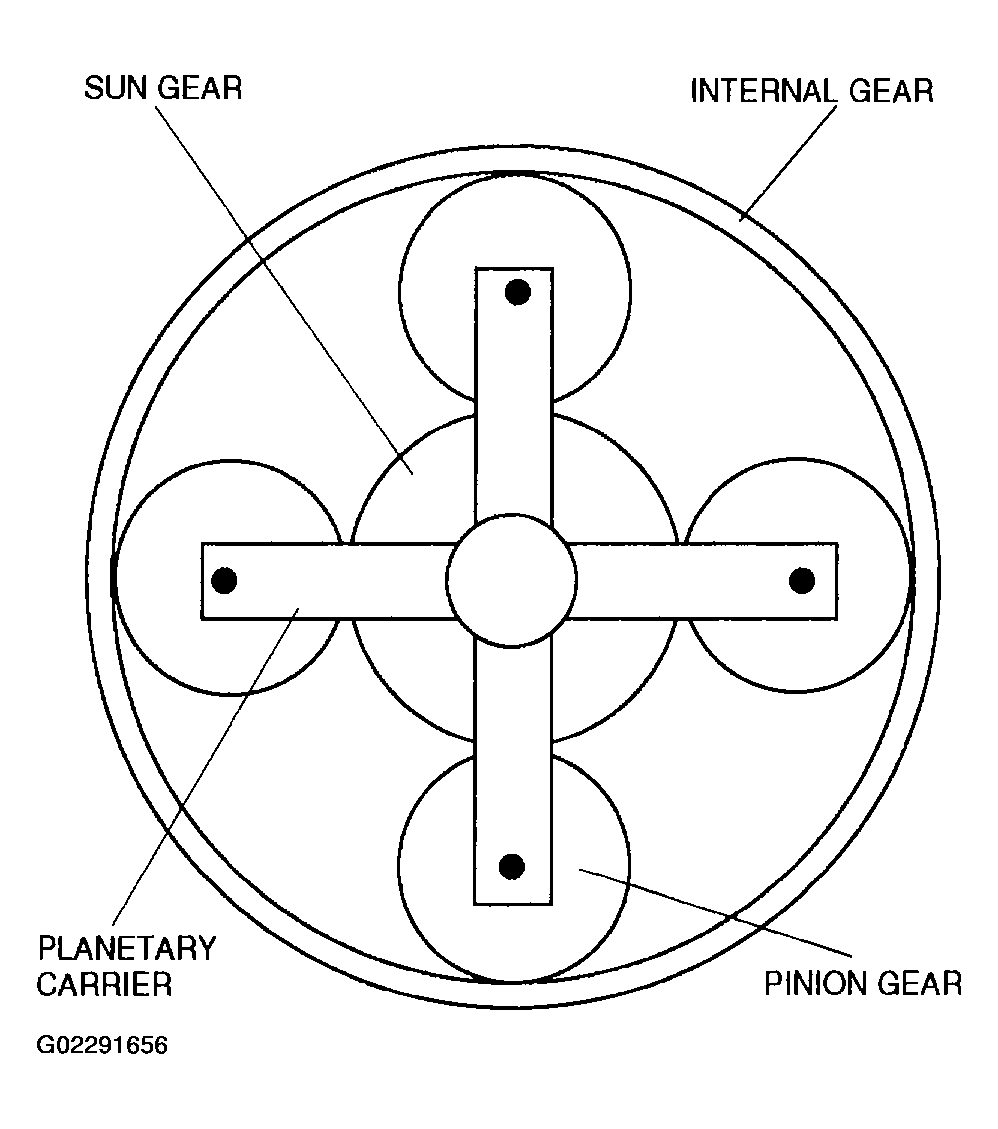

Fig 1: Identifying Planetary Gear Components
Courtesy of MAZDA MOTORS CORP.
The pinion gears turn in the following two ways:
- On their own centers ("rotation").
- On the center of the planetary gear ("revolution").

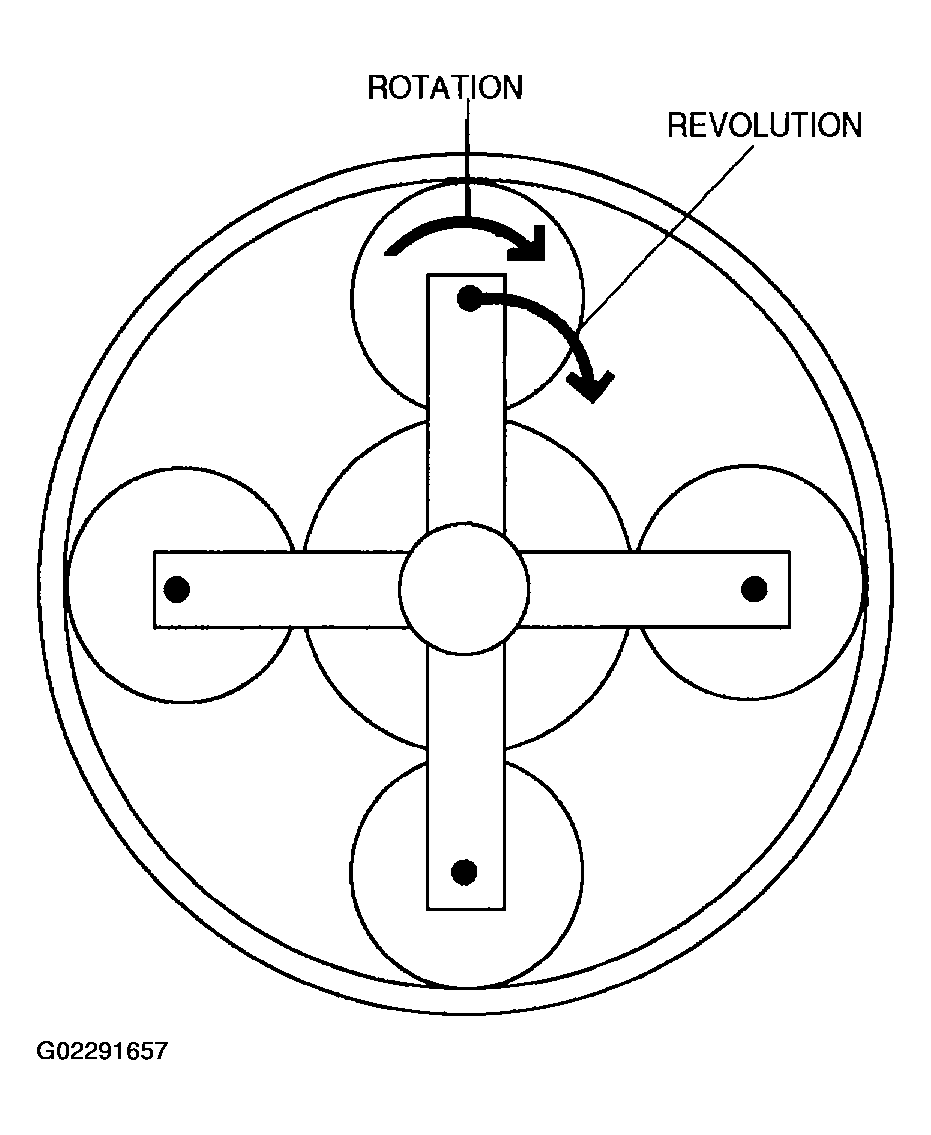

  Fig 2: Identifying Pinion Gear Rotation
  Courtesy of MAZDA MOTORS CORP.
