Gear Ratio Of Each Range

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

The relation between each element of the planetary gear set and the rotation speed is generally indicated in the formula:
(Z?_R +Z?_S )N?_C =Z?_R N?_R +Z?_S N?_S : (1)

Meaning of symbols
1. Z: Number of teeth
2. N: Rotation speed
3. R: Internal gear
4. S: Sun gear
5. C: Planetary carrier (pinion gear)
6. ?: Unit symbol

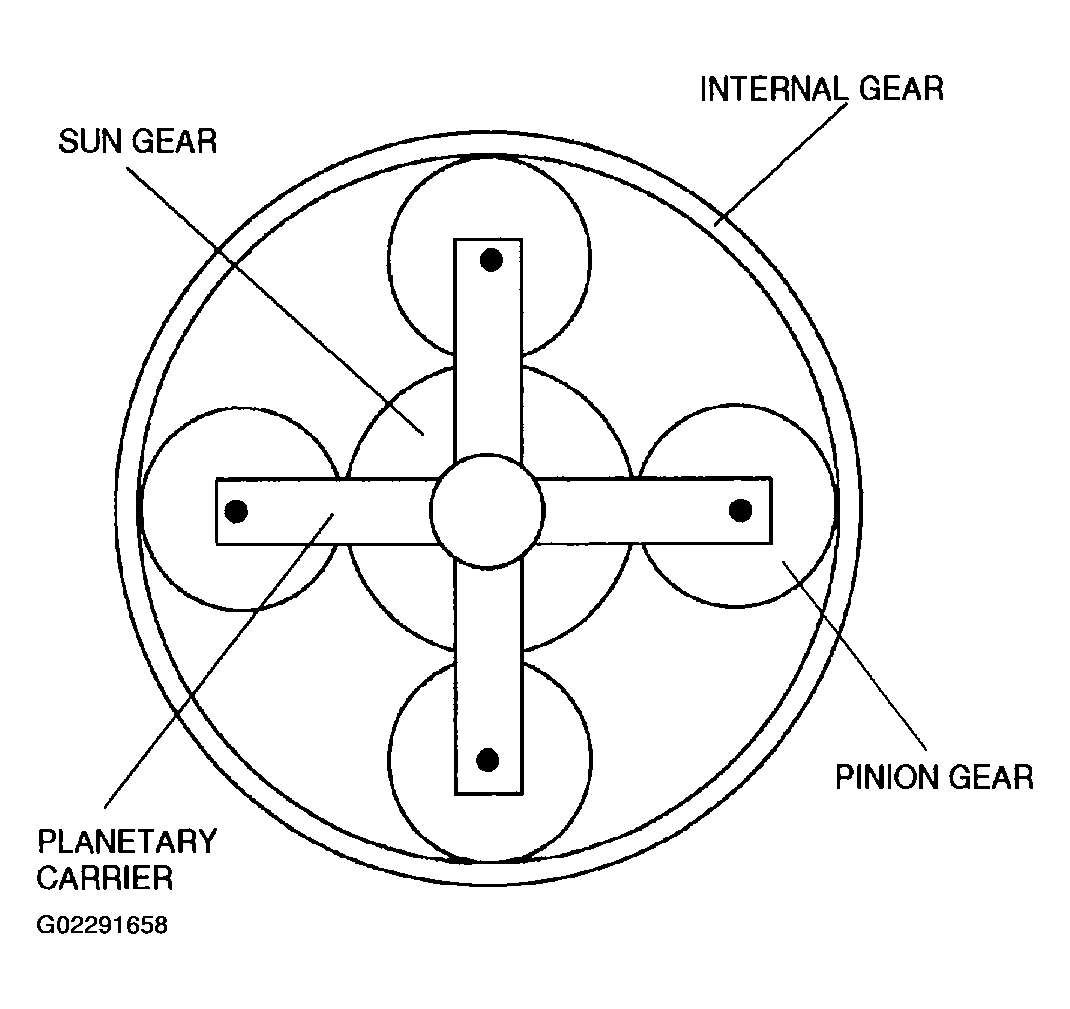

  Fig 1: Identifying Planetary Gear Components
  Courtesy of MAZDA MOTORS CORP.
