Oil Seal Assembly Note

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the oil seal in the transaxle case using the SSTs  .

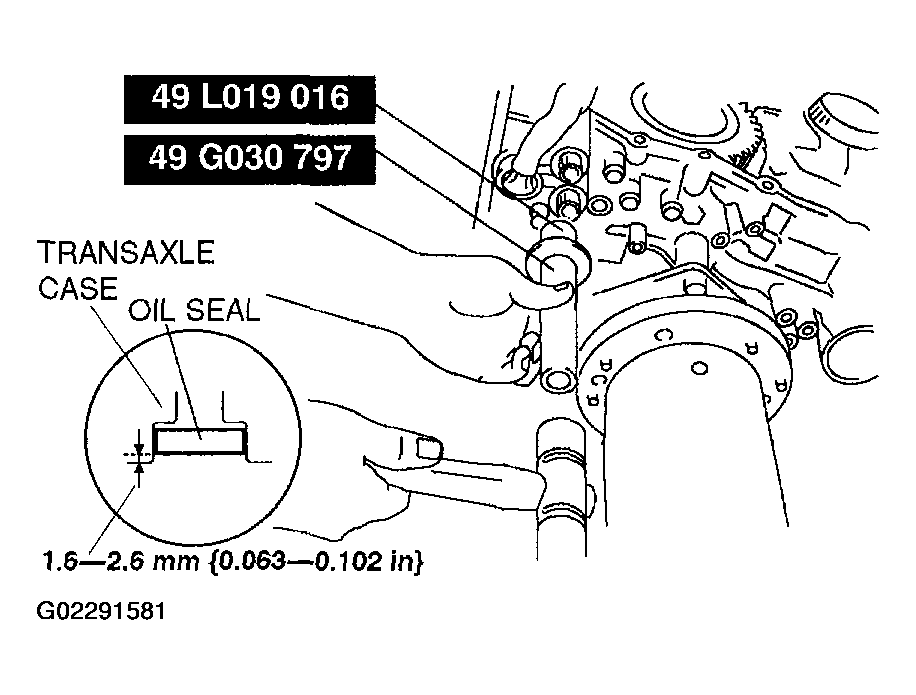

    Fig 1: Installing Oil Seal In Transaxle Case
    G02291581Courtesy of MAZDA MOTORS CORP.
