Output Gear Bearing Preload

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Install the output gear component into the transaxle case. See AUTOMATIC TRANSAXLE ASSEMBLY .
Set the SST on the output gear component as shown in the figure.

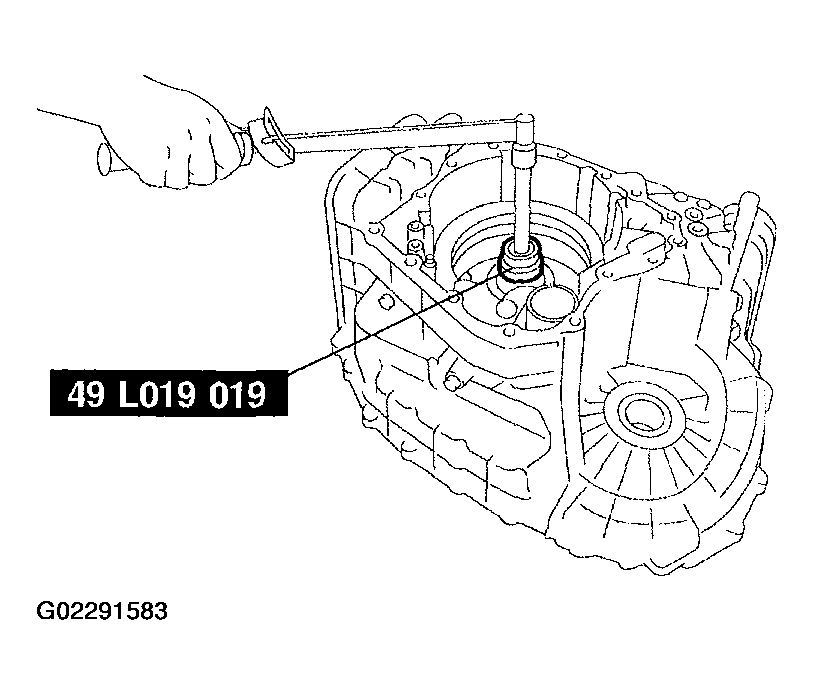

Fig 1: Installing SST On Output Gear Component
Courtesy of MAZDA MOTORS CORP.
Verify that the preload scale reading is within the specification.
- If not as specified, replace the output gear.
Preload

0.63-1.30 N.m {6.4-13.3 kgf.cm, 5.6-11.5 in.lbf}
Remove the SST and the output gear component.
