Oil Pump Cover Disassembly Note

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove mounting bolts evenly in the pattern shown and remove the oil pump cover from the oil pump housing.

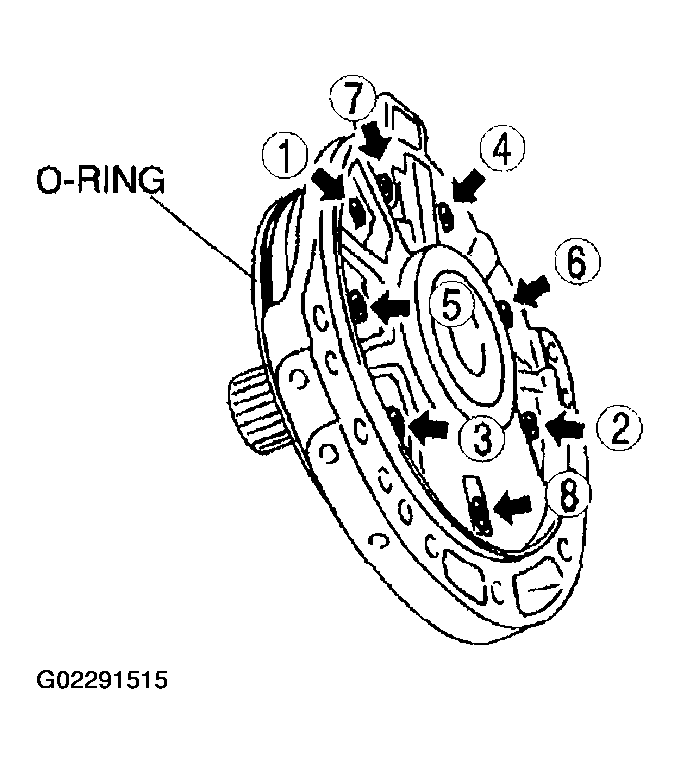

    Fig 1: Oil Pump Cover Bolt Removal Sequence
    G02291515Courtesy of MAZDA MOTORS CORP.
