Assembly Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new oil seal to the oil pump housing using the SSTs  .
    Fig 1: Installing Oil Pump Housing Oil Seal
    G02291520Courtesy of MAZDA MOTORS CORP.
  2. Apply ATF to the outer and inner rotors.
  3. Align the marks and install the outer and inner rotors.
  4. Install the outer and inner rotors to the oil pump housing.
    Fig 2: Installing Outer & Inner Rotors
    G02291521Courtesy of MAZDA MOTORS CORP.
  5. Install the bolts securing the oil pump housing as shown in the figure.

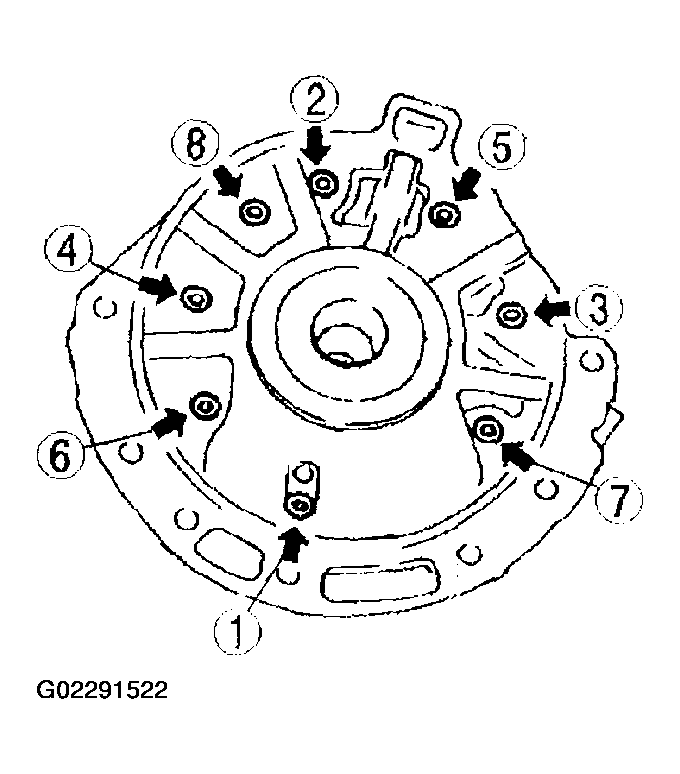

    Fig 3: Oil Pump Housing Bolt Tightening Sequence
    G02291522Courtesy of MAZDA MOTORS CORP.

    Tightening Torque

    6.9-11.0 N.m {0.7-1.1 kgf.m, 5.1-7.9 ft.lbf}

  6. Install a new O-ring to the oil pump housing.
