Clutch Operation
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Set the low clutch onto the transaxle case.

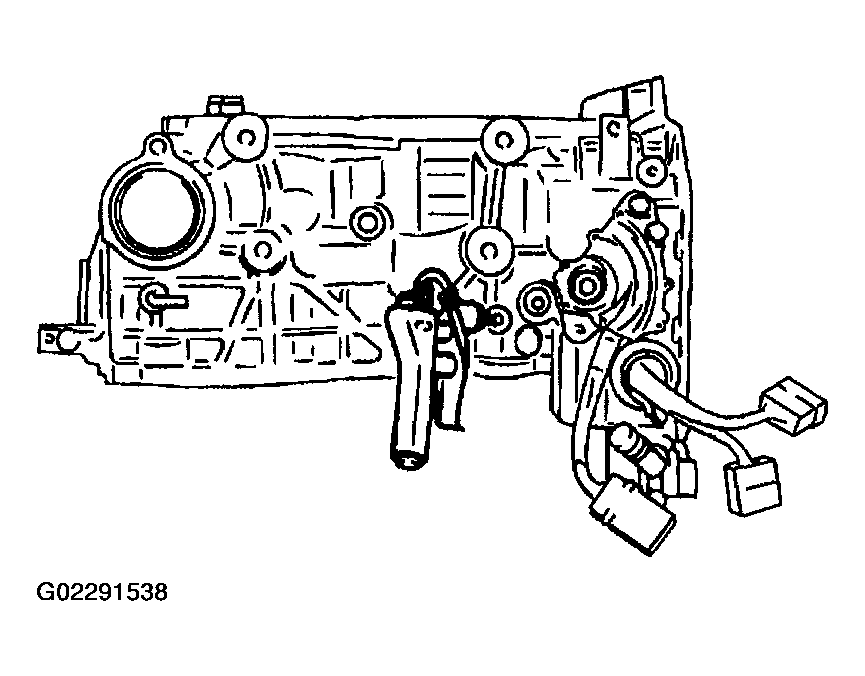

- Inspect the clutch operation by applying compressed air through the fluid passages shown.
- If not as specified, replace parts where necessary.
Air pressure
390 kPa {4.0 kgf/cm 2 , 57 psi} max.
WARNING:
Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eye wear whenever using compressed air.
CAUTION:
Applying compressed air to the assembled clutch pack for longer than 3 seconds at a time will damage the seal. Do not apply compressed air for more than the aforementioned time when testing the system.
