Snap Ring Disassembly Note

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Depress the spring retainer only enough to remove the snap ring. Overpressing will damage the retainer component edges.
  1. Install the SSTs  in the clutch drum as shown.
  2. Remove the snap ring.

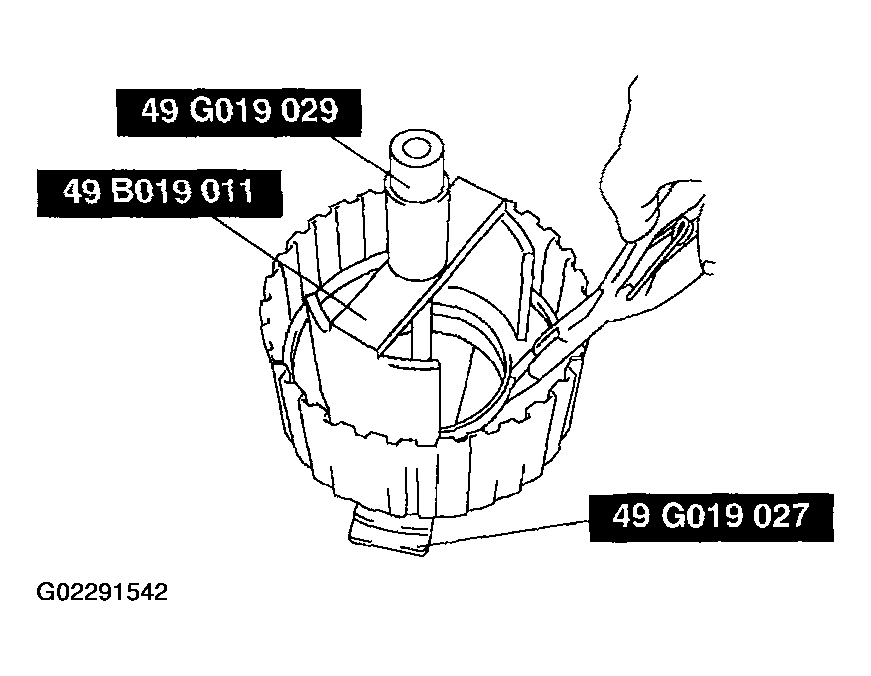

    Fig 1: Removing Snap Ring
    G02291542Courtesy of MAZDA MOTORS CORP.
  3. Remove the SSTs  .
  4. Remove the cancel force cover.
  5. Remove the O-ring from cancel force cover.
  6. Remove the return spring.
