Assembly Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a coat of ATF to new O-rings, then install them to the piston.
    Fig 1: Installing O-Ring
    G02291556Courtesy of MAZDA MOTORS CORP.
    2. NOTE: After installing the drum, ensure that the piston rotates smoothly by hand. If not, the O-ring may be caught.
  2. Apply a coat of ATF to inside of the clutch drum, then install the piston while rotating it by hand.
  3. Install the return spring.
  4. Position the spring retainer.
    5. CAUTION: Depress the spring retainer only enough to install the snap ring. Overpressing will damage the retainer component edges.
    Fig 2: Installing Snap Ring
    G02291557Courtesy of MAZDA MOTORS CORP.
  5. Install the SSTs  in the clutch drum as shown.
  6. Install the snap ring.
  7. Remove the SSTs  .
  8. Install the drive plates and driven plates in the order as shown in the figure.

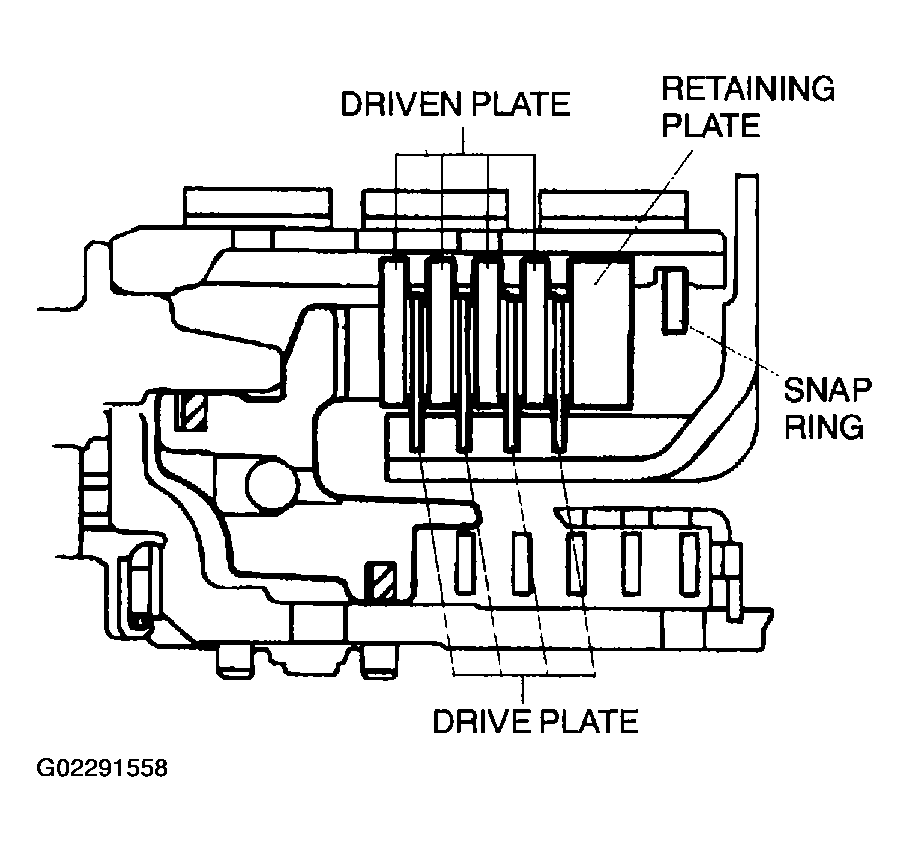

    Fig 3: Installing Drive & Driven Plates
    G02291558Courtesy of MAZDA MOTORS CORP.
  9. Install the retaining plate.
  10. Install the snap ring.
  11. Place the direct clutch upside down, then install the one-way clutch and retainer.
  12. Install the snap ring.
    Fig 4: Installing One-Way Clutch & Retainer
    G02291559Courtesy of MAZDA MOTORS CORP.
