R Position

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

While in R position also, the valve operates by the balance of reduction brake operation pressure (38) and back pressure of accumulator control valve B (39), the same as when in the forward drive ranges. However, while in the R position, since the line pressure (reverse clutch operation pressure) is applied to the oil passage (4), the line pressure is applied to the reduction brake irrelevant of the valve motion.

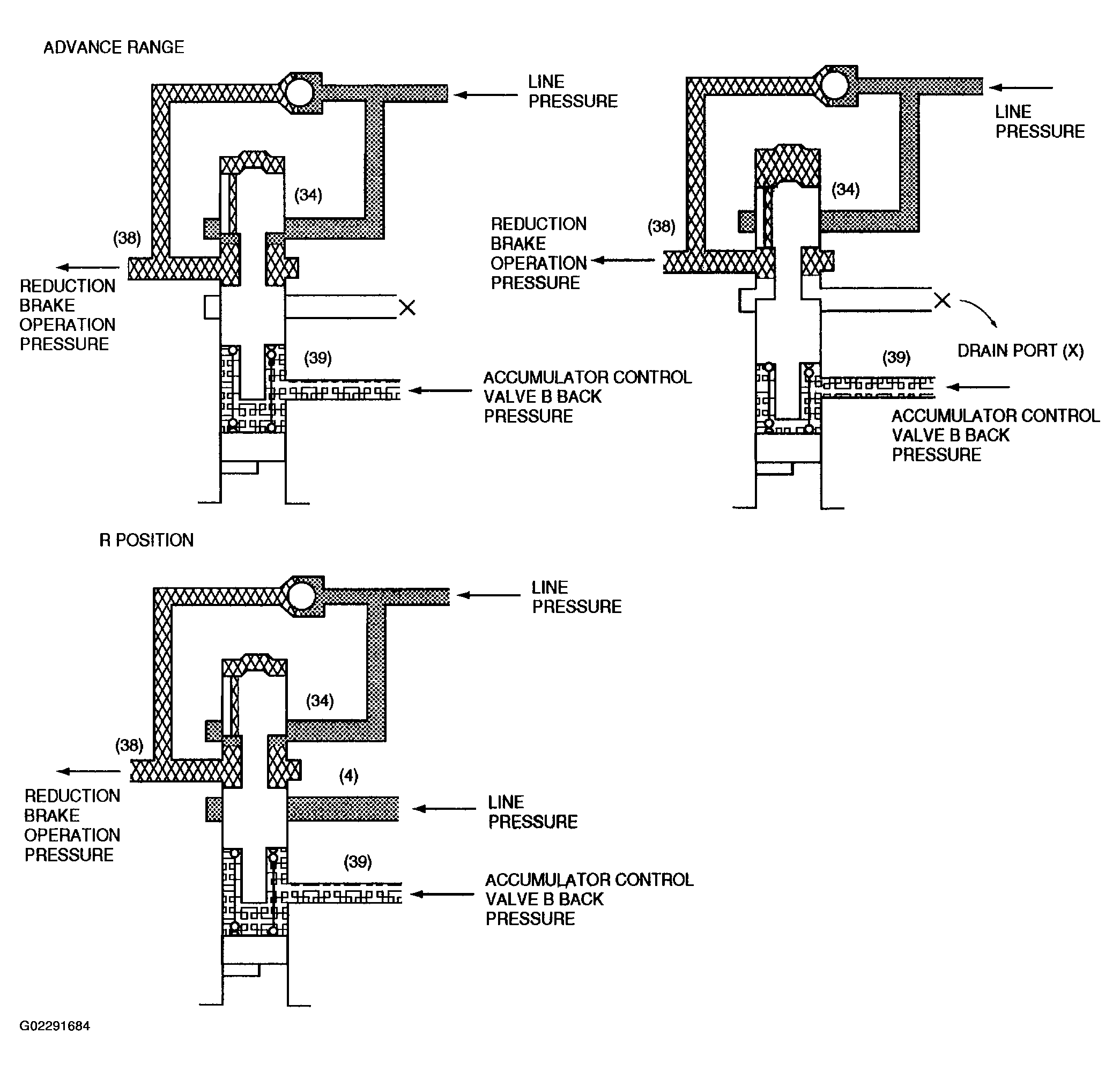

Fig 1: Identifying Reduction Reducing Valve Operation
Courtesy of MAZDA MOTORS CORP.
