Selecting N Position To D Range
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

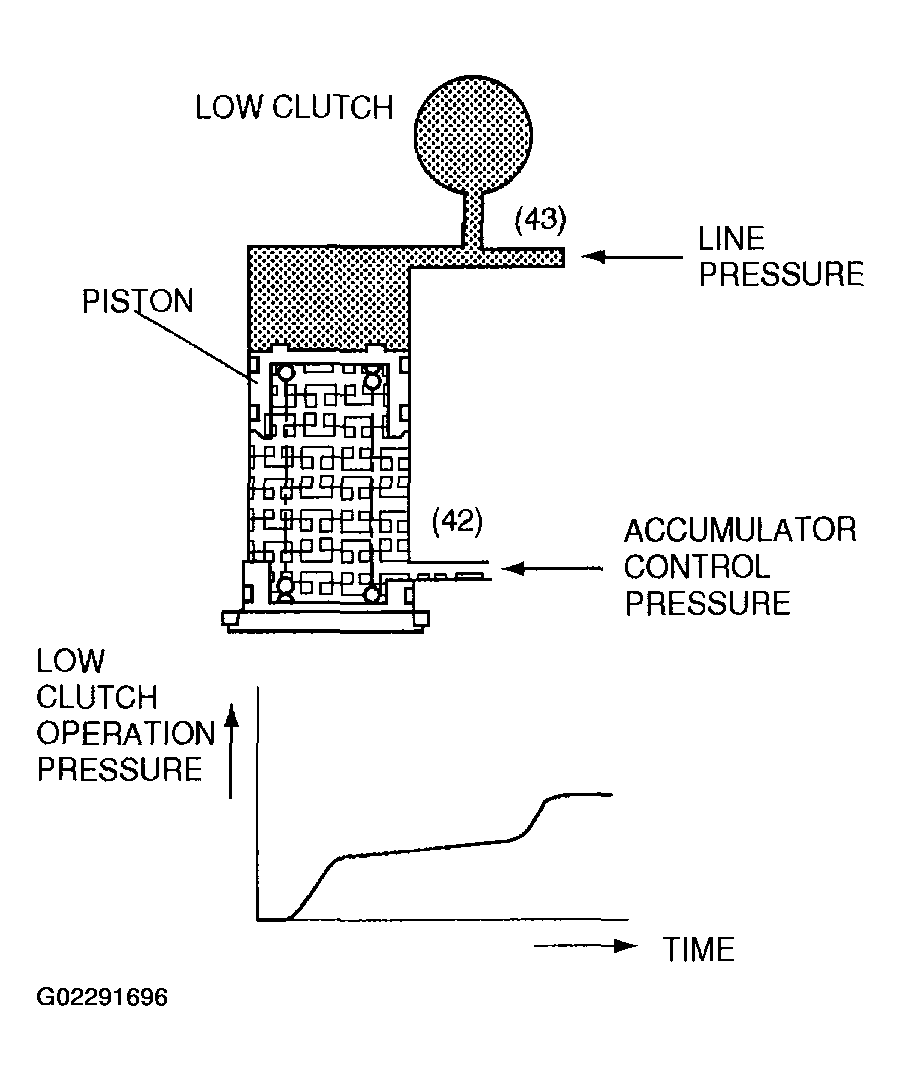

- While in the N position, accumulator control pressure (42) is applied to the bottom end of the accumulator control piston and pushes the piston upward.
- When D range is selected from the N position, line pressure (43) is applied to the low clutch and low clutch accumulator. When line pressure (43) is applied to the upper part of the accumulator piston, the piston begins to move downward. While the piston is moving, line pressure (43) is pressurized gradually and the shock from the low clutch locking will decrease.
