Component Descriptions

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

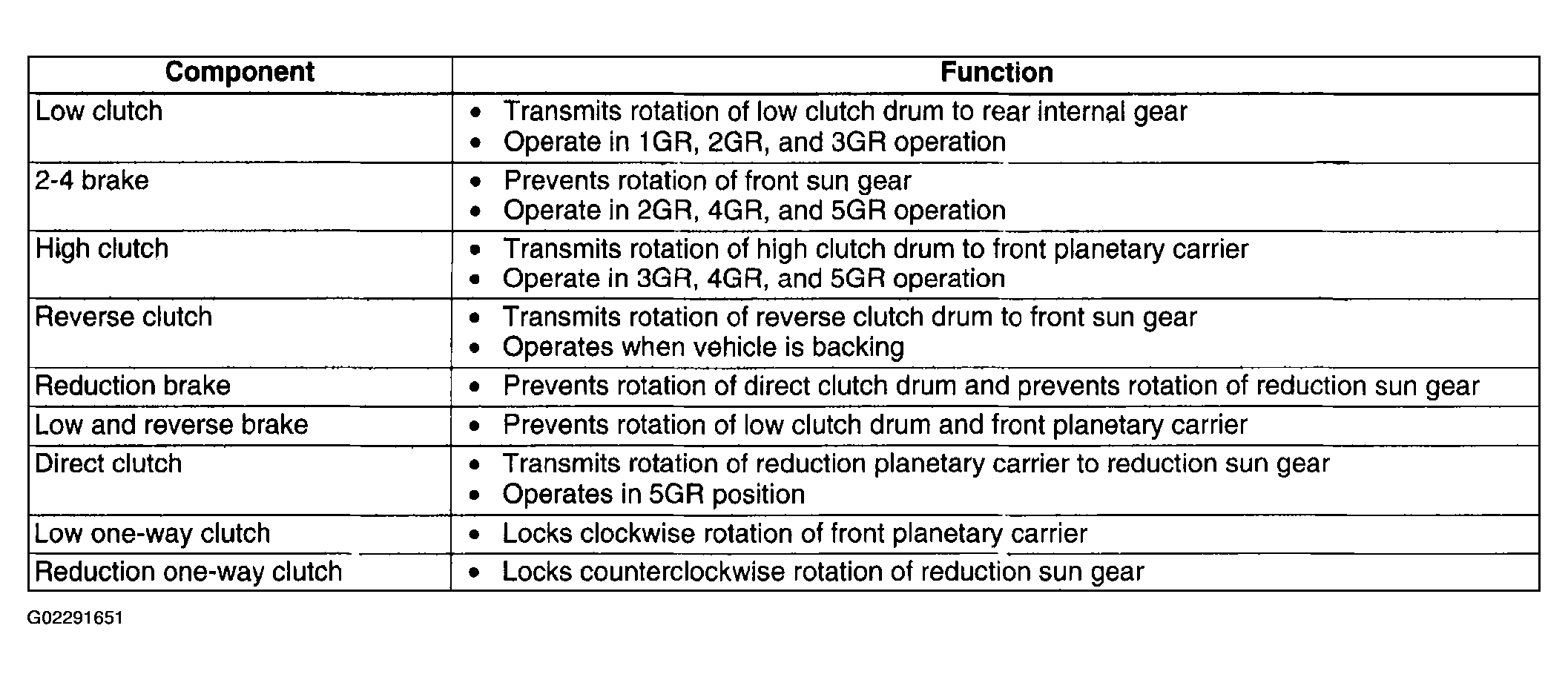

Fig 1: Component Function Chart
G02291651Courtesy of MAZDA MOTORS CORP.
NOTE: All rotations are viewed from the side cover.

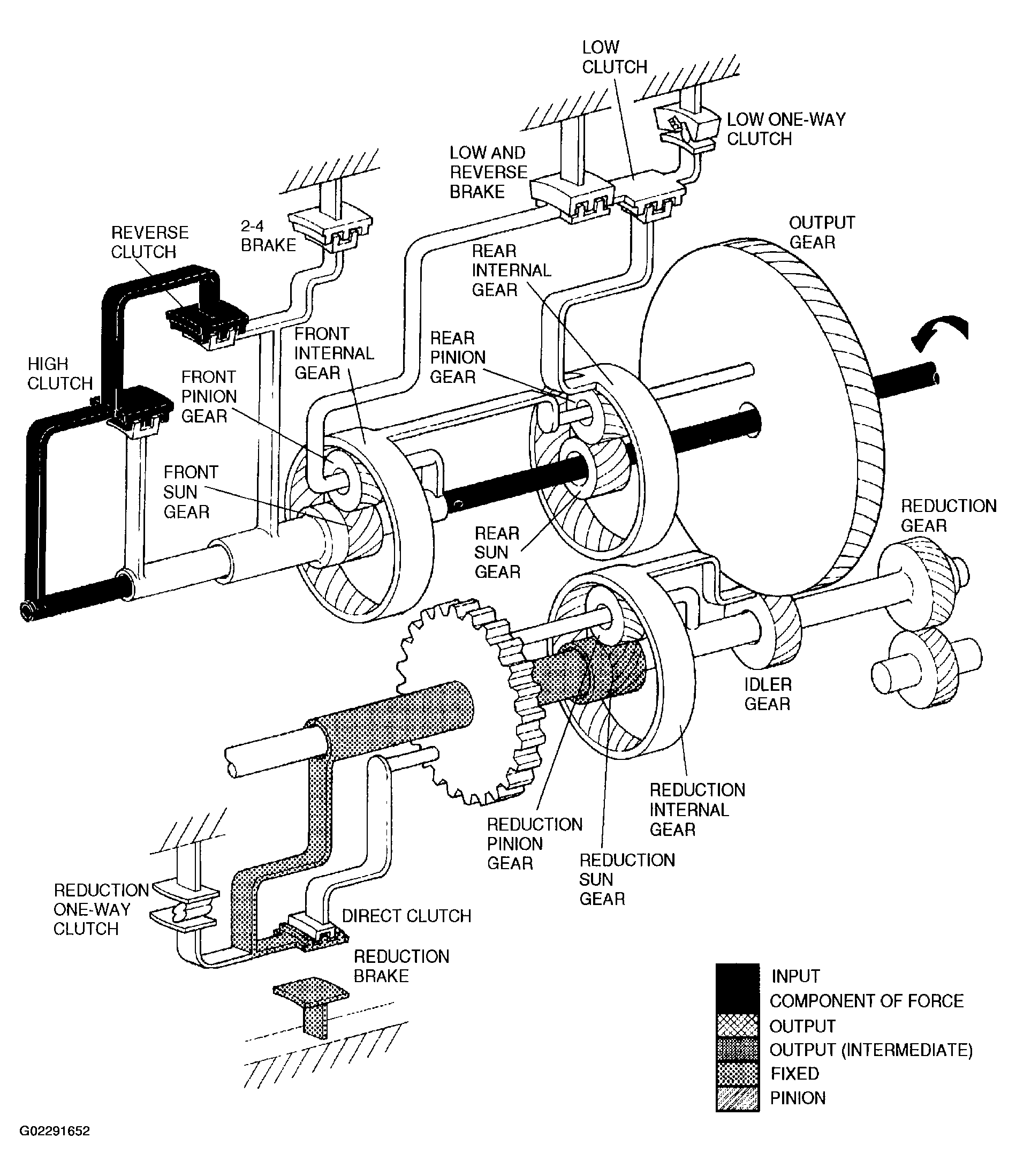

Fig 2: Identifying Powertrain Power Flow
G02291652Courtesy of MAZDA MOTORS CORP.
