Automatic Transaxle Assembly: Components: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

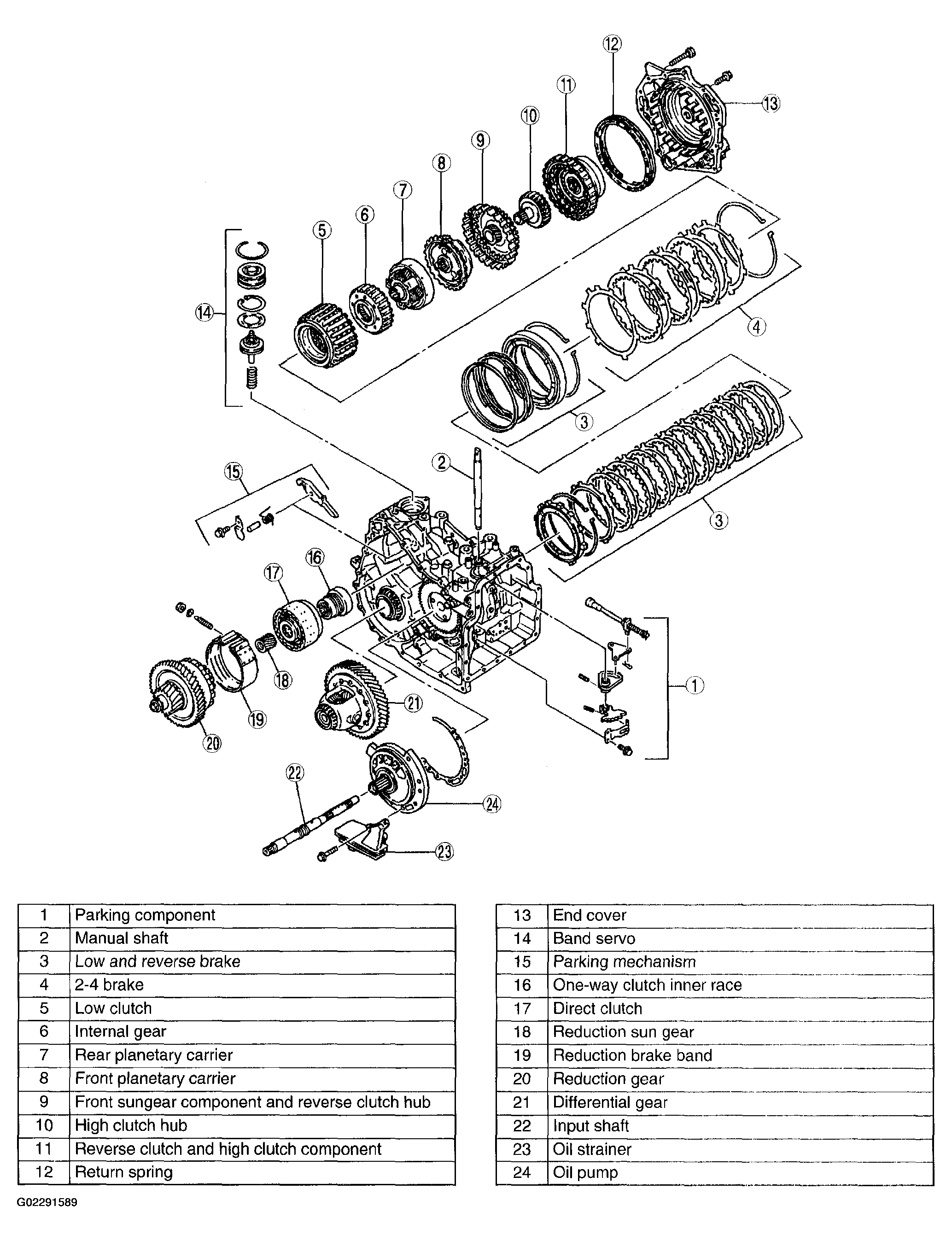

Fig 1: Exploded View Of Internal Components
G02291589Courtesy of MAZDA MOTORS CORP.

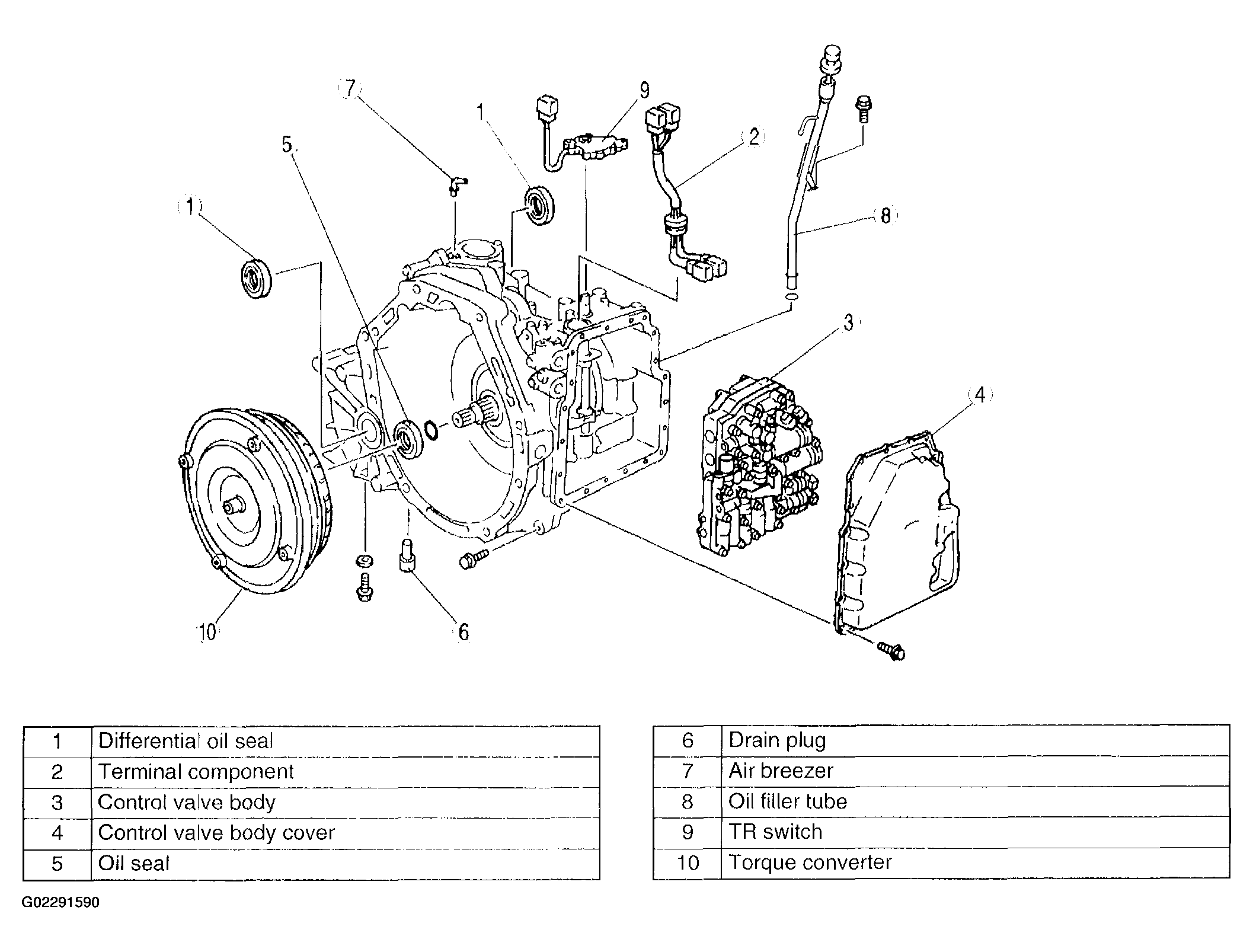

Fig 2: Exploded View Of External Components
G02291590Courtesy of MAZDA MOTORS CORP.
