Low And Reverse Brake

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the snap ring groove width .

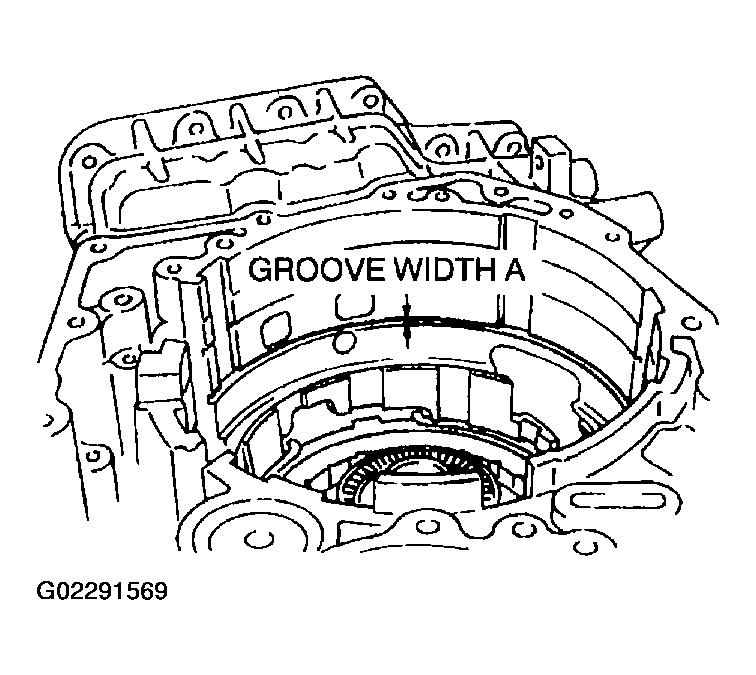

    Fig 1: Measuring Snap Ring Groove Width
    G02291569Courtesy of MAZDA MOTORS CORP.
  2. Measure the snap ring thickness .
  3. Calculate the clearance using the following formula.

    Clearance = A - B

    0.0 - 0.2 mm {0.000 - 0.008 in}

  4. If the clearance is out of specification, select a suitable snap ring.
    Fig 2: Selectable Snap Ring Thickness
    G02291568Courtesy of MAZDA MOTORS CORP.
  5. NOTE: The low one-way clutch must be installed with the groove facing upward.
    NOTE: The snap ring opening must be positioned as shown in the figure.

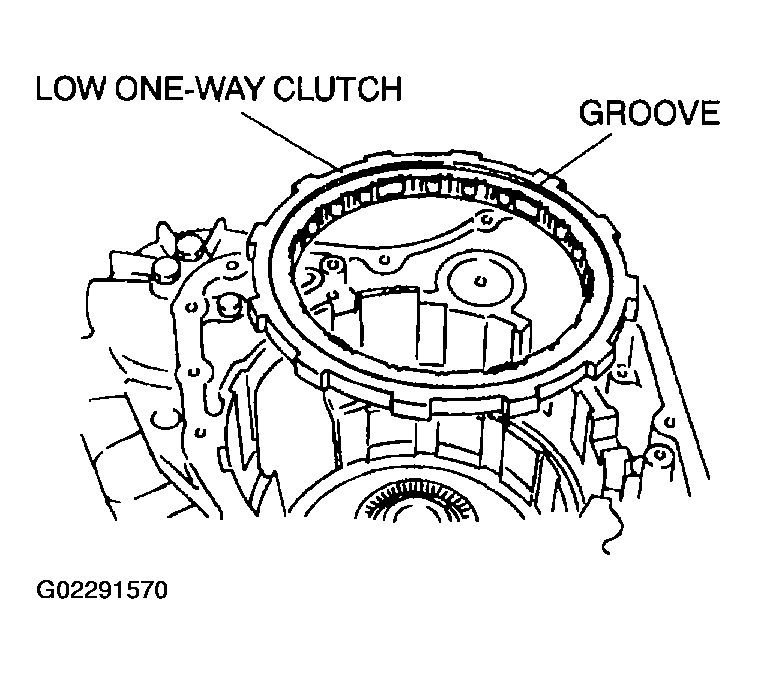

    Fig 3: Installing Low One-Way Clutch
    G02291570Courtesy of MAZDA MOTORS CORP.
  6. Install the low one-way clutch.
  7. Install the snap ring.
    Fig 4: Installing Low One-Way Clutch Snap Ring
    G02291571Courtesy of MAZDA MOTORS CORP.
  8. Install the retaining plates, drive plates, driven plates, dished plate, and spring retainer.

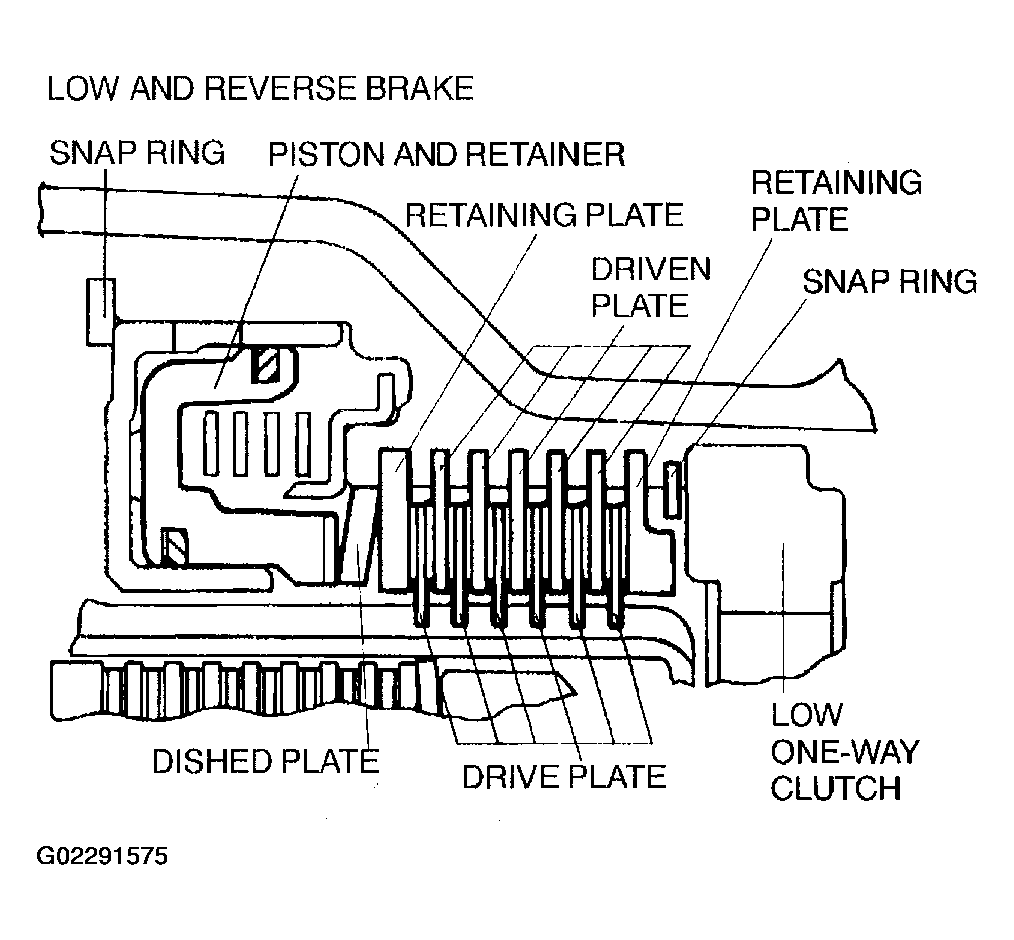

    Fig 5: Installing Retaining Plates, Drive Plates, Driven Plates, Dished Plate & Spring Retainer
    G02291575Courtesy of MAZDA MOTORS CORP.
  9. Install the return spring.
  10. NOTE: When installing the piston and retainer, align the oil holes as shown.

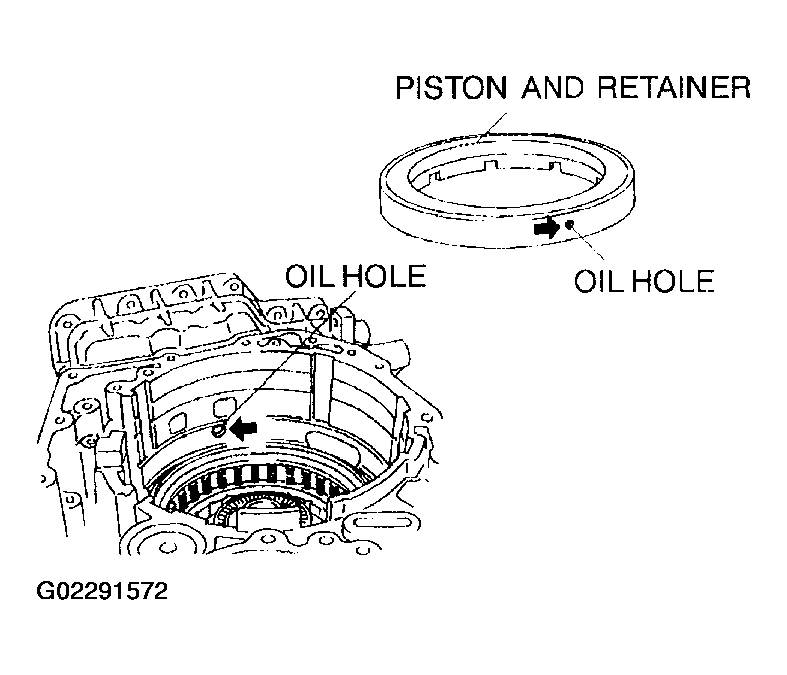

    Fig 6: Aligning Piston & Retainer Oil Holes
    G02291572Courtesy of MAZDA MOTORS CORP.
  11. Install the piston and retainer.
  12. CAUTION: Depress the spring retainer only enough to remove the snap ring. Overpressing will damage the retainer assembly edges.

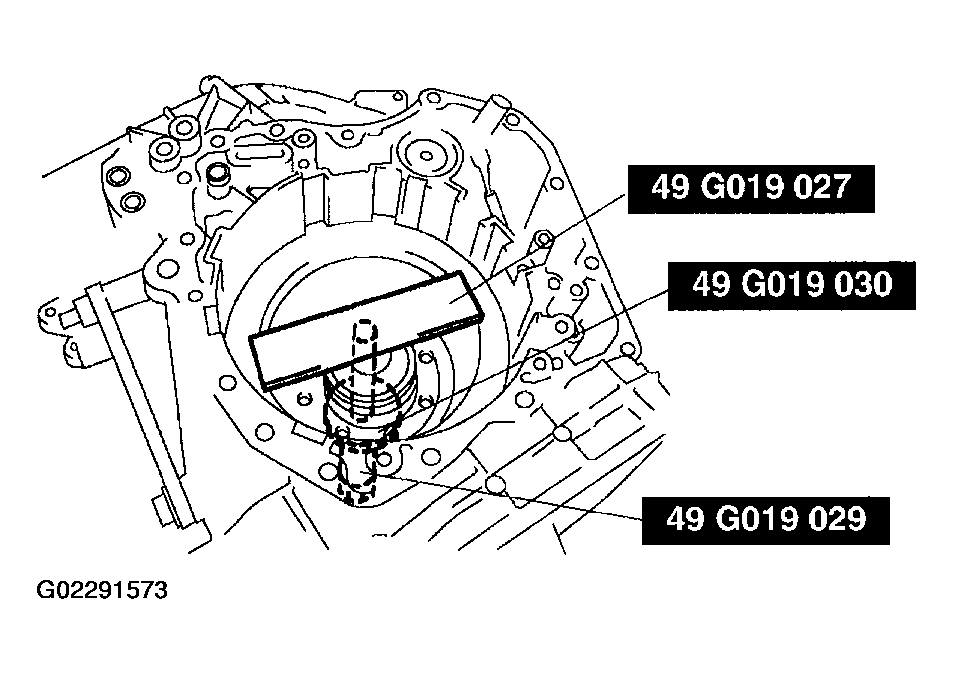

    Fig 7: Installing Snap Ring
    G02291573Courtesy of MAZDA MOTORS CORP.
  13. Install the SSTs  in the transaxle case as shown.
  14. NOTE: The snap ring opening must be positioned as shown in the figure.

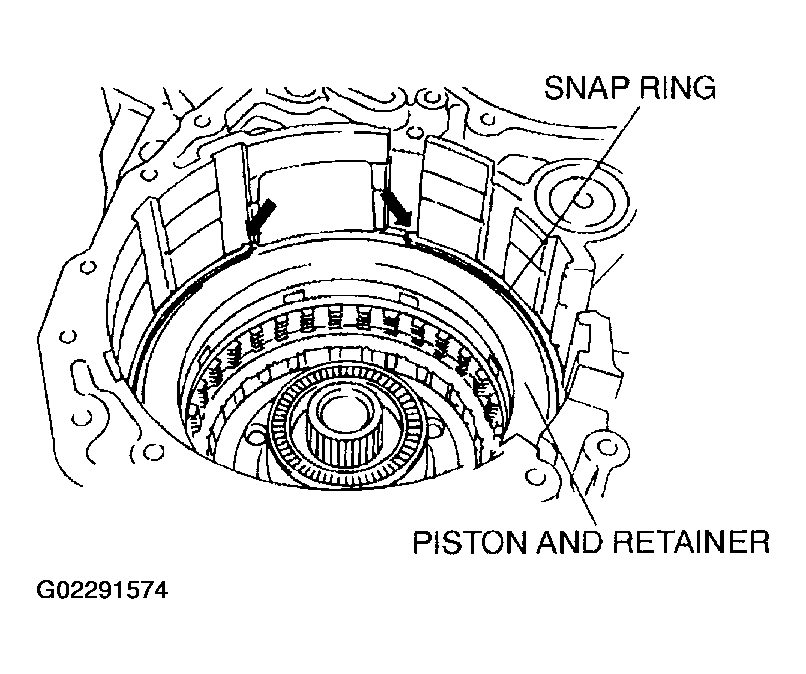

    Fig 8: Positioning Snap Ring
    G02291574Courtesy of MAZDA MOTORS CORP.
  15. Install the snap ring.
  16. Remove the SSTs  .
