Air Cleaner Insulator Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the air cleaner insulator has been installed.
- If it has not been installed, install an air cleaner insulator.

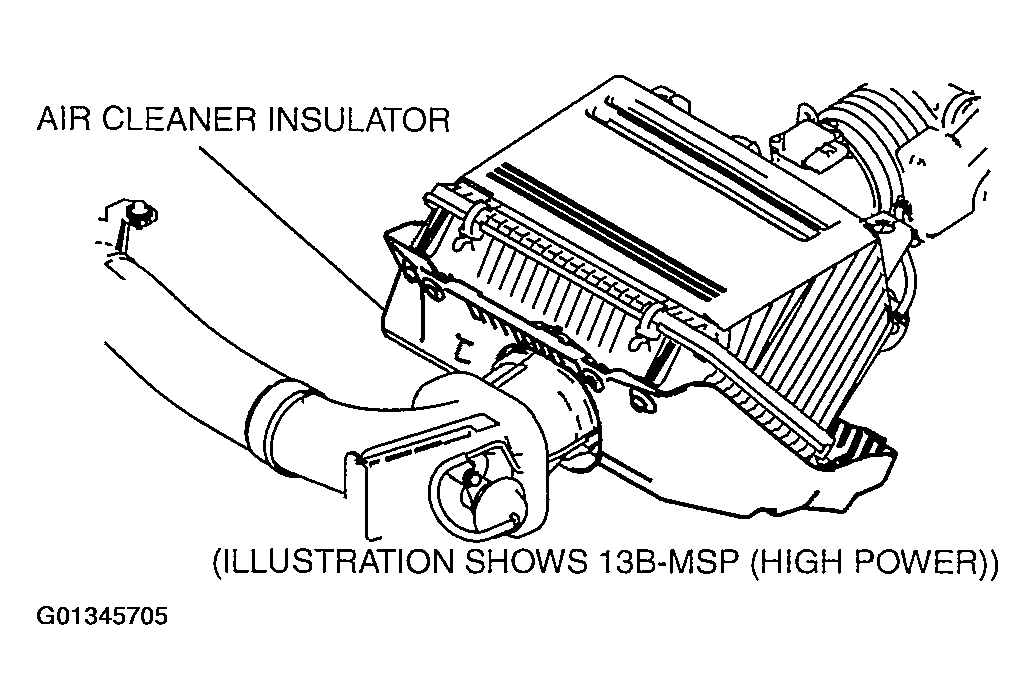

Fig 1: Inspecting Air Cleaner Insulator
Courtesy of MAZDA MOTORS CORP.
