Circuit Open/Short Inspection: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the following wiring harnesses for an open or short circuit.

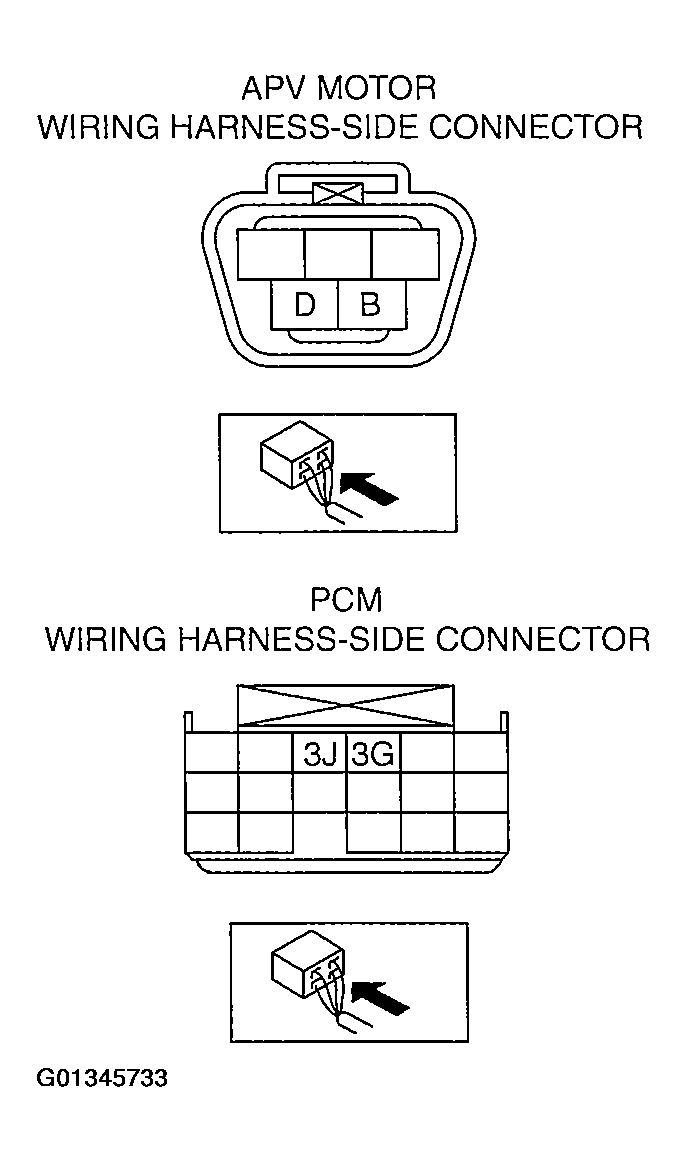

    Fig 1: Identifying APV Motor & PCM Connector Terminals
    G01345733Courtesy of MAZDA MOTORS CORP.
