Oil Pressure Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.

Disconnect the connector, and remove the oil pressure switch.
Connect the SST to the oil pressure switch installation hole from underneath the vehicle.
Warm up the engine to normal operating temperature.
Run the engine at the specified speed, and note the gauge readings.
- If not within the specification, inspect for the cause and repair or replace if necessary.

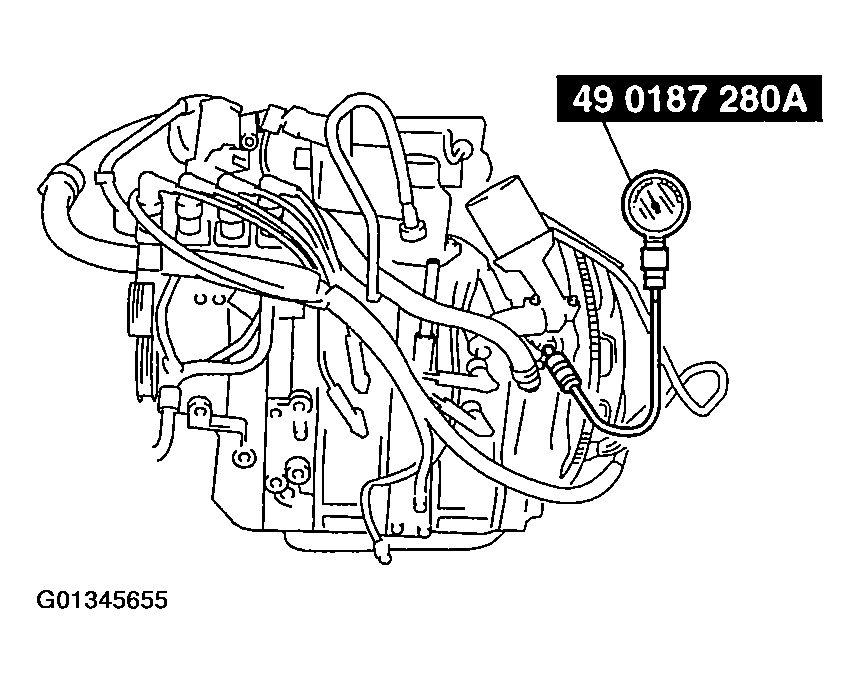

Fig 1: Checking Oil Pressure
Courtesy of MAZDA MOTORS CORP.
NOTE:
- The oil pressure can vary with oil viscosity and temperature.
Oil pressure (reference value)

350 kPa {3.57 kgf/cm ² , 50.8 psi} [3,000 RPM, Oil temperature: 100 °C {212 °F}]
Stop the engine and wait until it is cool.
Remove the SST.
CAUTION:
- Be sure there is no sealant between 1.0-2.0 mm {0.04-0.07 in} from the end of the oil pressure switch to prevent a possible operation malfunction.
Apply silicone sealant to the oil pressure switch threads.
Install the oil pressure switch.
Tightening torque

11.8-17.6 N.m {121-179 kgf.cm, 105-155 in.lbf}
Connect the connector.
Start the engine and confirm that there is no oil leakage.

Fig 2: Applying Silicone Sealant To Oil Pressure Switch Threads
Courtesy of MAZDA MOTORS CORP.
- If there is any oil leakage, find the cause and repair or replace the applicable part.
