Oil Pan Component Installation Note
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Apply the silicon sealant in a single, unbroken line around the whole perimeter.
- Install the oil pan within 5 min after applying the silicone sealant.
- Using bolts with the seal adhering could cause cracks in the housing.
- Completely clean and remove any oil, dirt, sealant or other foreign material that may be adhering to the housing and oil pan.
- When reusing oil pan installation bolts, clean any old sealant from the bolts.

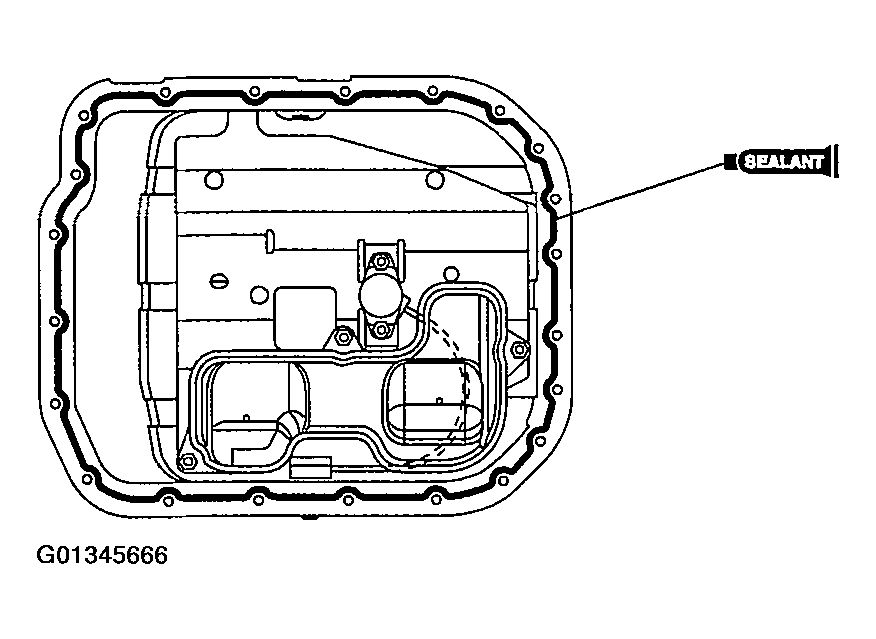

- Apply silicone sealant to areas shown. See Fig 2
.
Bead thickness
2.5-6.5 mm {0.10-0.26 in}
- Tighten the oil pan installation bolt.
Tightening torque
8.8-11.8 N.m {89.8-120.3 kgf.cm, 77.9-104.4 in.lbf}
