Counterweight Removal Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the locknut by locking the counterweight against rotation using the SST  .

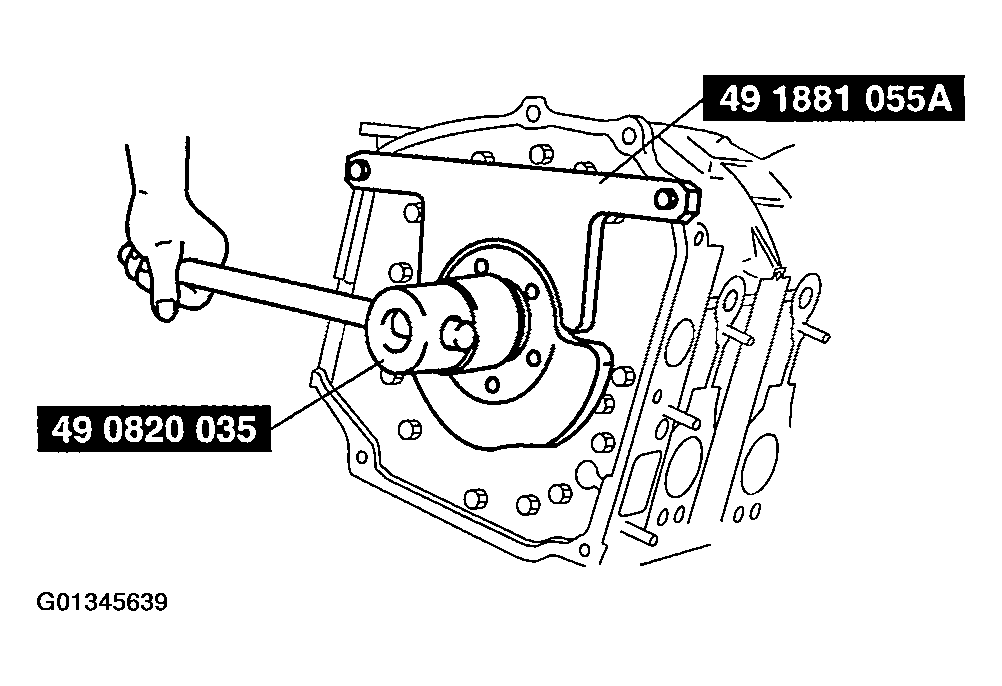

    Fig 1: Removing Locknut By Locking Counterweight Against Rotation
    G01345639Courtesy of MAZDA MOTORS CORP.
  2. Remove the counterweight using the SST  .
  3. Remove the SST  .

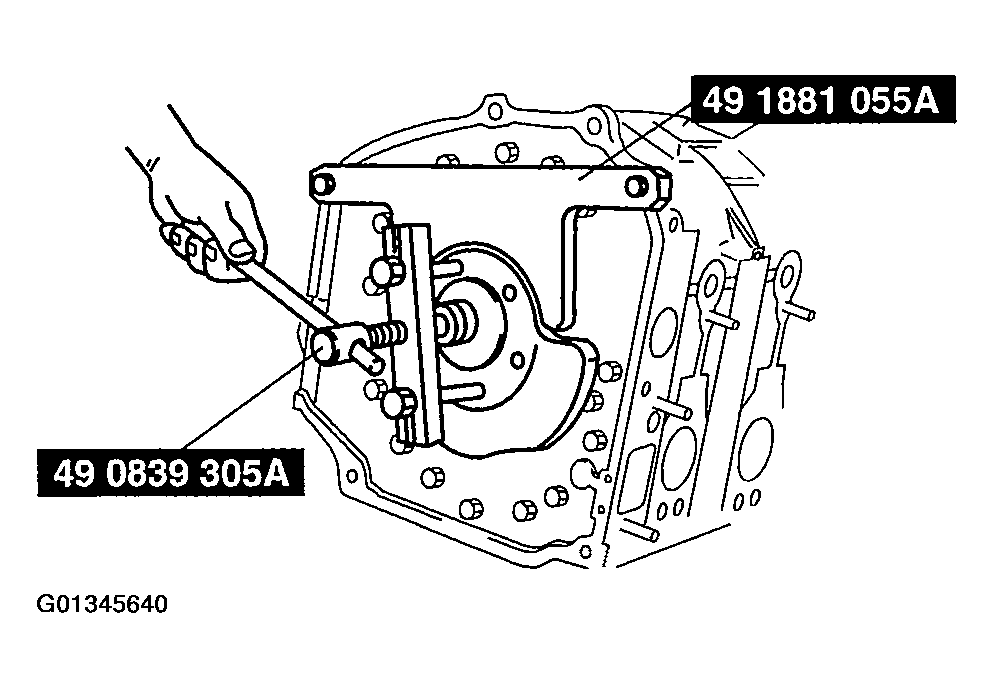

    Fig 2: Removing Counterweight
    G01345640Courtesy of MAZDA MOTORS CORP.
