Idle Speed Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The idling speed cannot be adjusted.
  • The WDS or equivalent is required to verify the idling speed.
  1. Complete the engine tune-up preparation. (See ENGINE TUNE-UP PREPARATION .)
  2. Turn the test mode on using the "test" simulation function.
  3. Verify that the engine speed using the RPM DATA MONITOR function is as follows.

    Standard

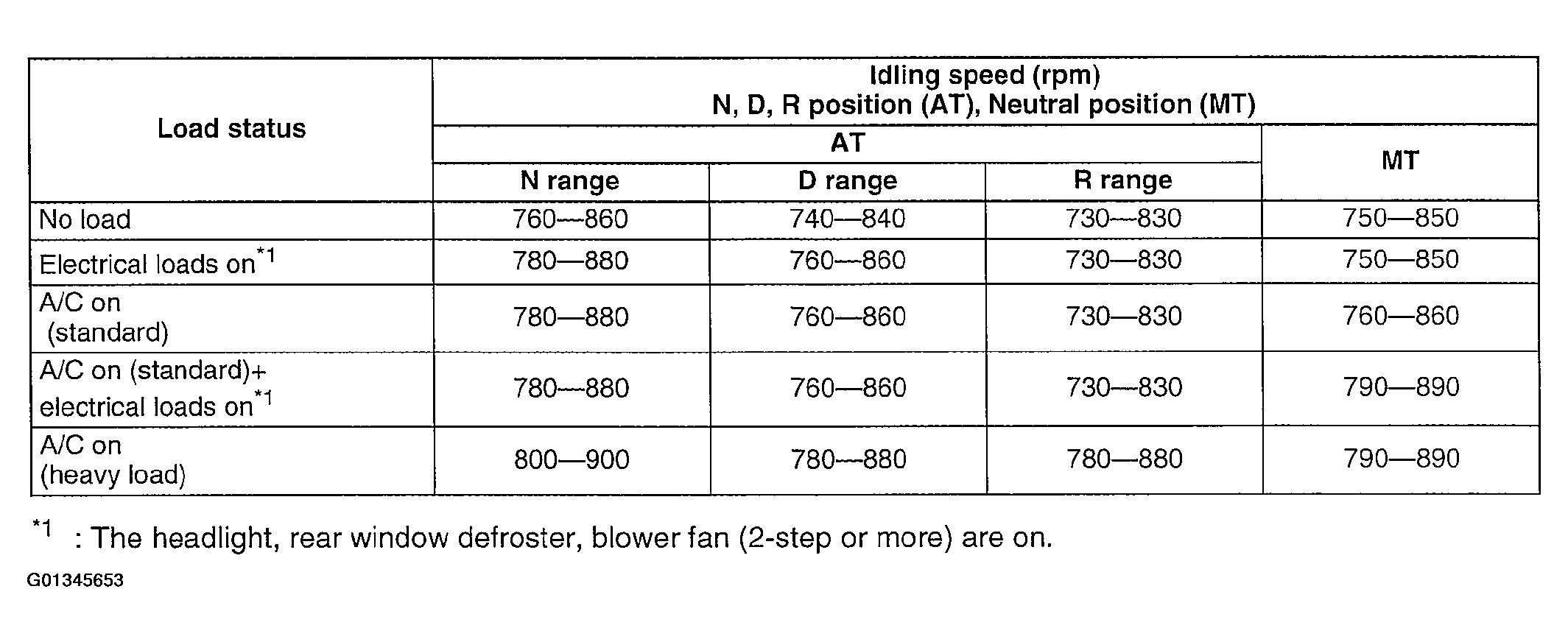

    Fig 1: Idle Speed Specifications
    G01345653Courtesy of MAZDA MOTORS CORP.
