No. 6 Cranks Normally But Will Not Start

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

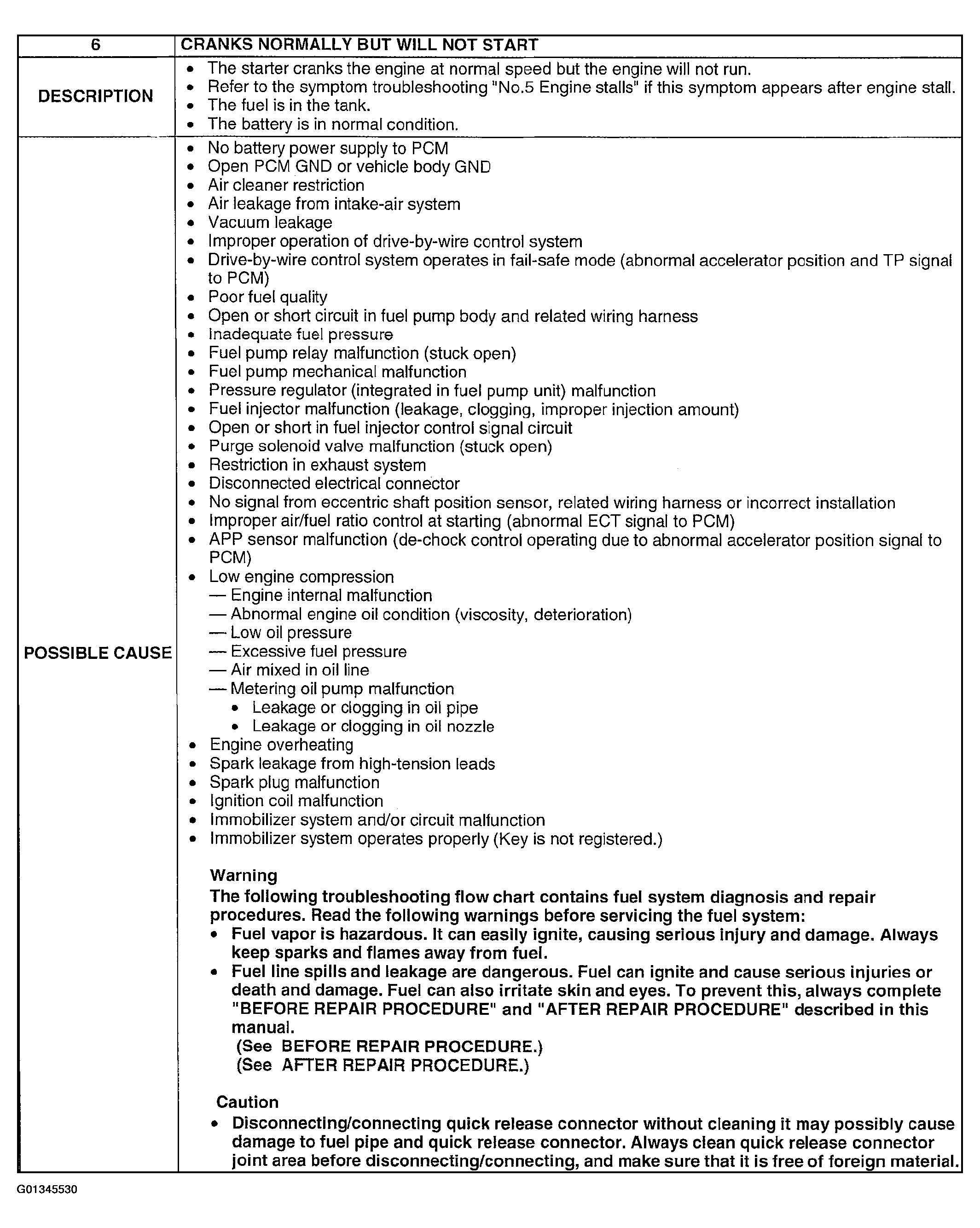

Fig 1: Possible Cause - No. 6 Cranks Normally But Will Not Start

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

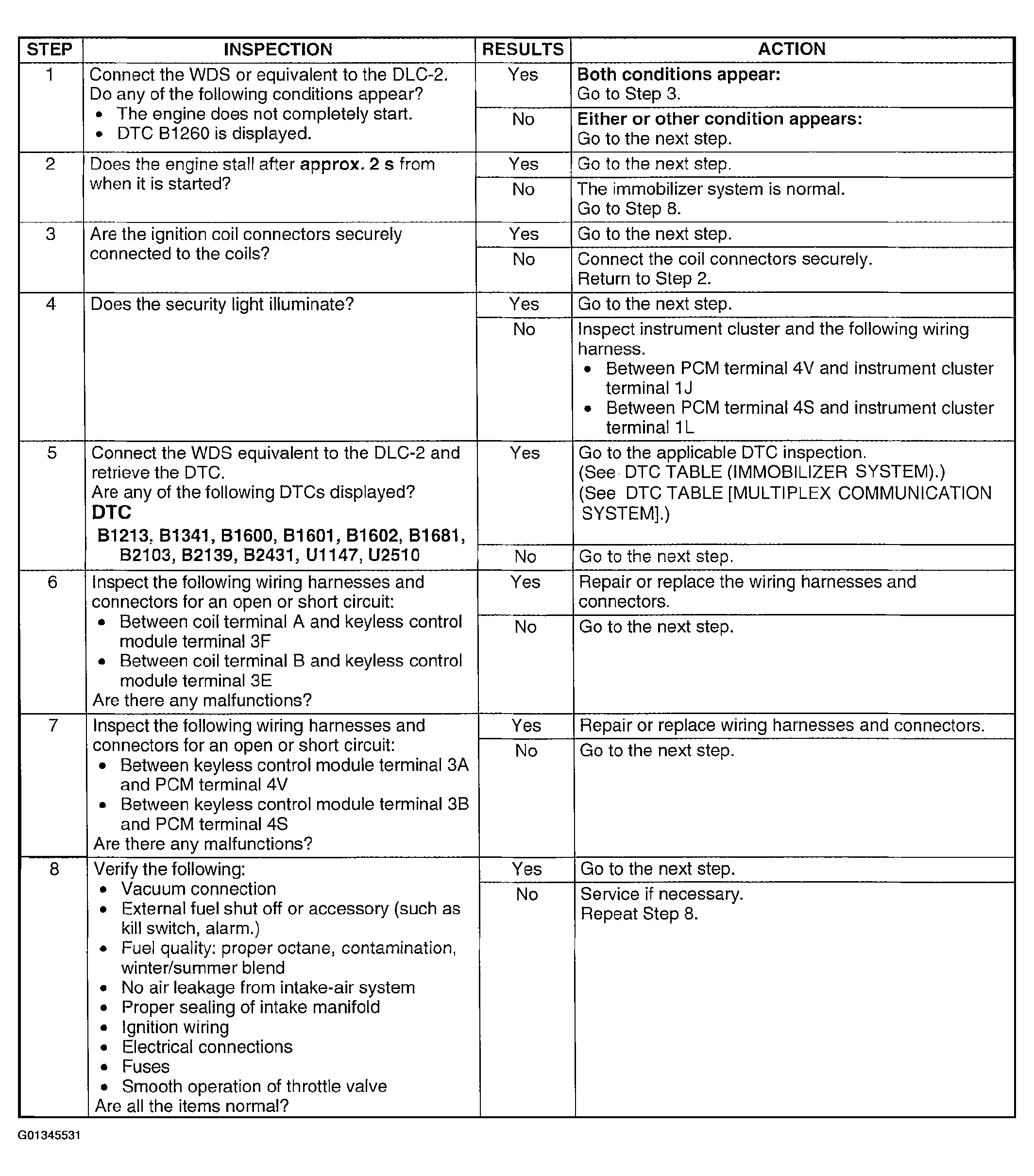

Fig 2: Diagnostic Procedure - No. 6 Cranks Normally But Will Not Start (Steps 1-8)

Courtesy of MAZDA MOTORS CORP.

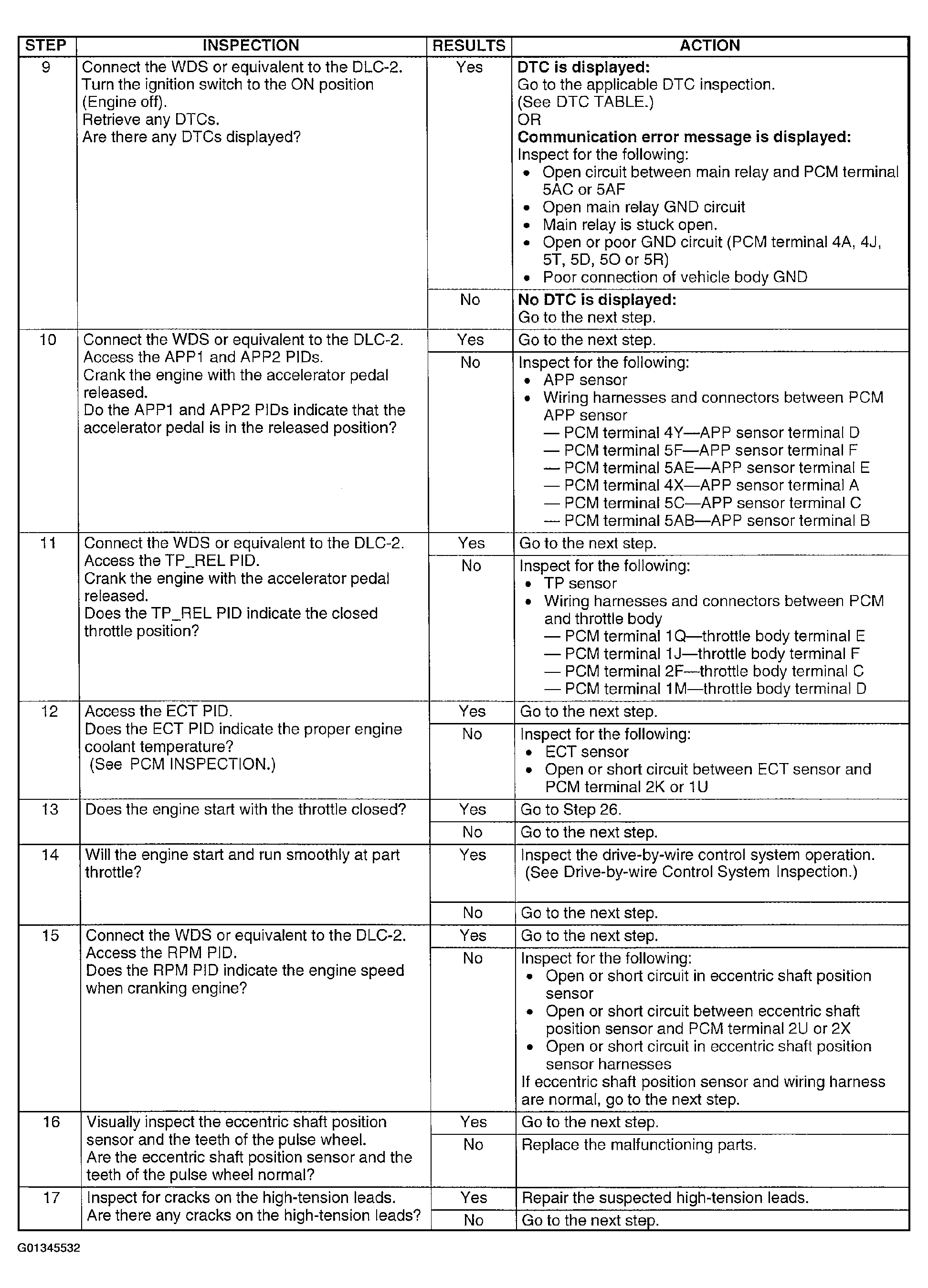

Fig 3: Diagnostic Procedure - No. 6 Cranks Normally But Will Not Start (Steps 9-17)

Courtesy of MAZDA MOTORS CORP.

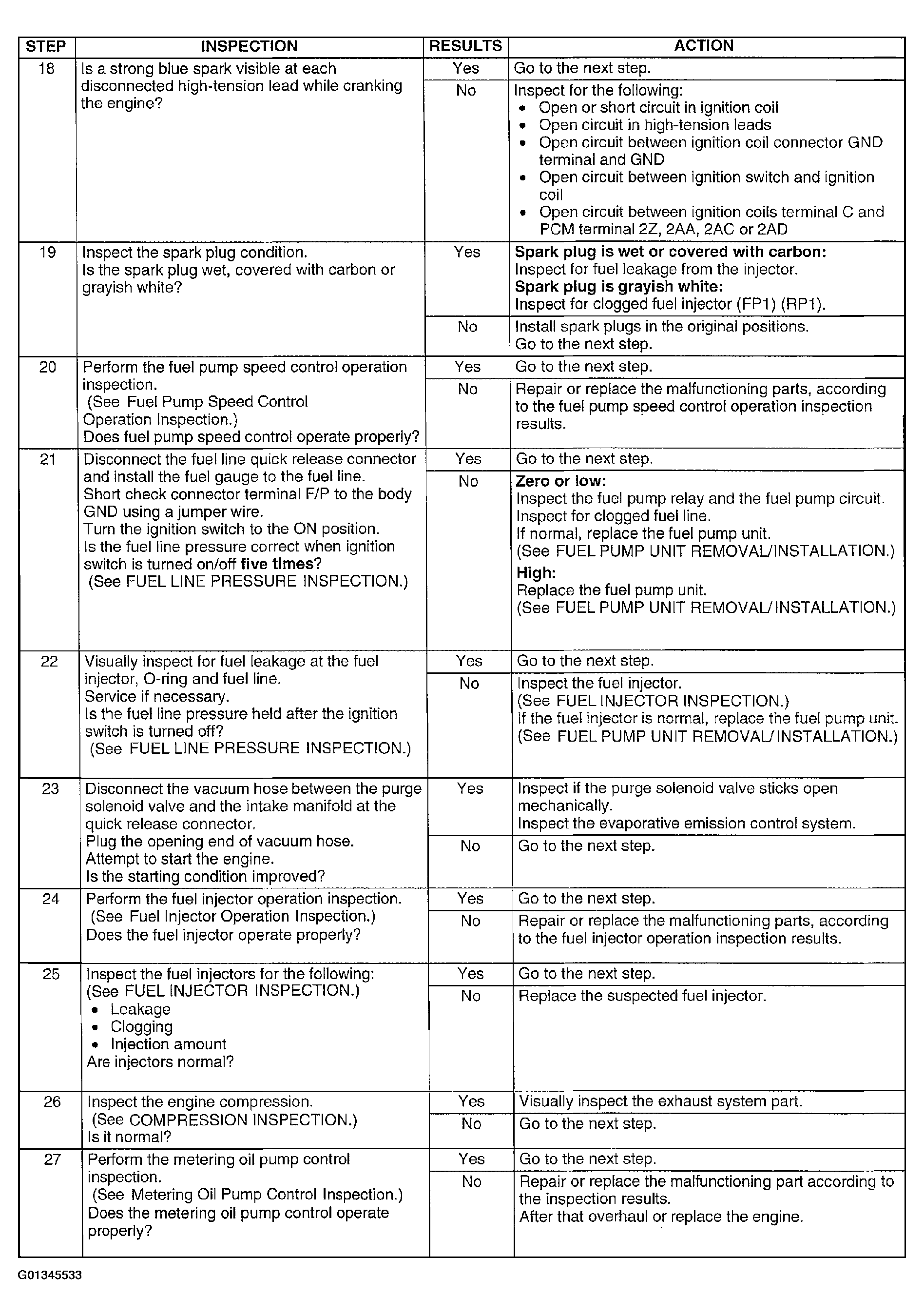

Fig 4: Diagnostic Procedure - No. 6 Cranks Normally But Will Not Start (Steps 18-27)

Courtesy of MAZDA MOTORS CORP.

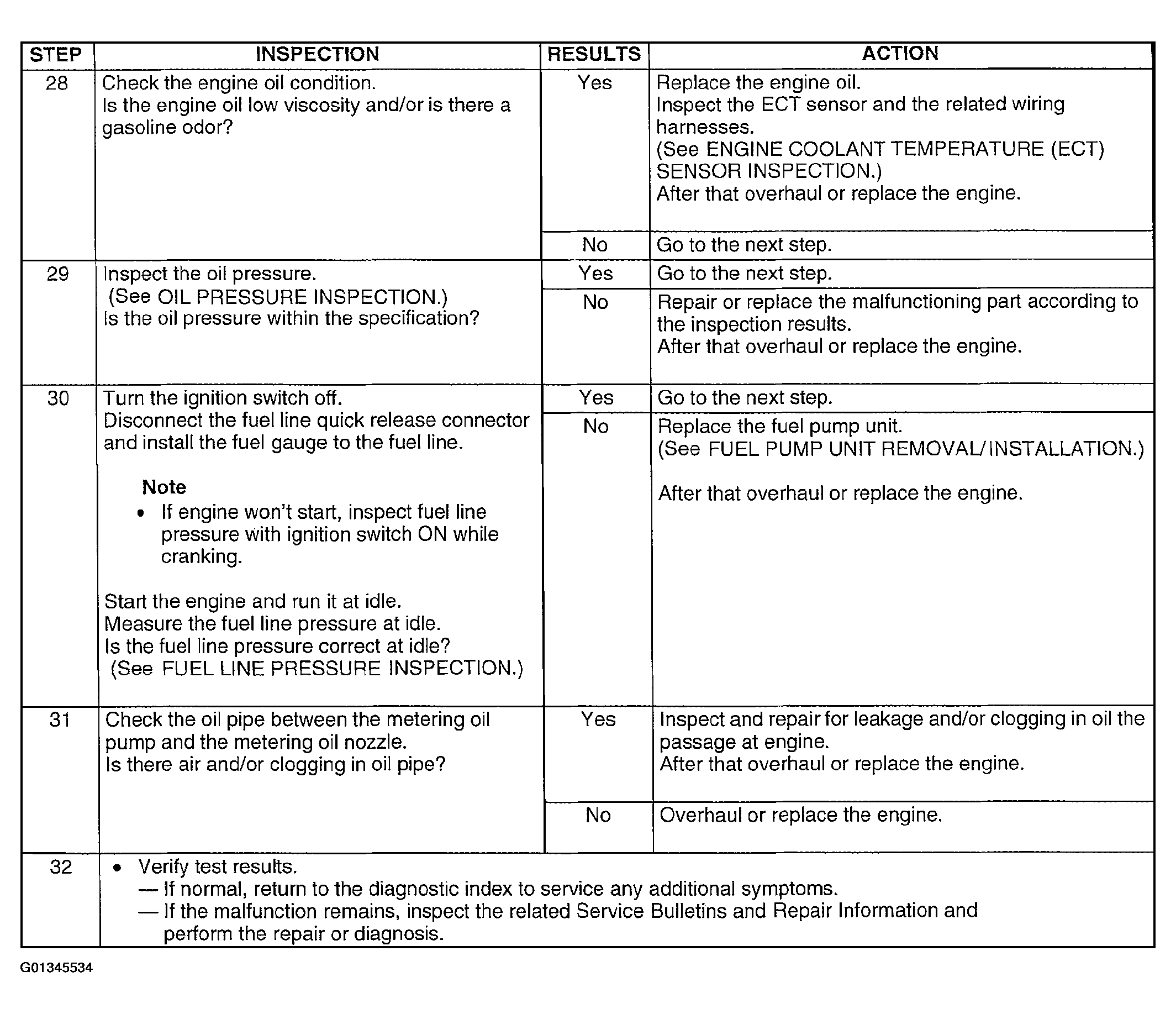

Fig 5: Diagnostic Procedure - No. 6 Cranks Normally But Will Not Start (Steps 28-32)

Courtesy of MAZDA MOTORS CORP.
