No. 25 A/C Does Not Cut Off Under Wide Open Throttle Conditions

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Possible Cause - No. 25 A/C Does Not Cut Off Under Wide Open Throttle Conditions

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

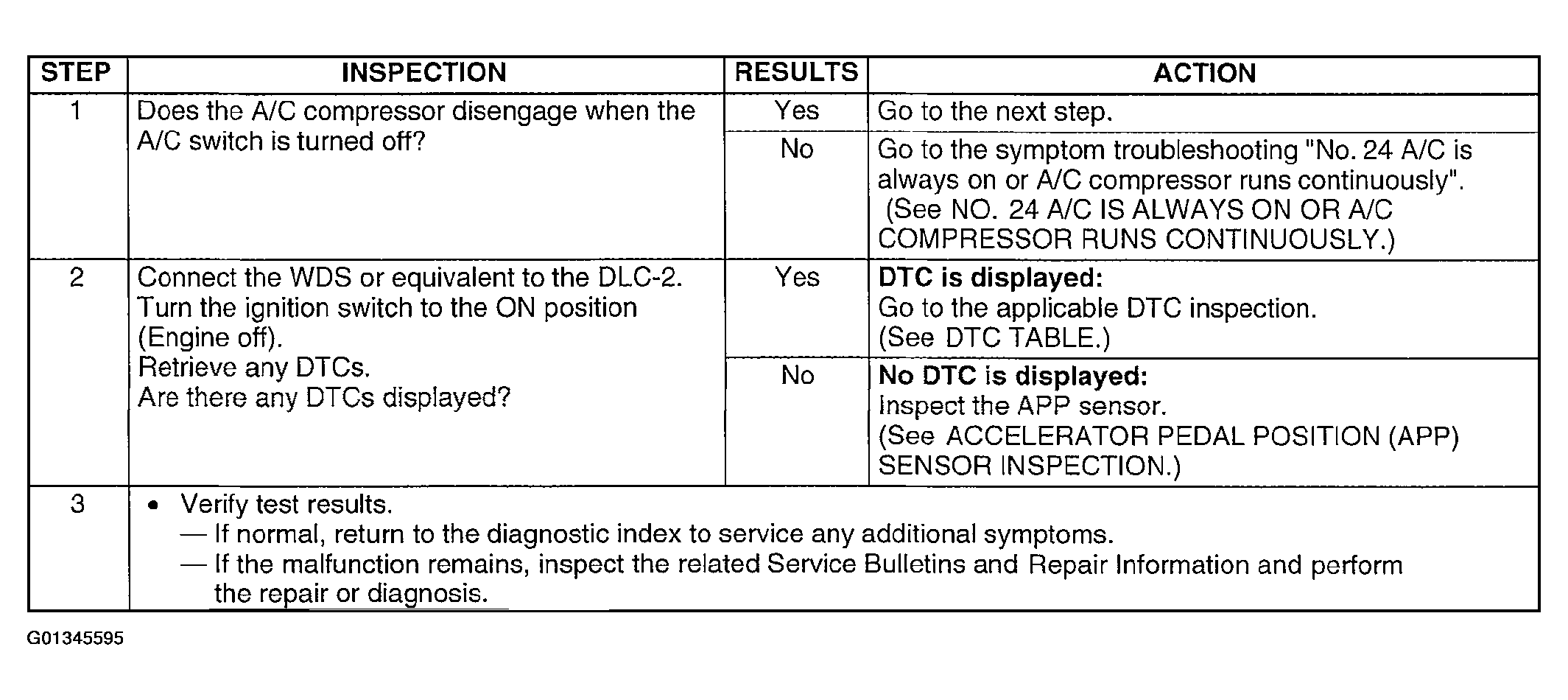

Fig 2: Diagnostic Procedure - No. 25 A/C Does Not Cut Off Under Wide Open Throttle Conditions

Courtesy of MAZDA MOTORS CORP.
