No. 1 Melting Of Main Or Other Fuses

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

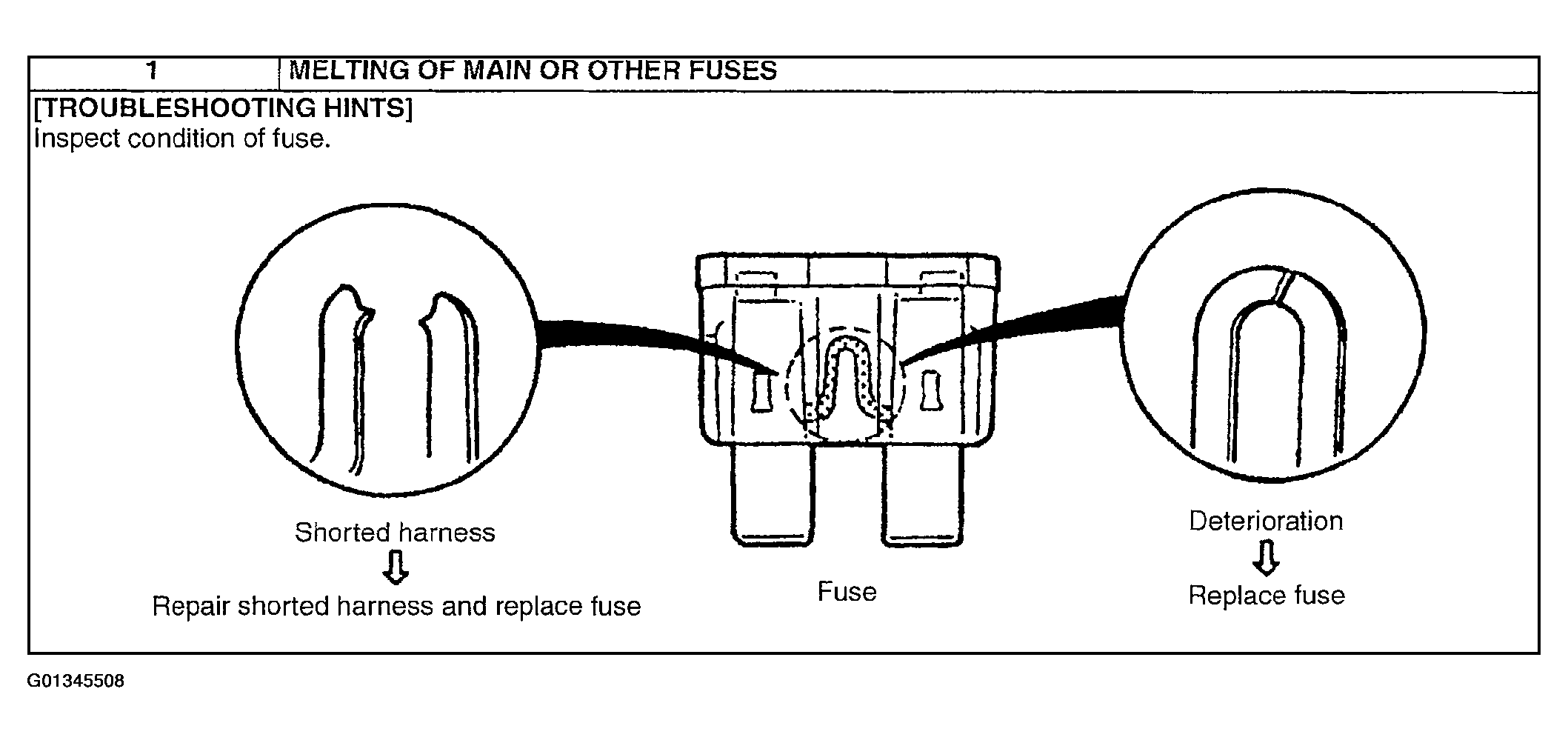

Fig 1: Troubleshooting Hints

Courtesy of MAZDA MOTORS CORP.

Fig 2: Troubleshooting Hints - No. 1 Melting Of Main Or Other Fuses

Courtesy of MAZDA MOTORS CORP.

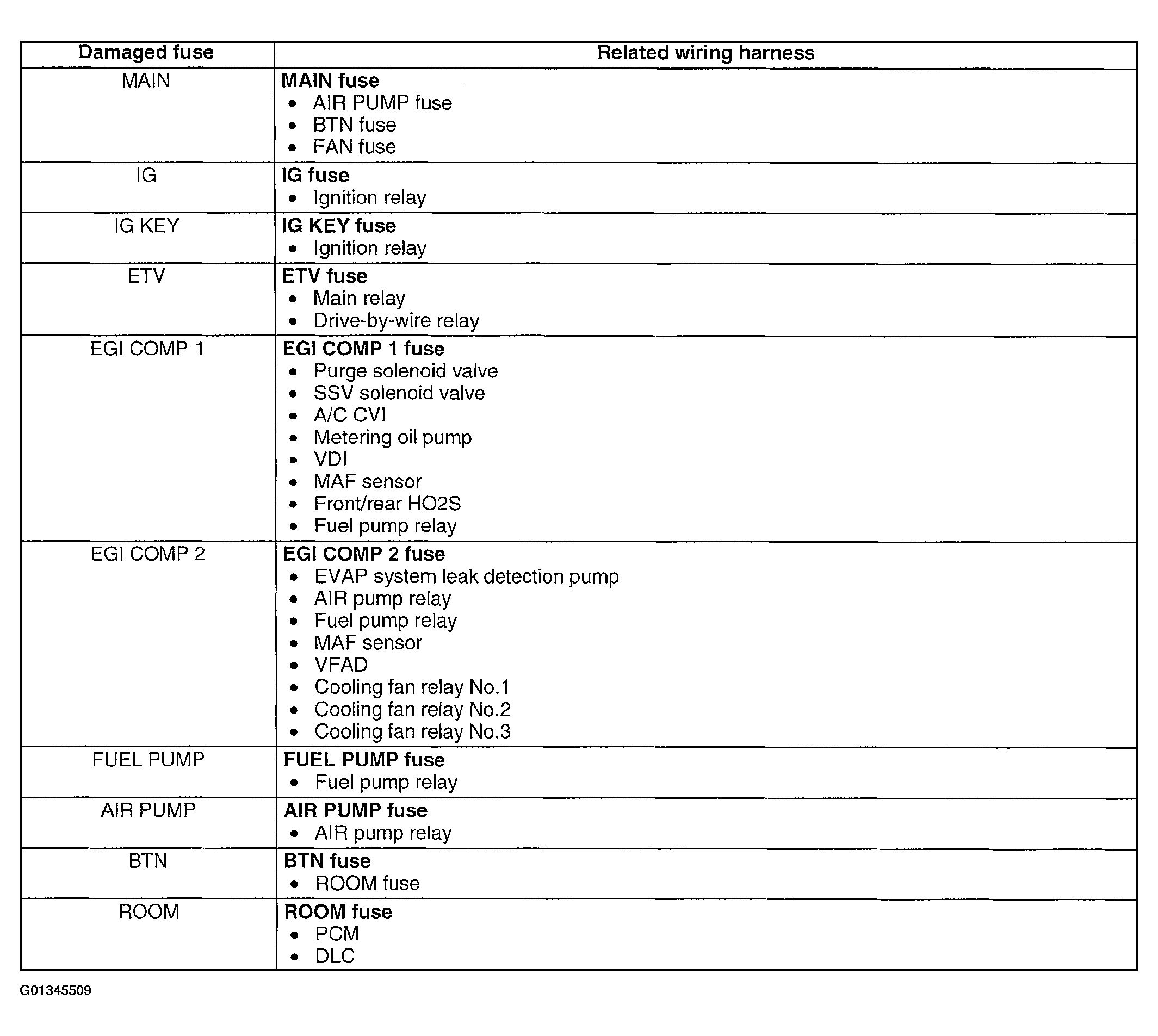

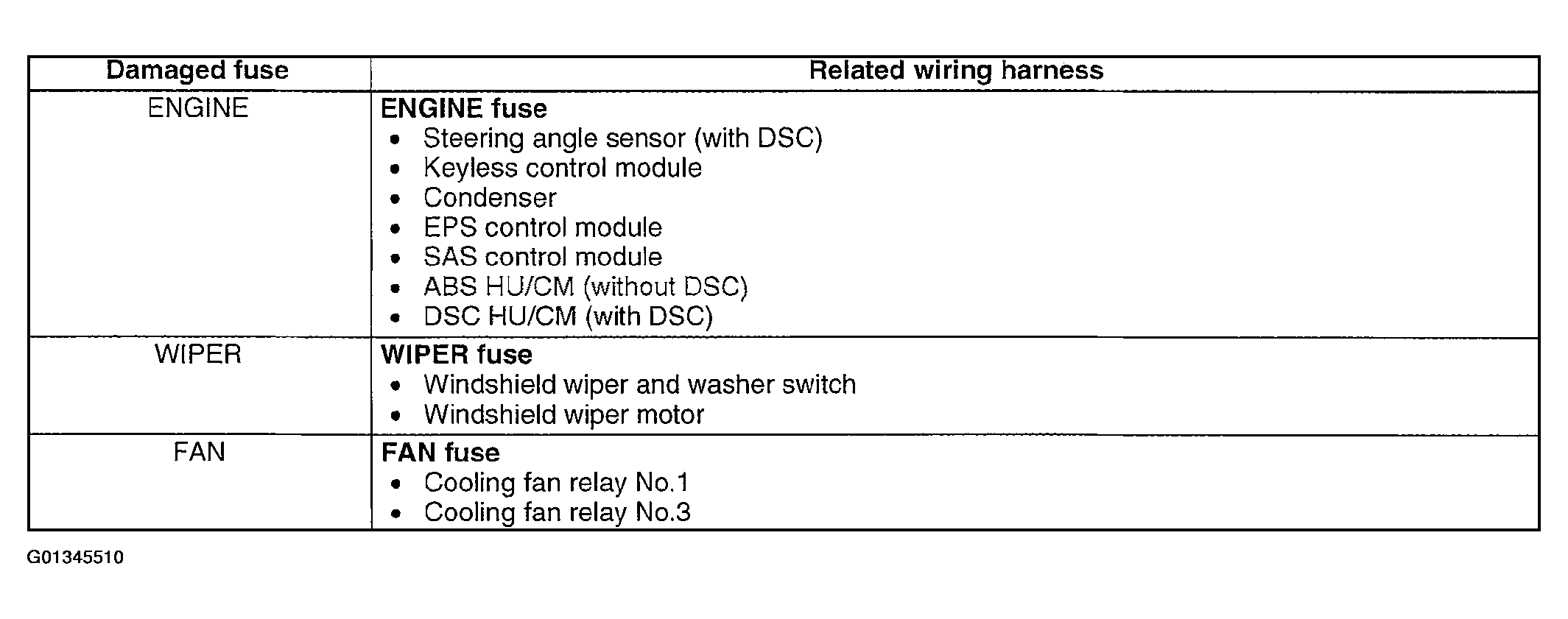

Fig 3: Damaged Fuse - Related Wire Harness

Courtesy of MAZDA MOTORS CORP.
