No. 6 Air From Vents Cold Enough: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

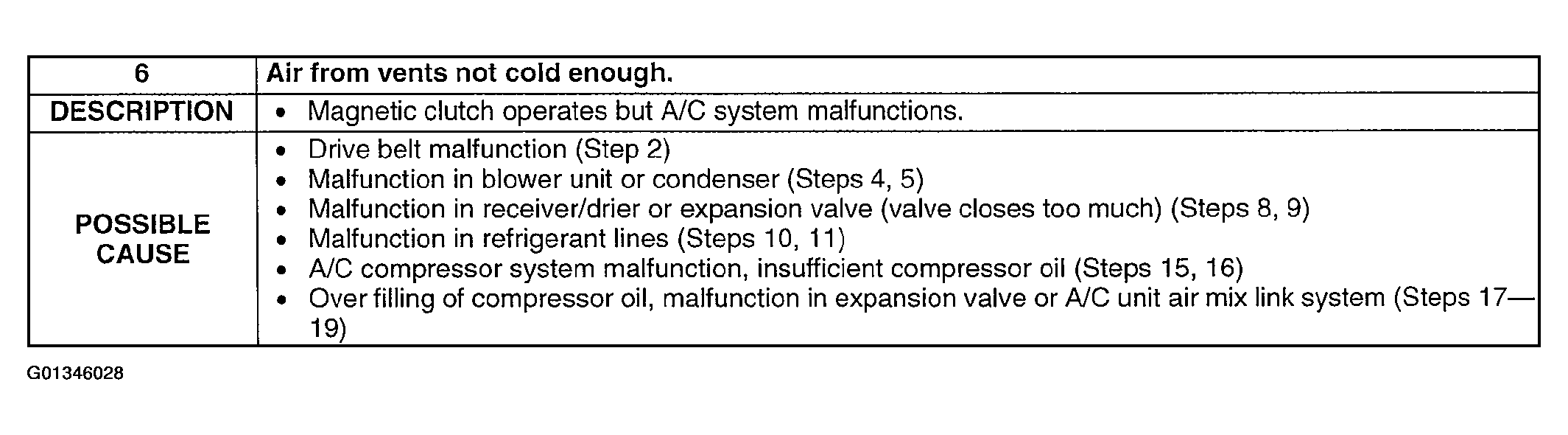

Fig 1: Symptom No. 6 Description & Possible Causes Chart
G01346028Courtesy of MAZDA MOTORS CORP.
