Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

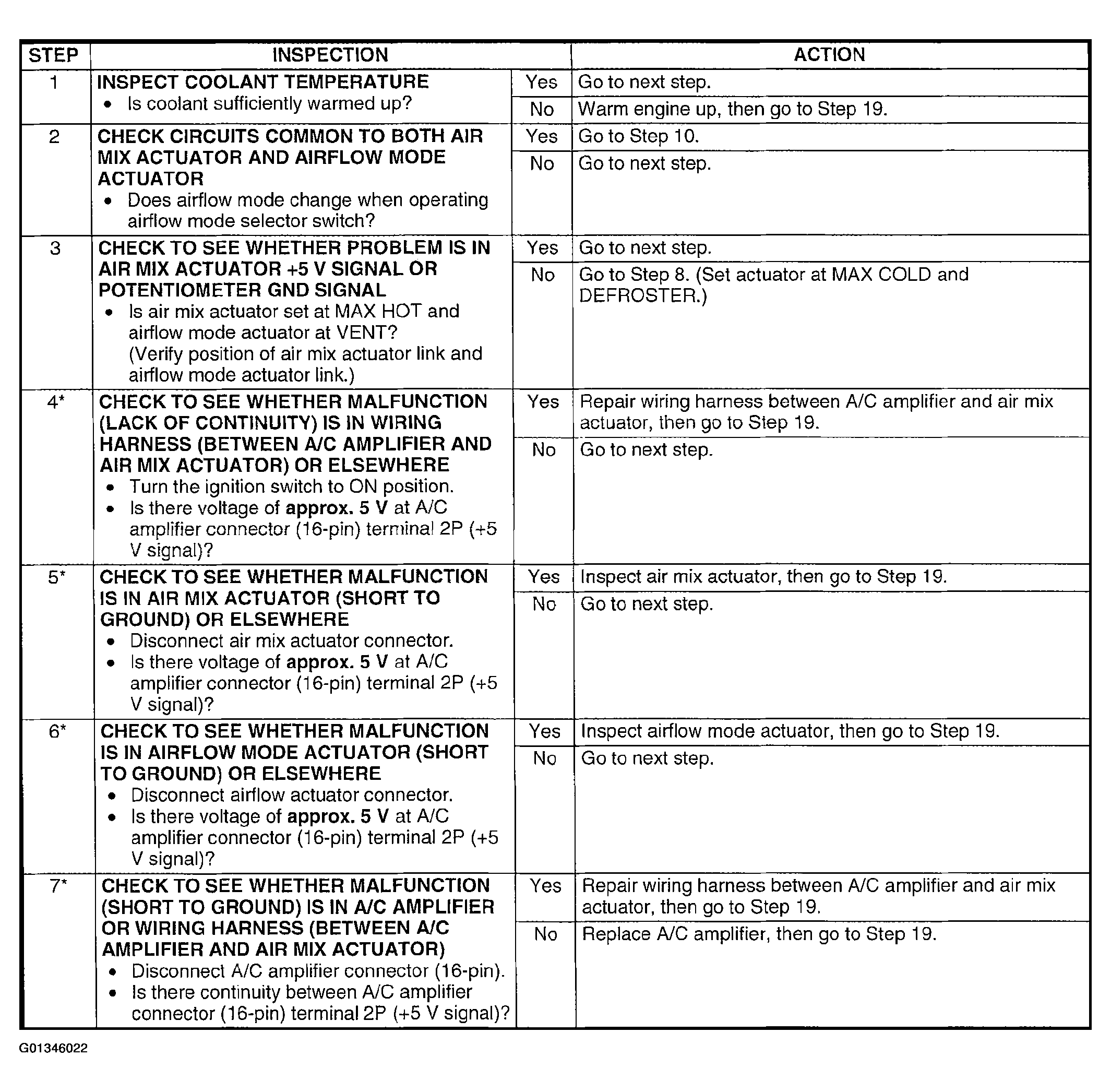

Fig 1: Symptom No. 4 Diagnostic Procedure Chart (Steps 1-7)

Courtesy of MAZDA MOTORS CORP.

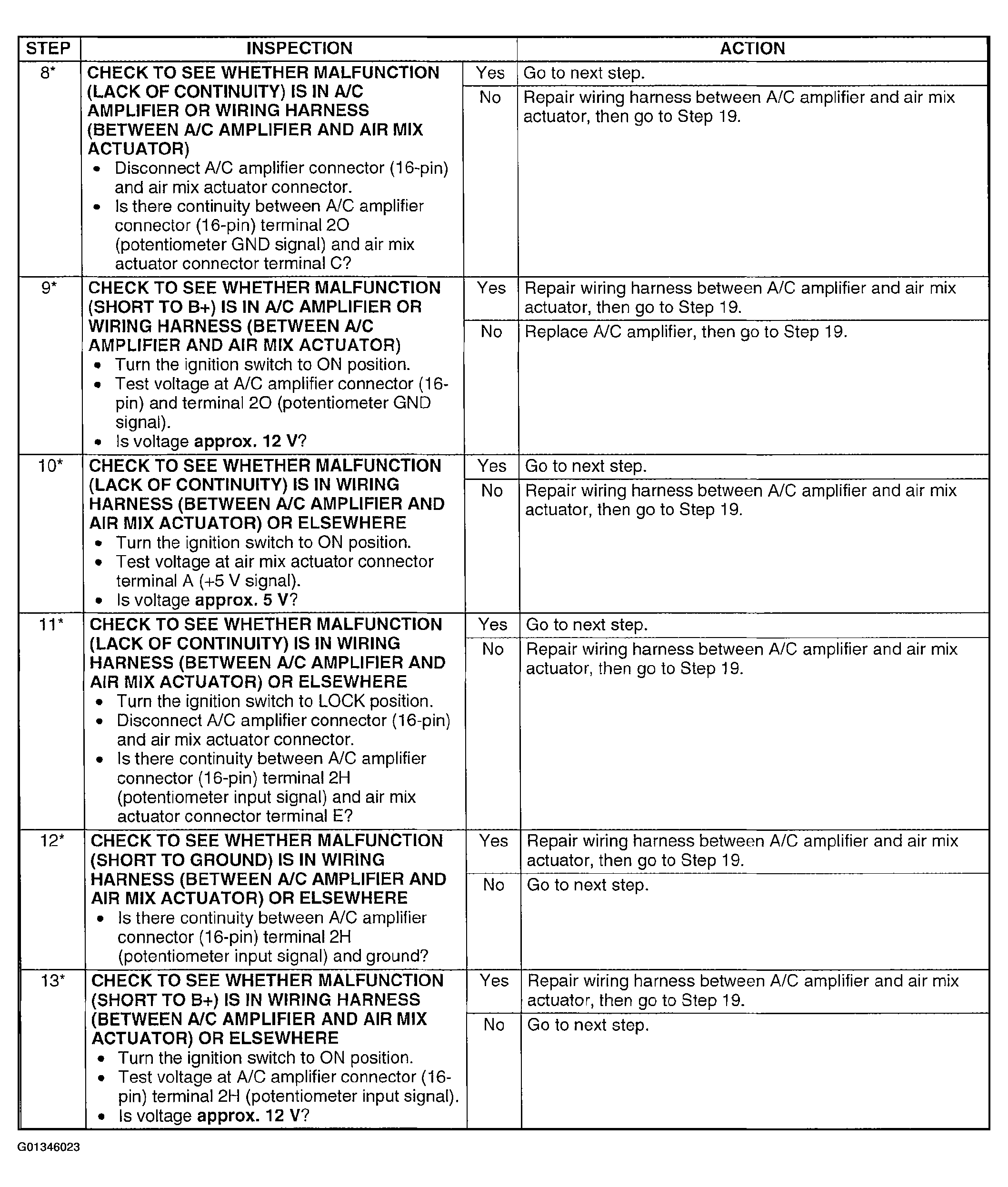

Fig 2: Symptom No. 4 Diagnostic Procedure Chart (Steps 8-13)

Courtesy of MAZDA MOTORS CORP.

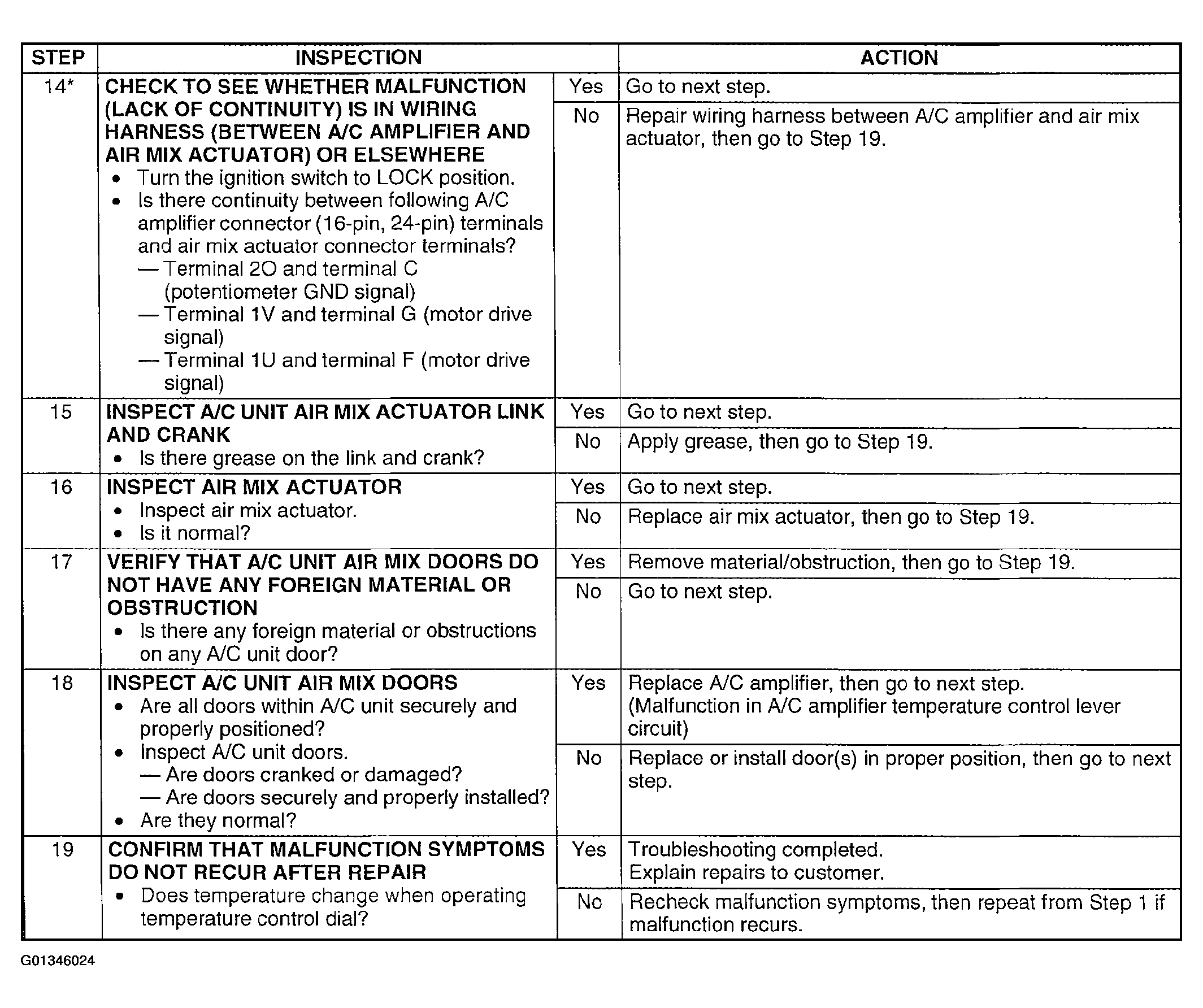

Fig 3: Symptom No. 4 Diagnostic Procedure Chart (Steps 14-19)

Courtesy of MAZDA MOTORS CORP.
