Bolt (Intermediate Shaft) Installation Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Align the marks made during removal and install the steering shaft to the steering gear.
Tighten the joint bolts (lower and upper).
Tightening torque

17.6-26.5 N.m

{1.80-2.70 kgf.m, 13.0-19.5 ft.lbf}
After tightening the bolts, move the intermediate shaft joint up and down and verify that it is securely installed.

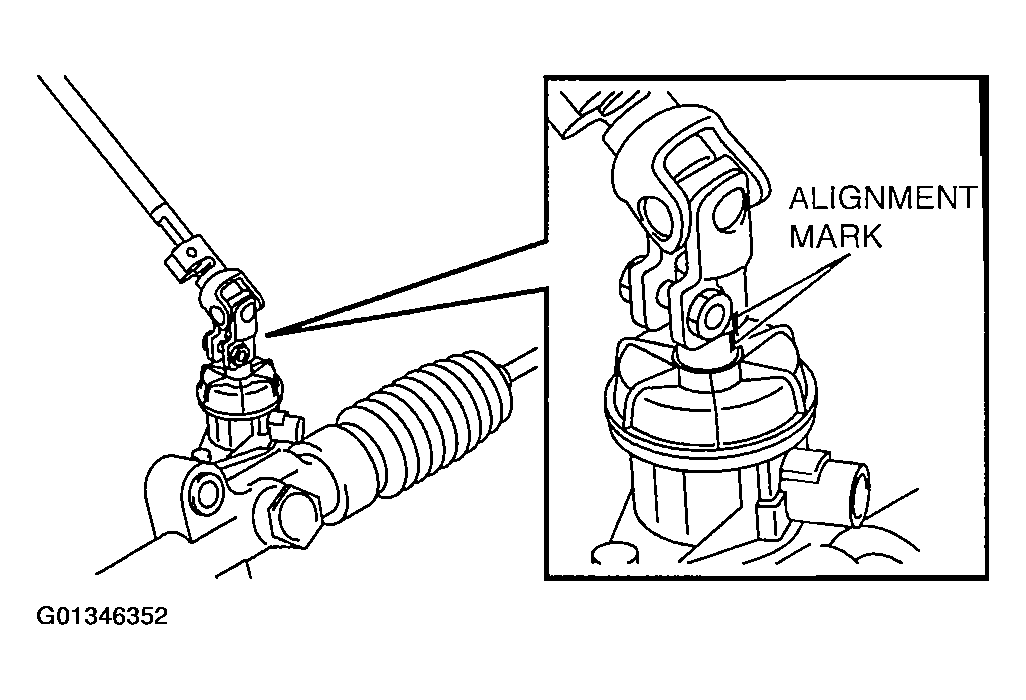

Fig 1: Aligning Marks Of Steering Shaft & Steering Gear
Courtesy of MAZDA MOTORS CORP.
