Mounting Rubber Disassembly Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the mounting rubber out from the gear housing using the SSTs  and a press.

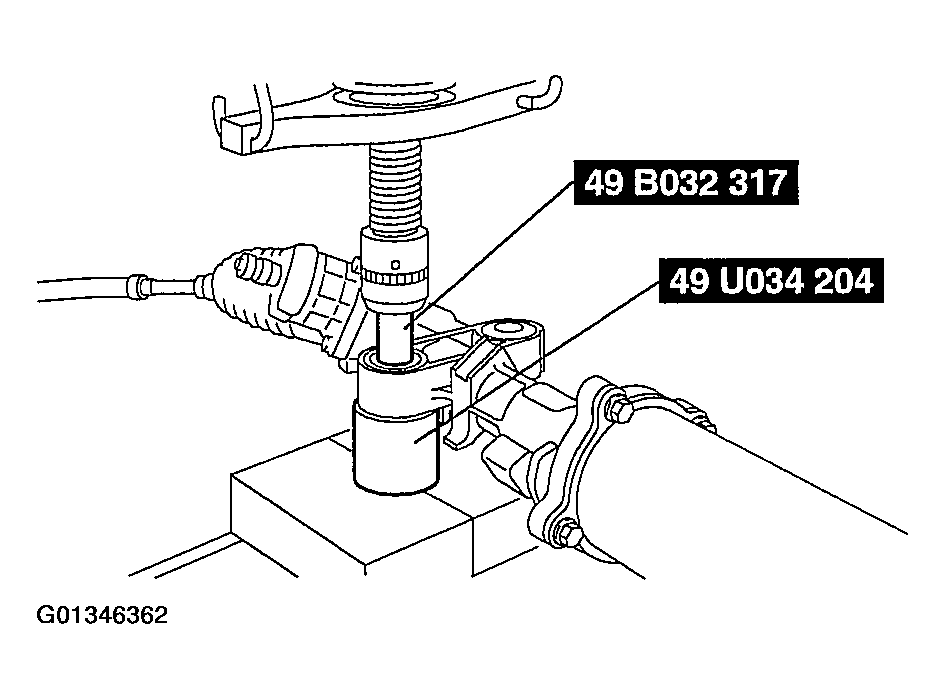

    Fig 1: Pressing Mounting Rubber Out From Gear Housing
    G01346362Courtesy of MAZDA MOTORS CORP.
