Rear Door Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the rear seat cushion. (See REAR SEAT REMOVAL/INSTALLATION .)
  3. Remove the seat belt rail. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
  4. To remove the checker, remove the following parts:
    1. Rear door lower trim (See REAR DOOR LOWER TRIM REMOVAL/INSTALLATION .)
  5. To remove the rear door hinge, remove the following parts:
    1. Rear seat cushion (See REAR SEAT REMOVAL/INSTALLATION .)
    2. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
  6. Remove in the order indicated in Fig 1 .
    Fig 1: Removing Order Of Rear Door
    G01344274Courtesy of MAZDA MOTORS CORP.

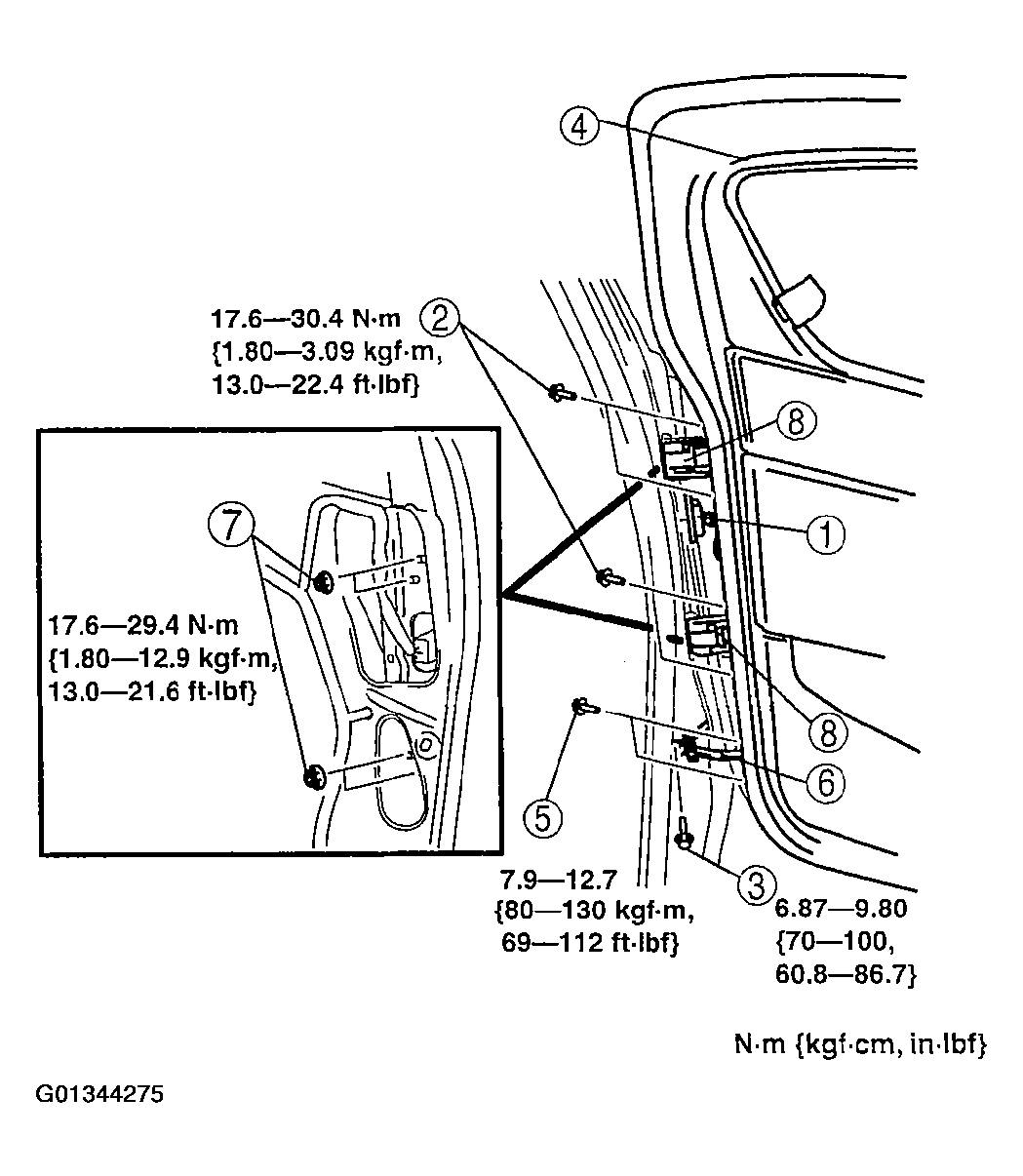

    Fig 2: Removing/Installing Rear Door
    G01344275Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
  8. Adjust the rear door. (See DOOR ADJUSTMENT  .)
