Rear Bumper Removal Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Pull the rear bumper ends (wheel arch) outward to detach from the bumper slider.

CAUTION:

When detaching the rear bumper from the bumper slider, the rear bumper could fail and be damaged. Secure the rear bumper so that it does not fall.

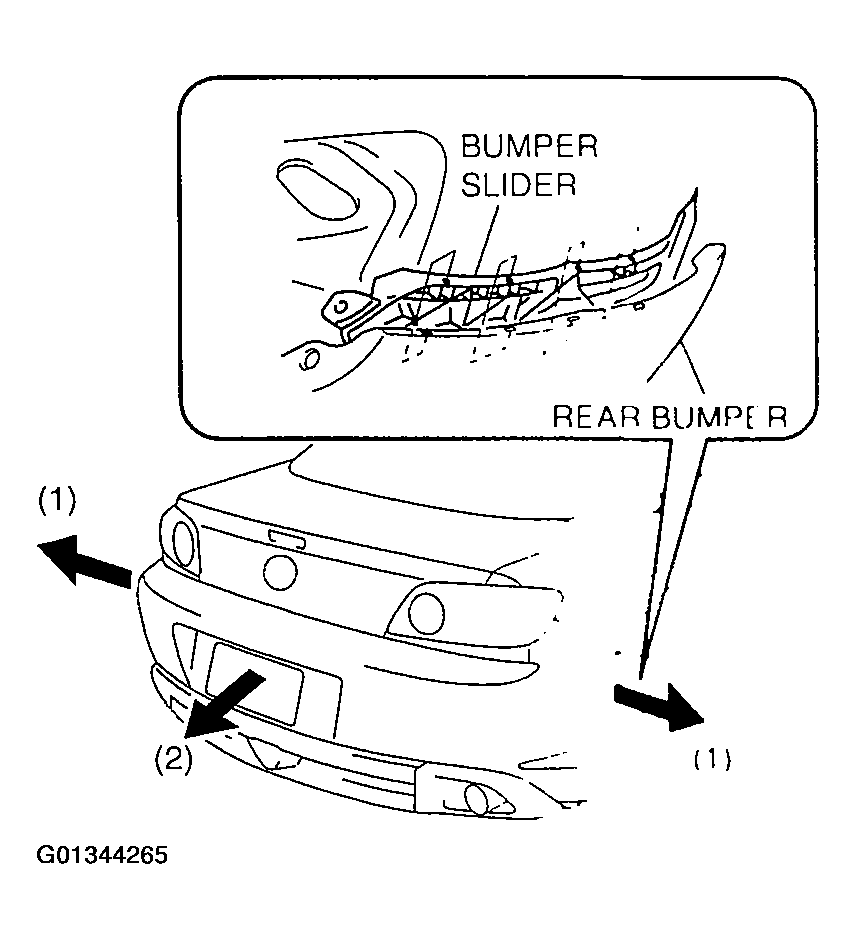

Fig 1: Pulling Rear Bumper Ends (Wheel Arch) Outward To Detach From Bumper Slider
Courtesy of MAZDA MOTORS CORP.
