Height Difference Adjustment

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Turn the stop rubber to adjust the height of the hood.

Fig 1: Adjusting Height Of Hood
Courtesy of MAZDA MOTORS CORP.
Verify that the height difference between the hood and the body is within the specification.

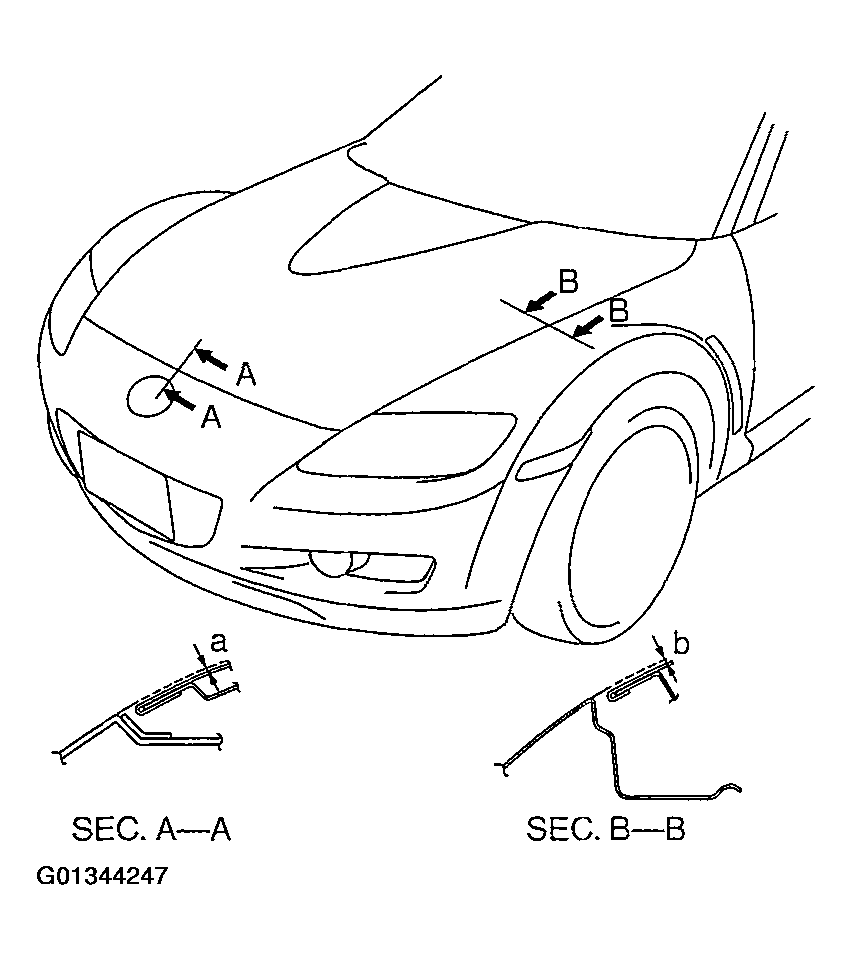

Fig 2: Verifying Proper Height Difference Between Hood & Body
Courtesy of MAZDA MOTORS CORP.

Standard clearance

-1.8-1.2 mm {-0.07-0.04 in}
-1.0-1.0 mm {-0.03-0.03 in}
