Instrument Cluster

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Access and monitor the "PCM_MSG", "EPS_MSG", "TPM_MSG", "TCM_MSG" and "ABS_MSG" of PID using the SST  (WDS or equivalent).
  2. Referring to the PID/DATA MONITOR, confirm the display status of the PID. (See PID/DATA MONITOR TABLE  )
  3. Referring to the following table, determine the malfunctioning part of the CAN system.

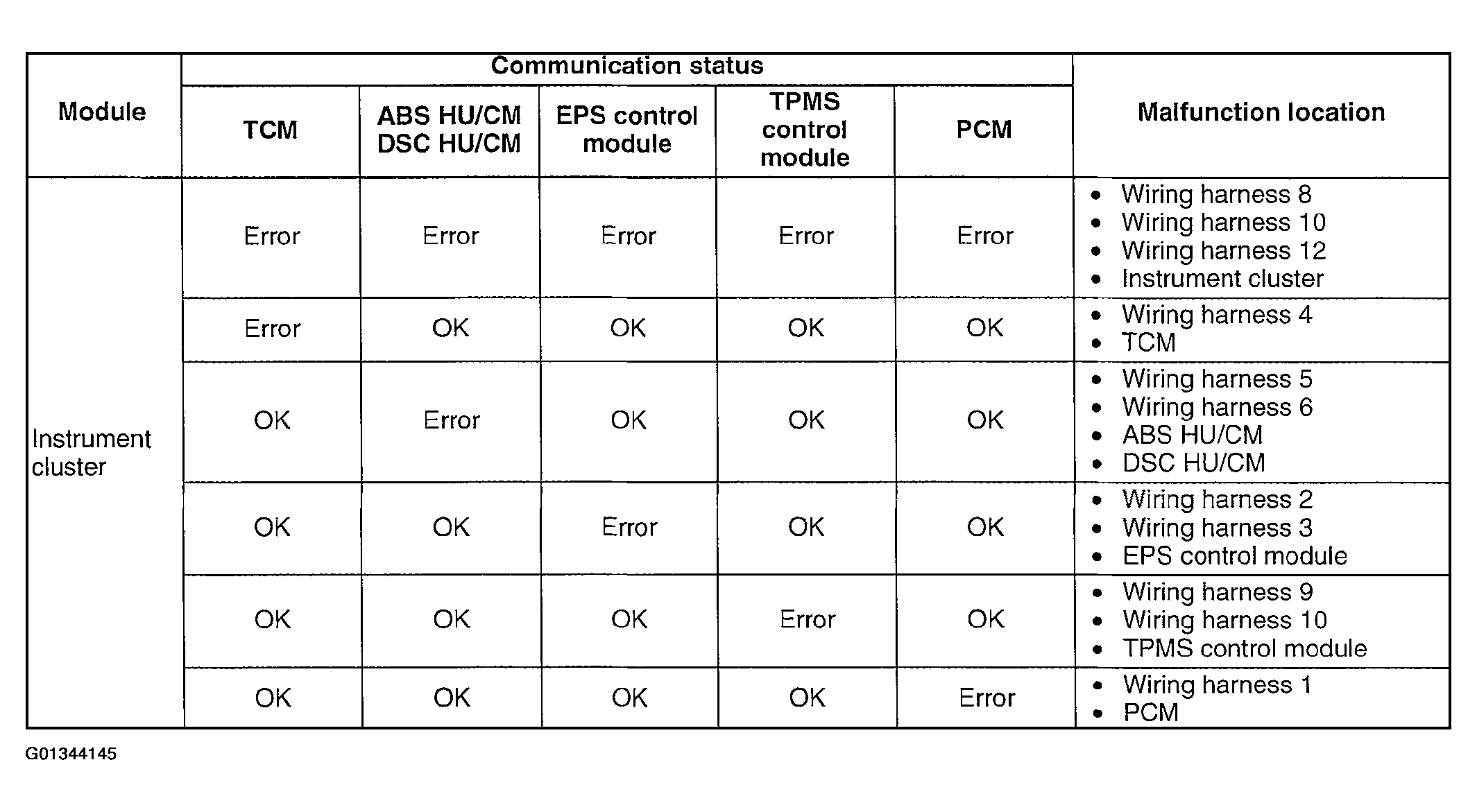

    Fig 1: Communication Status & Malfunction Table
    G01344145Courtesy of MAZDA MOTORS CORP.
