Power Plant Frame Removal Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the transmission using a transmission jack.
  2. Remove the power plant frame.

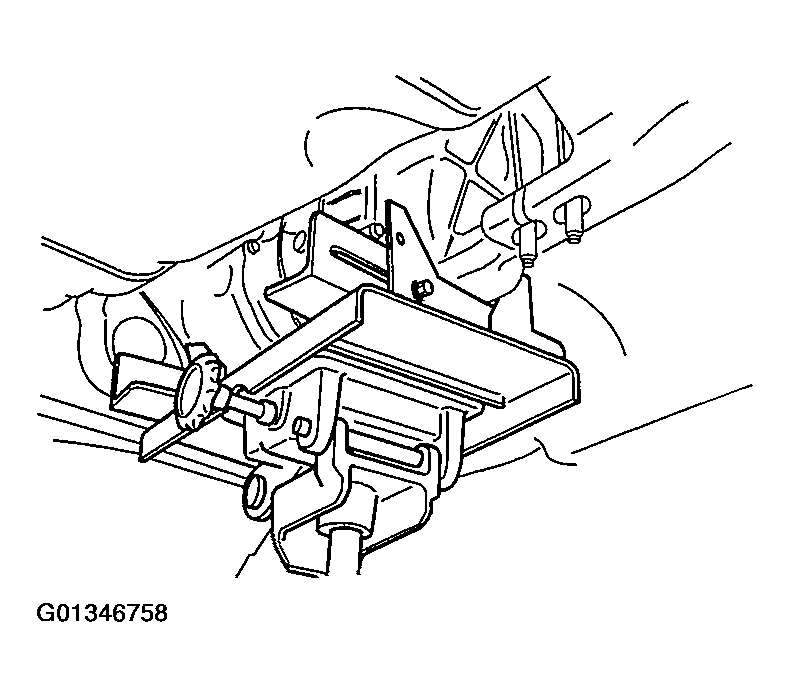

    Fig 1: Supporting Transmission Using Transmission Jack
    G01346758Courtesy of MAZDA MOTORS CORP.
