Neutral Switch Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the neutral switch.
Install the neutral switch to the transmission case.

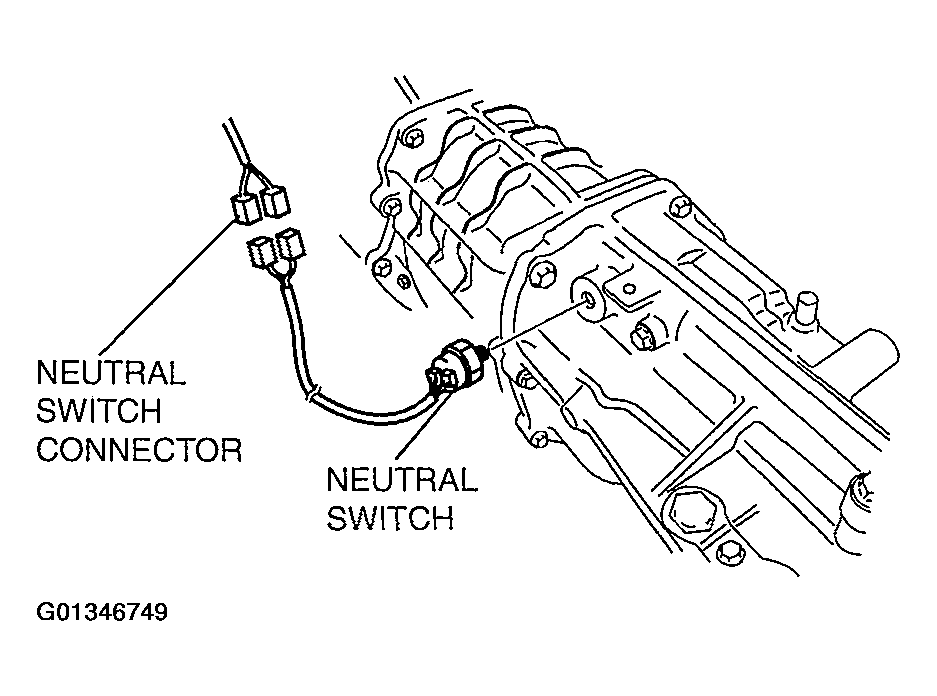

Fig 1: Removing/Installing Neutral Switch
Courtesy of MAZDA MOTORS CORP.

Tightening torque

30-39 N.m

{3.1-3.9 kgf.m, 23-28 ft.lbf}
