No. 24: No Engine Breaking In 1GR Position Of M Range

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

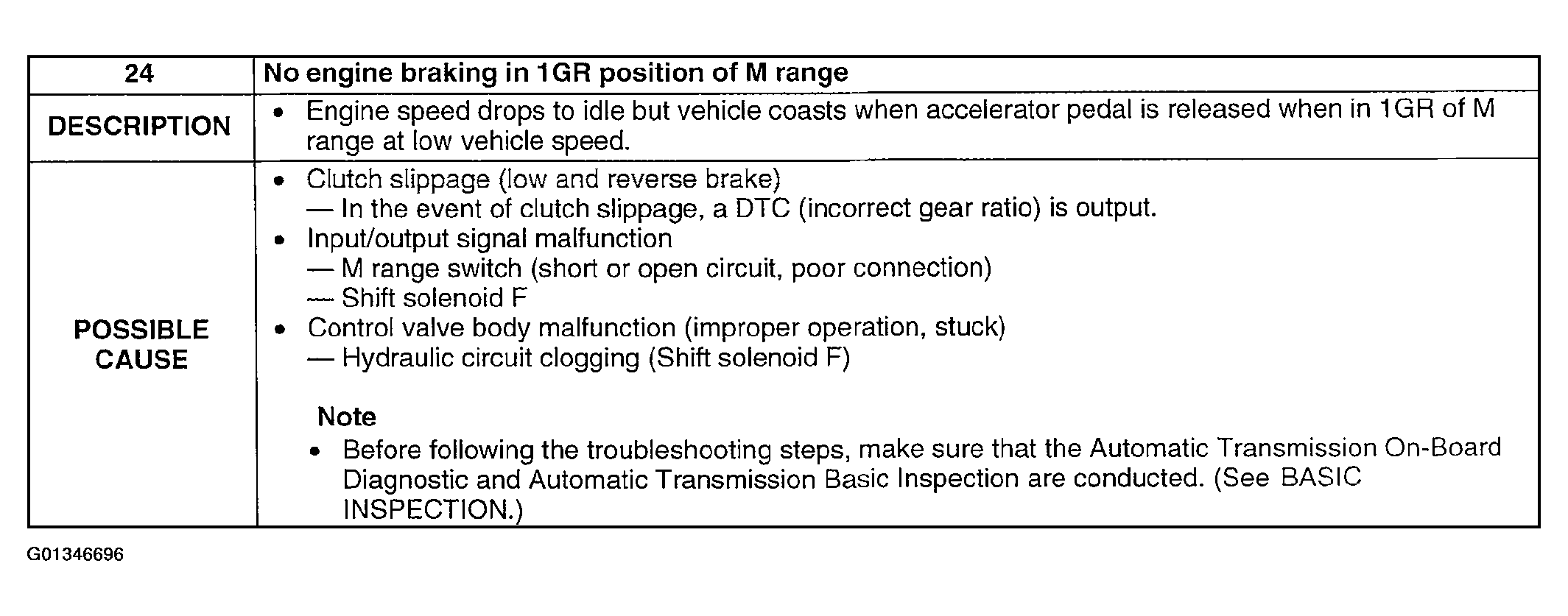

Fig 1: Possible Cause - No. 24 No Engine Breaking In 1Gr Position Of M Range

Courtesy of MAZDA MOTORS CORP.

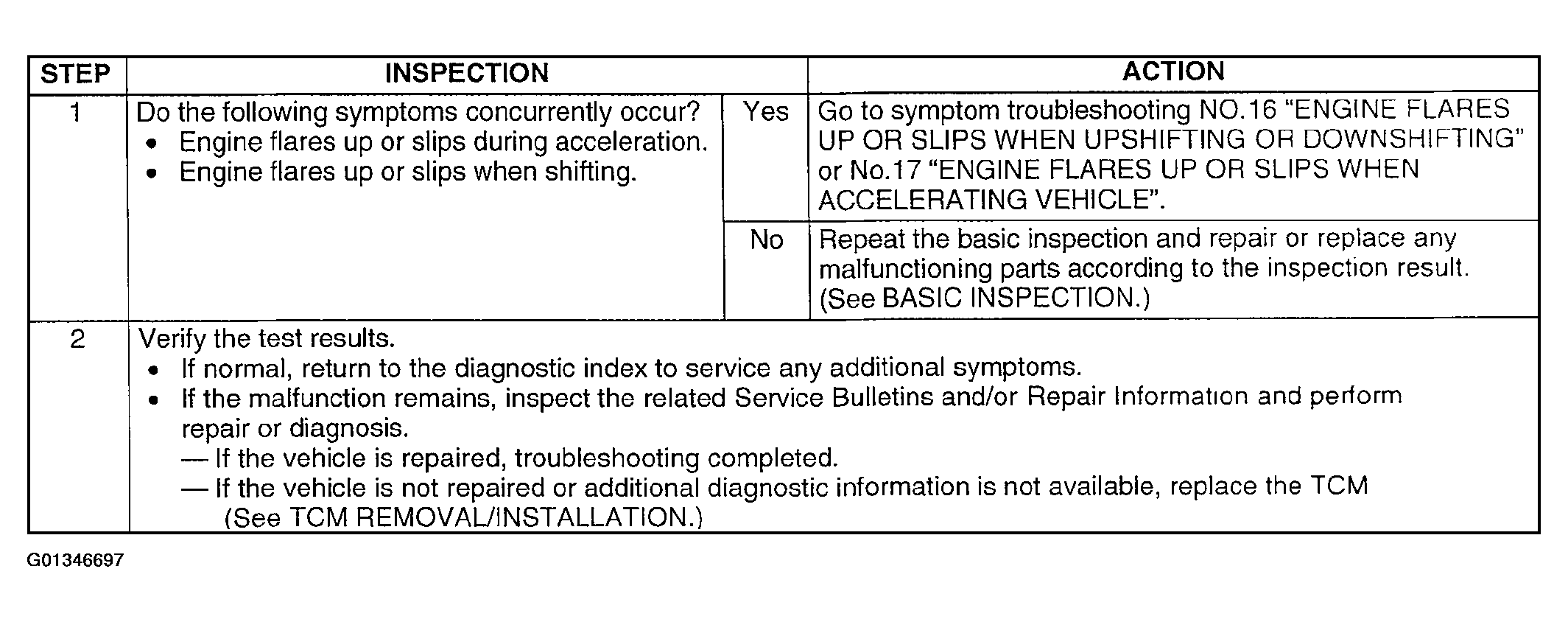

Fig 2: Diagnostic Procedure - No. 24 No Engine Breaking In 1Gr Position Of M Range

Courtesy of MAZDA MOTORS CORP.
