No. 20: Excessive Shift Shock Is Felt When Upshifting And Downshifting

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

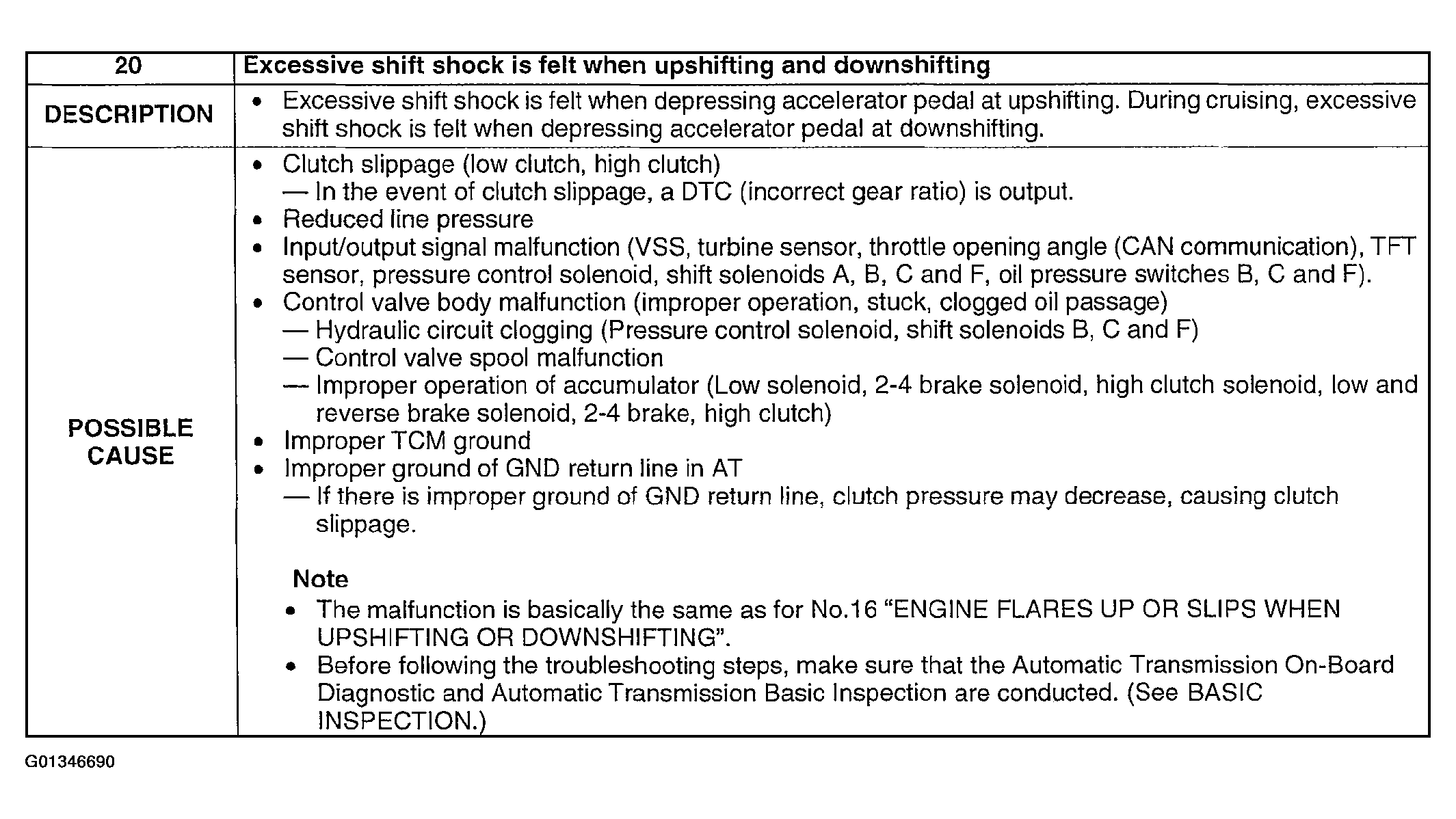

Fig 1: Possible Cause - No. 20 Excessive Shift Shock Is Felt When Upshifting & Downshifting

Courtesy of MAZDA MOTORS CORP.

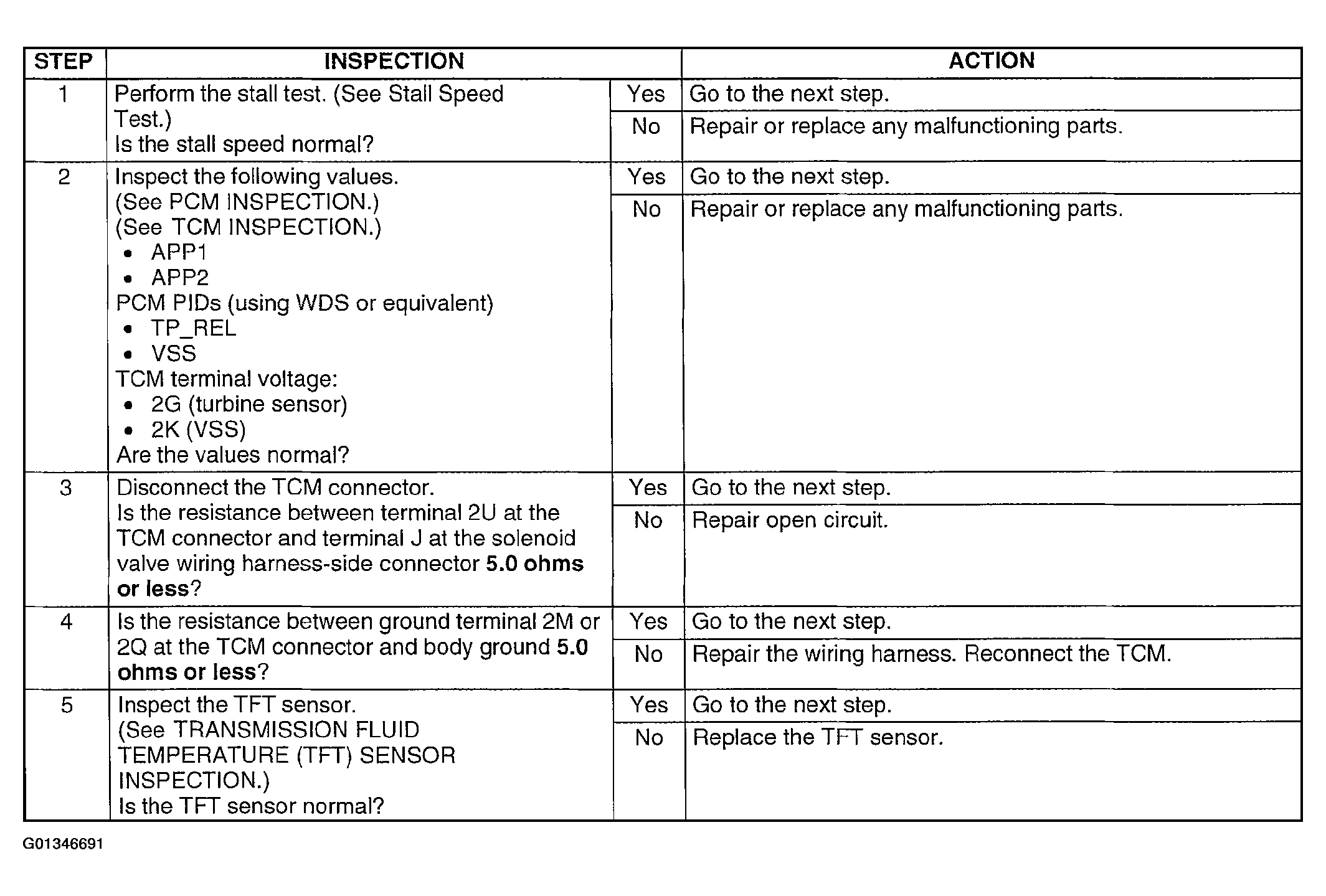

Fig 2: Diagnostic Procedure - No. 20 Excessive Shift Shock Is Felt When Upshifting & Downshifting (Steps 1-5)

Courtesy of MAZDA MOTORS CORP.

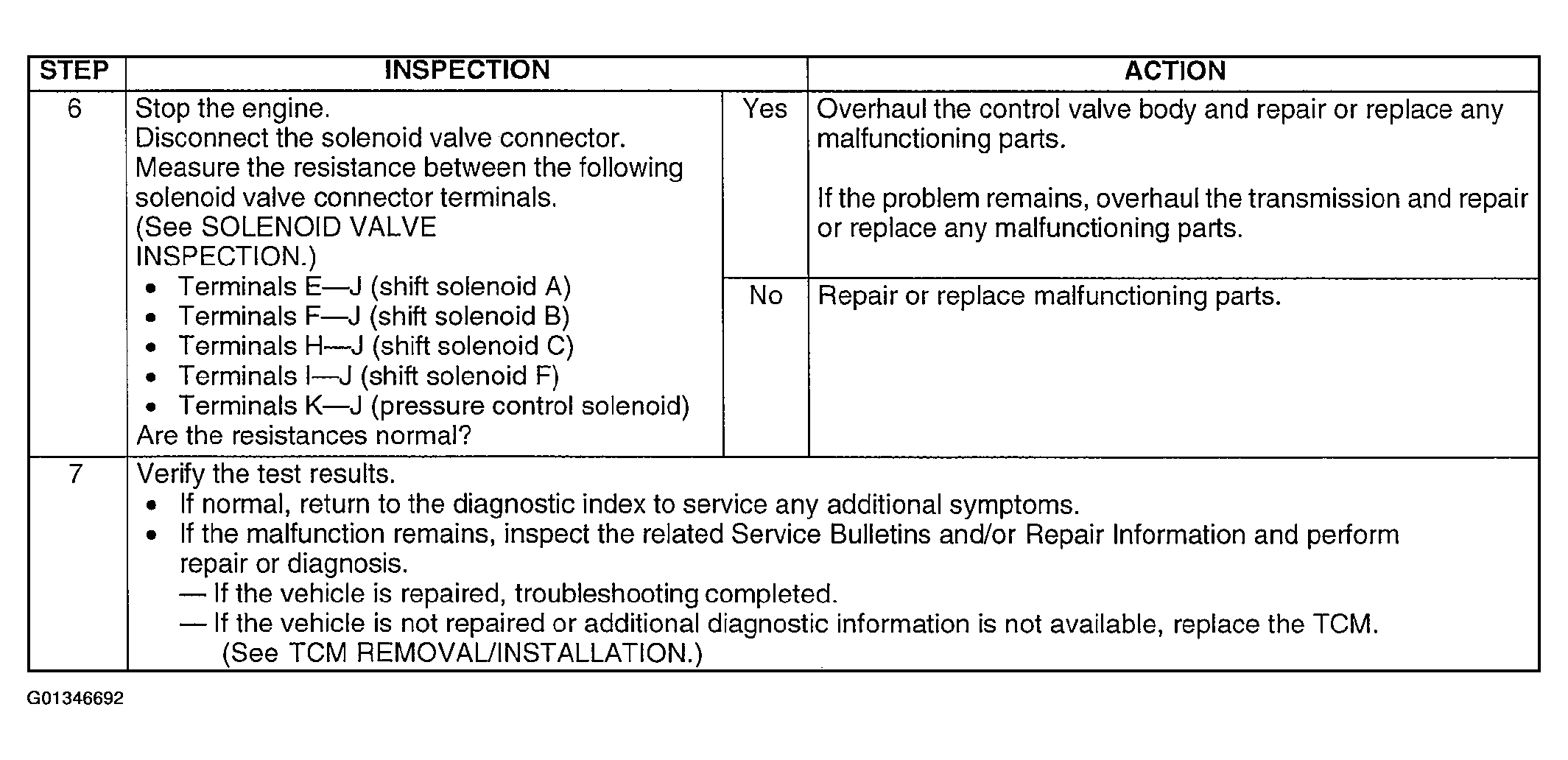

Fig 3: Diagnostic Procedure - No. 20 Excessive Shift Shock Is Felt When Upshifting & Downshifting (Steps 6-7 )

Courtesy of MAZDA MOTORS CORP.
