No. 19: Excessive Shift Shock From N To D Or N To R Position/Range

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

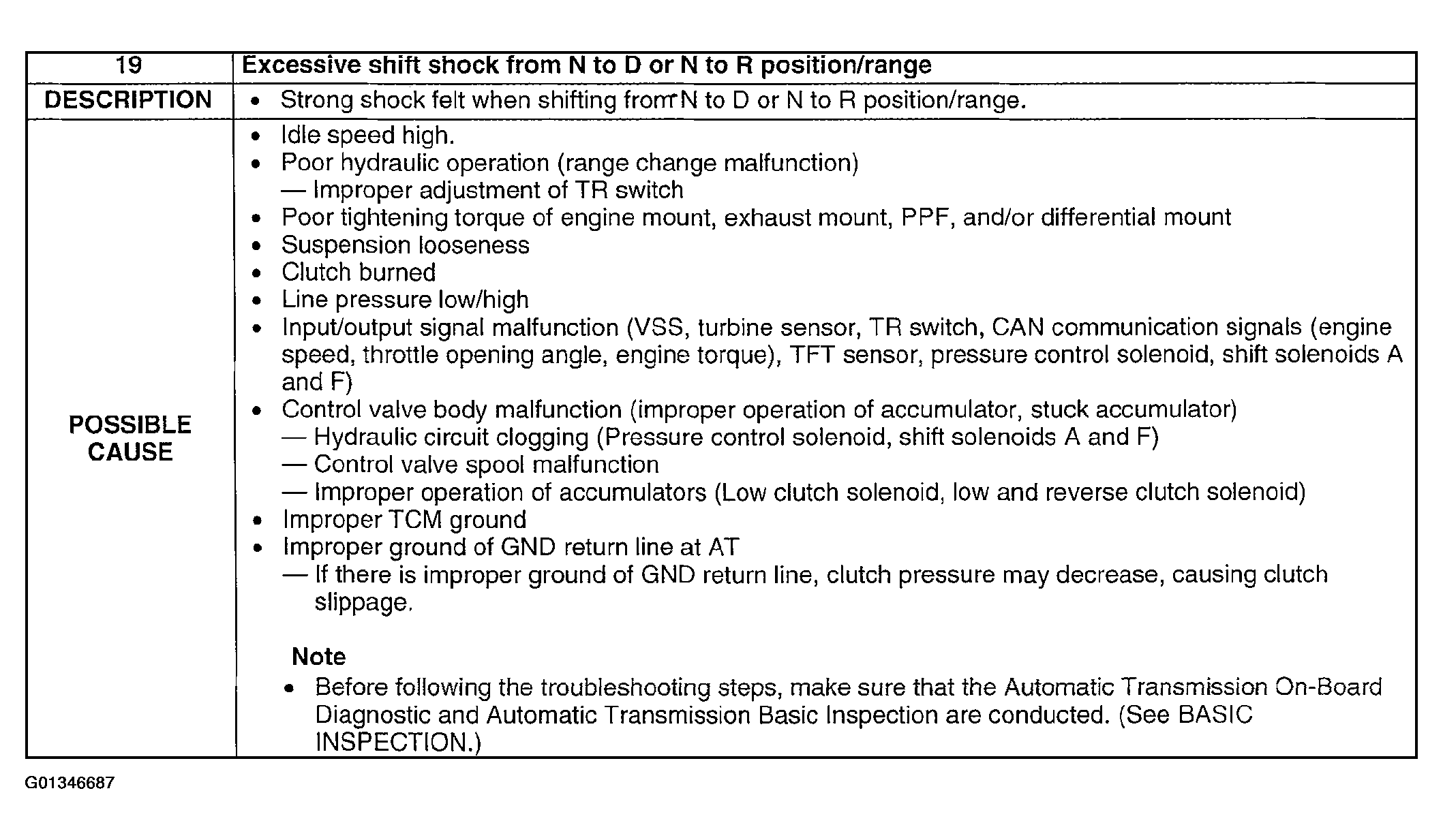

Fig 1: Possible Cause - No. 19 Excessive Shift Shock From N To D Or N To R Position/Range

Courtesy of MAZDA MOTORS CORP.

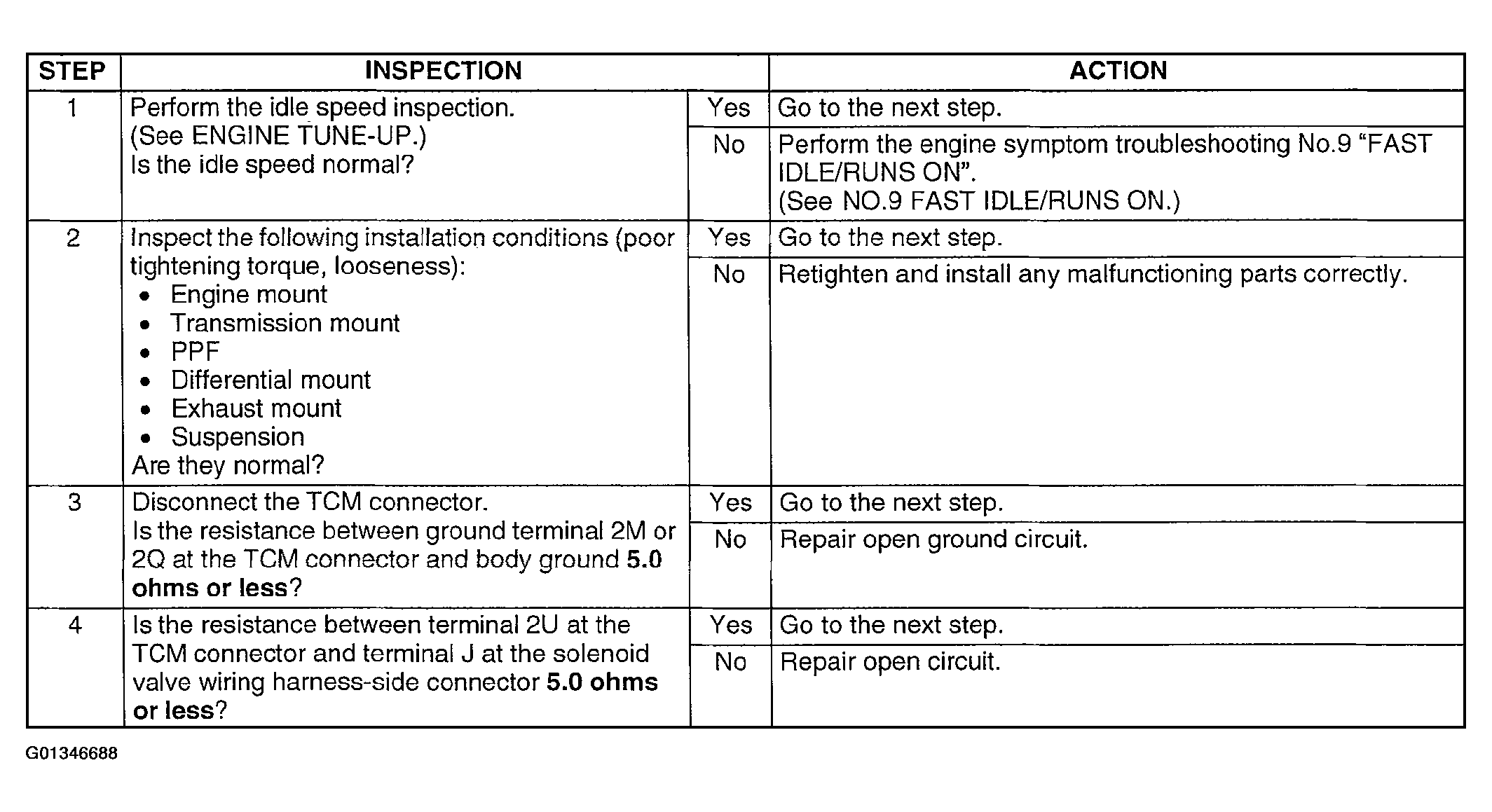

Fig 2: Diagnostic Procedure - No. 19 Excessive Shift Shock From N To D Or N To R Position/Range (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

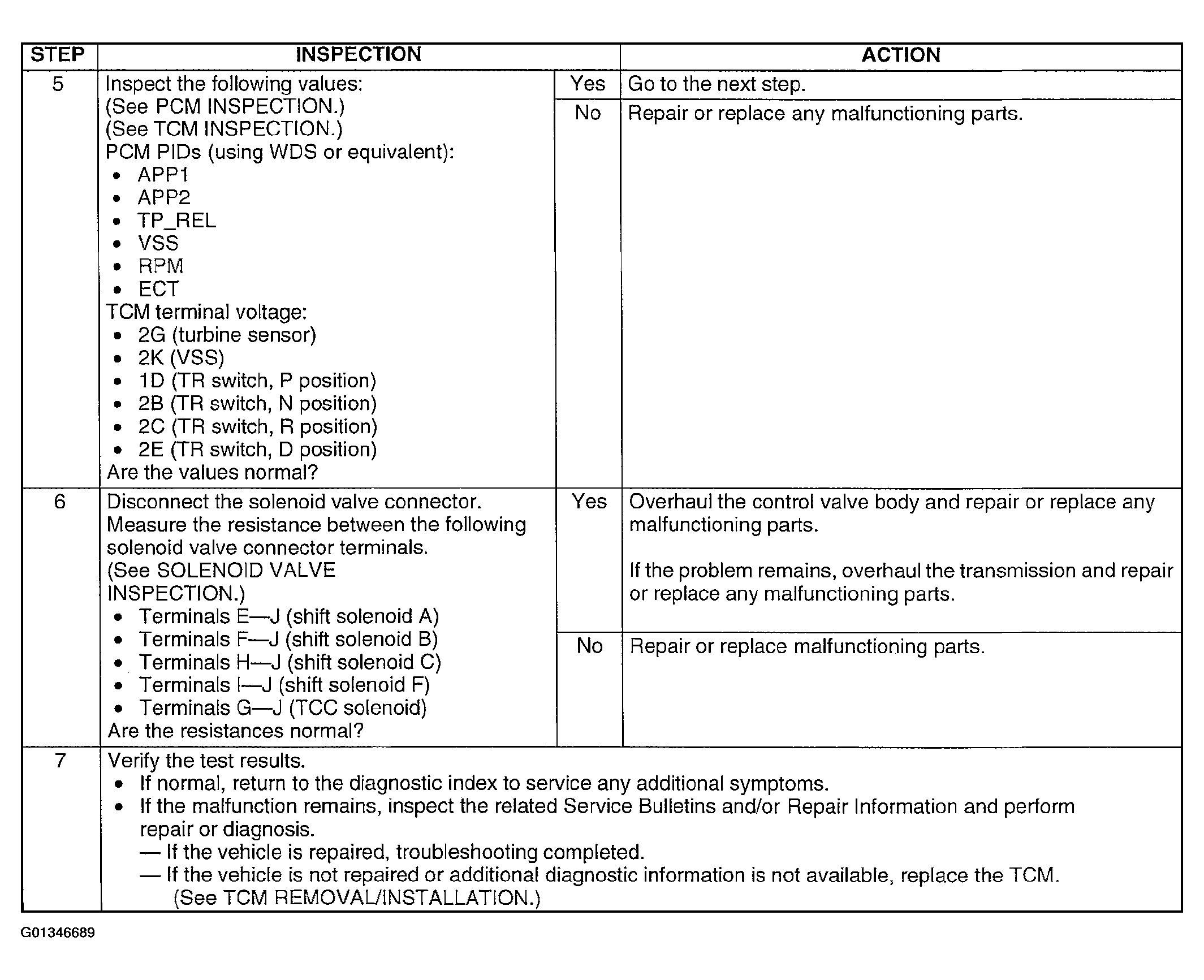

Fig 3: Diagnostic Procedure - No. 19 Excessive Shift Shock From N To D Or N To R Position/Range (Steps 5-7)

Courtesy of MAZDA MOTORS CORP.
