No. 10: Does Not Shift To 4GR

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

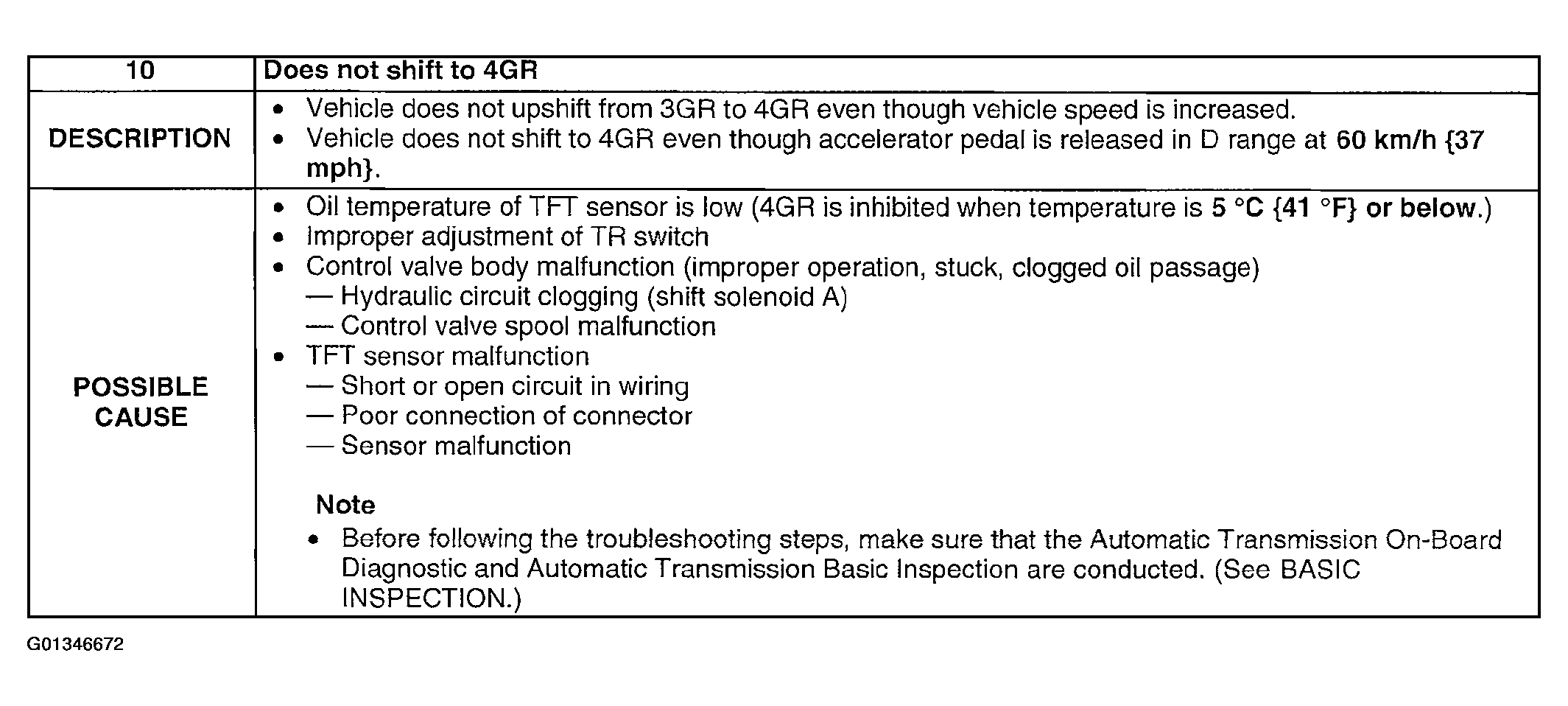

Fig 1: Possible Cause - No. 10 Does Not Shift To 4Gr

Courtesy of MAZDA MOTORS CORP.

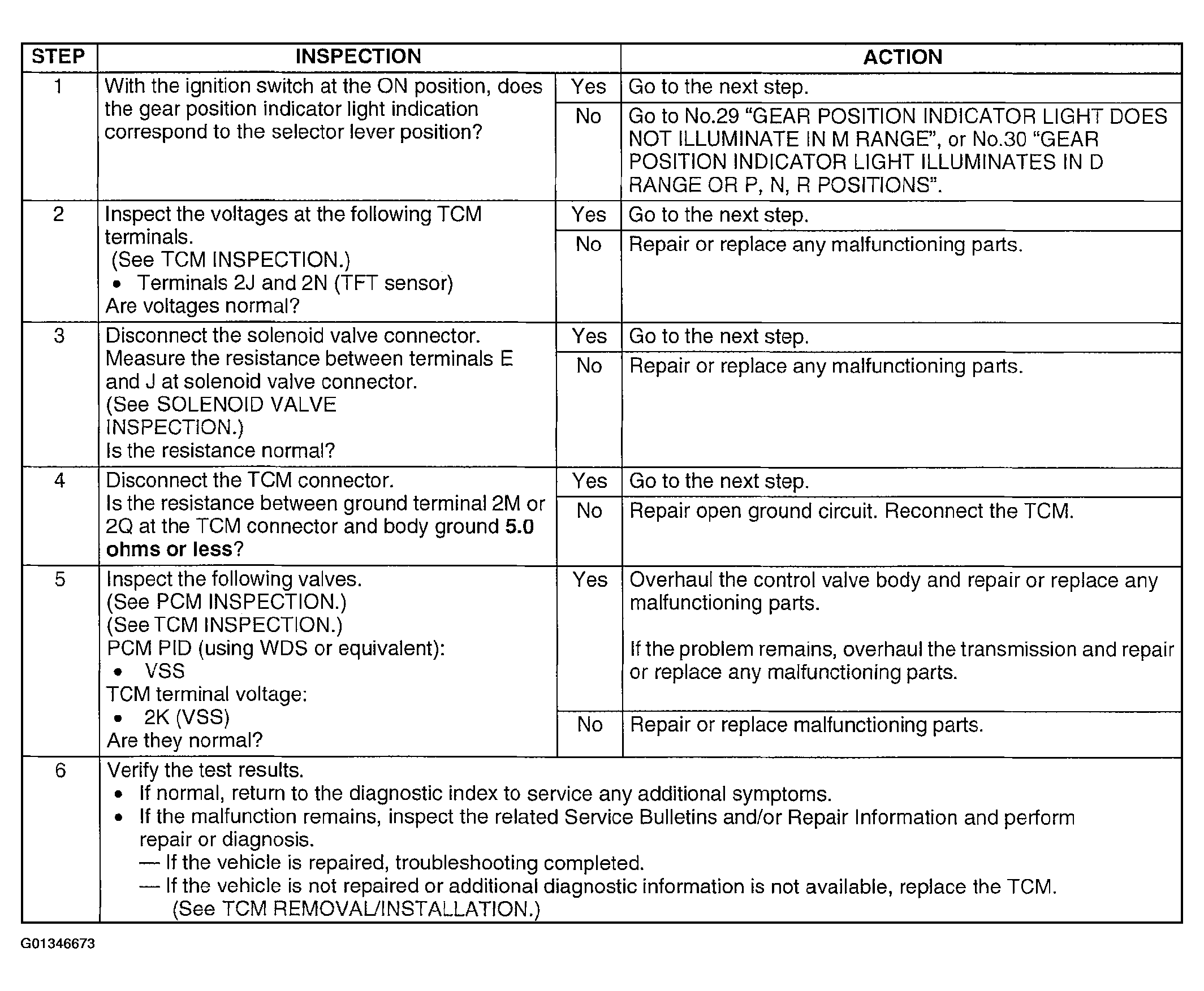

Fig 2: Diagnostic Procedure - No. 10 Does Not Shift To 4Gr

Courtesy of MAZDA MOTORS CORP.
