DTC Table

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

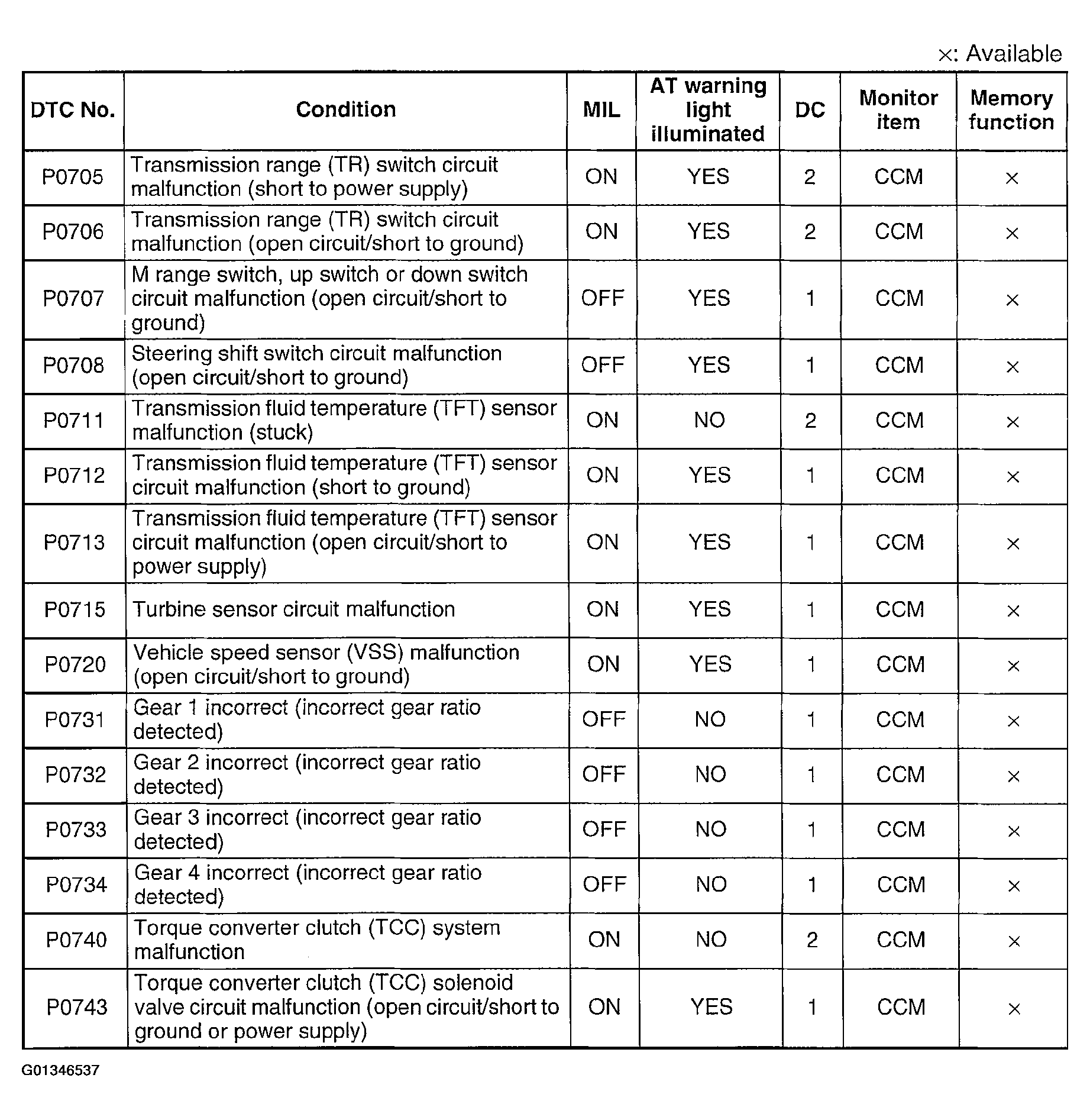

Fig 1: DTC's P0705, P0706, P0707, P0708, P0711, P0712, P0713, P0715, P0720, P0731, P0732, P0733, P0734, P0740 & P0743 Conditions

Courtesy of MAZDA MOTORS CORP.

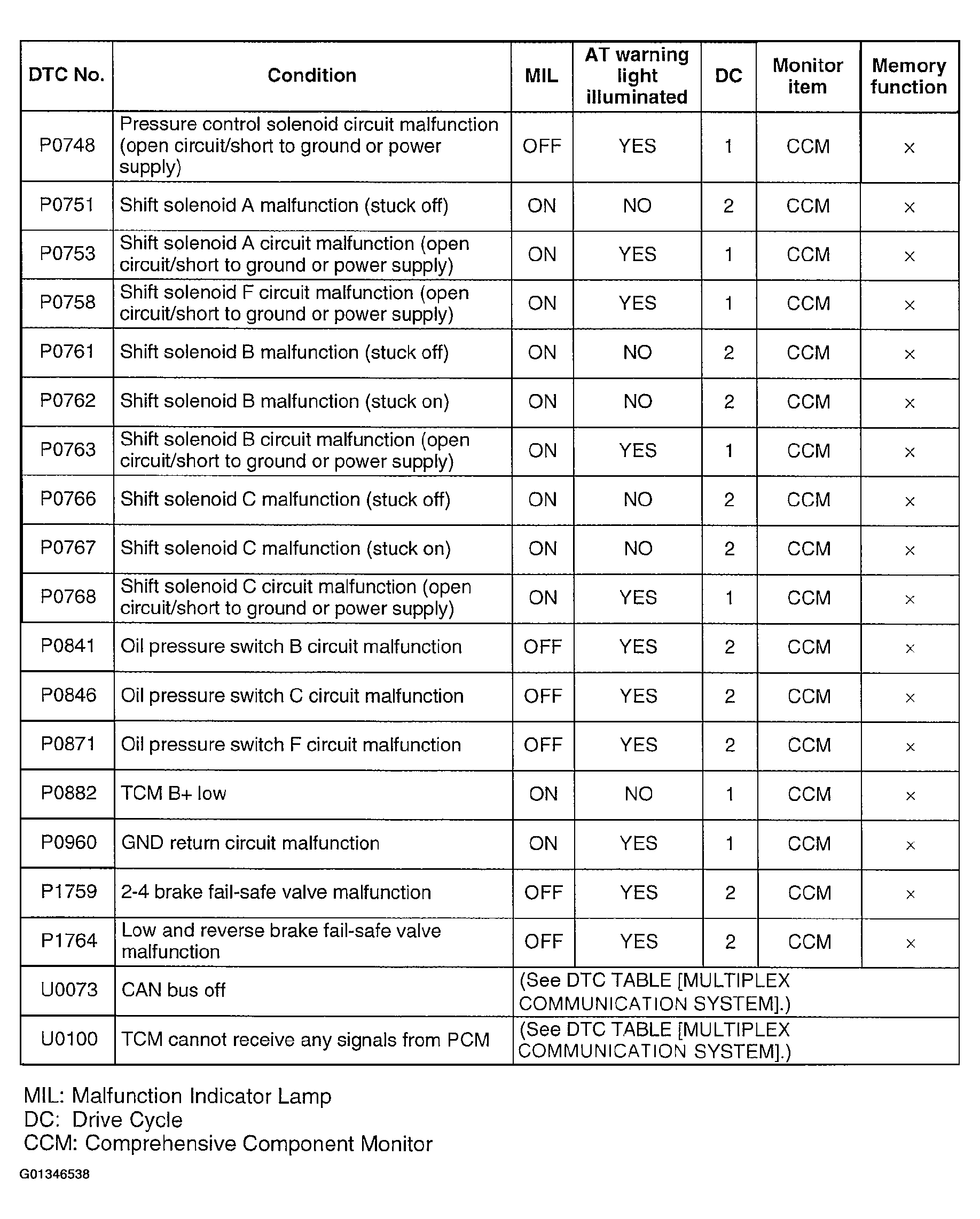

Fig 2: DTC's P0748, P0751, P0753, P0758, P0761, P0762, P0763, P0766, P0767, P0768, P0841, P0846, P0871, P0882, P0960, P1759, P1764 U0073 & U0100 Conditions

Courtesy of MAZDA MOTORS CORP.
