Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

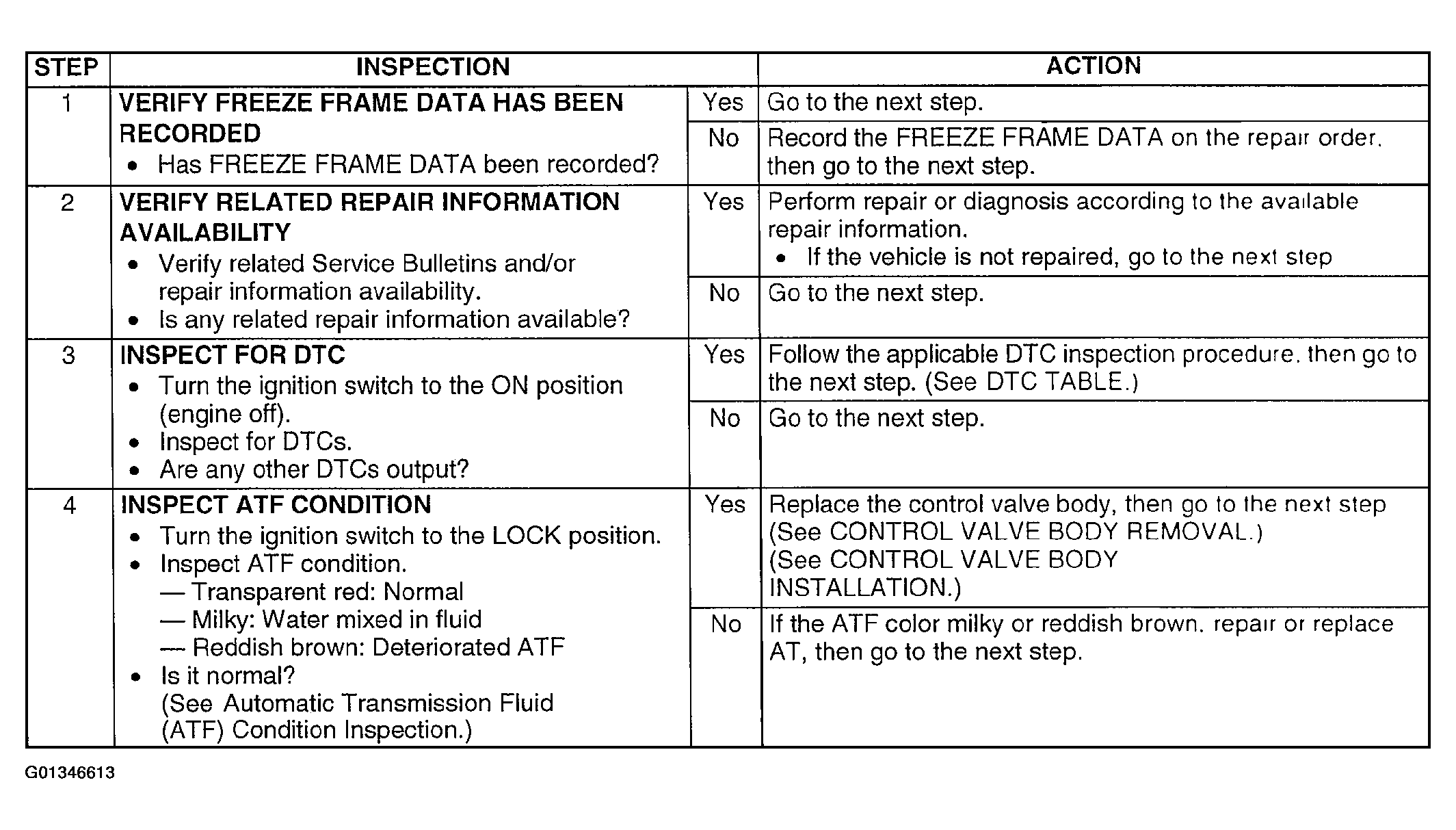

Fig 1: Diagnostic Procedure - DTC P0766: Shift Solenoid "C" Malfunction (Stuck Off) - (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

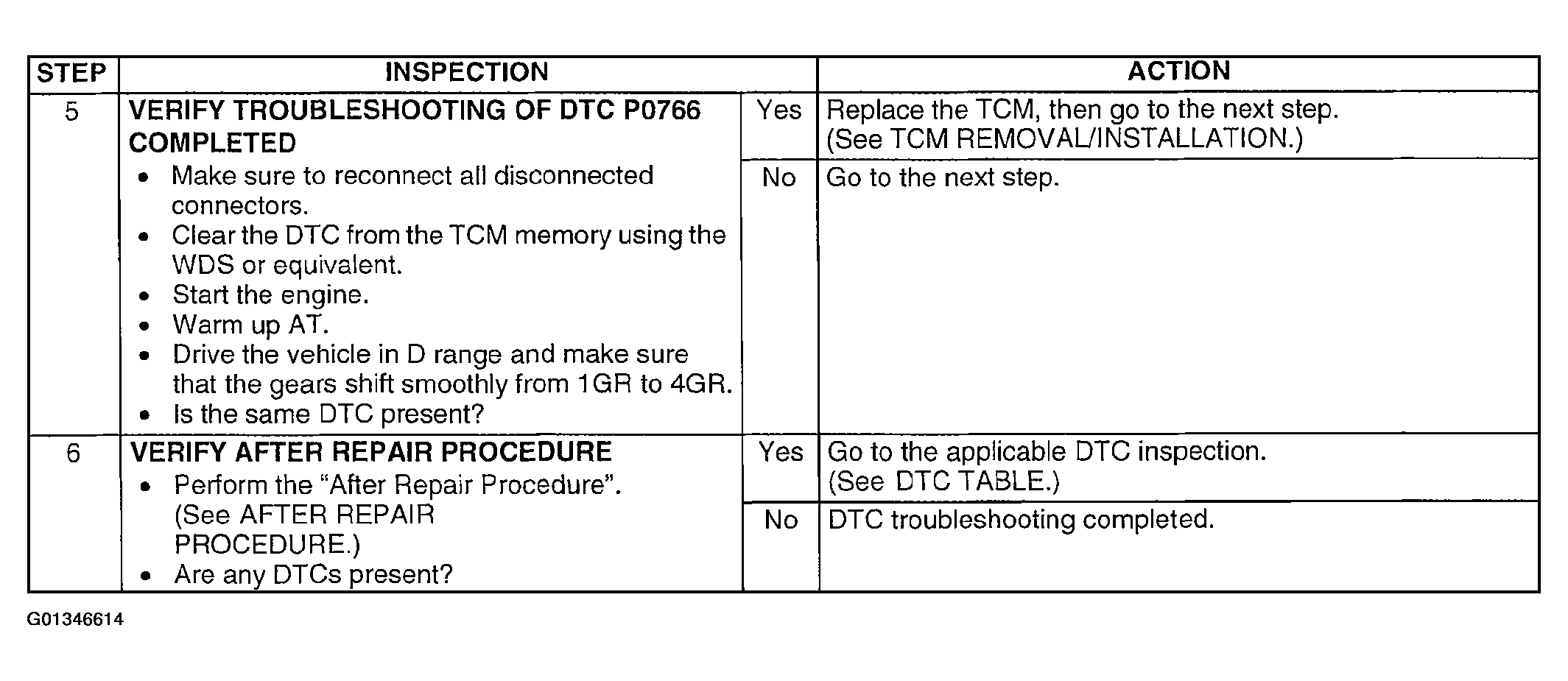

Fig 2: Diagnostic Procedure - DTC P0766: Shift Solenoid "C" Malfunction (Stuck Off) - (Steps 5-6)

Courtesy of MAZDA MOTORS CORP.
