DTC P0758: Shift Solenoid "F" Circuit Malfunction (Open Circuit/Short To Ground Or Power Supply): Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

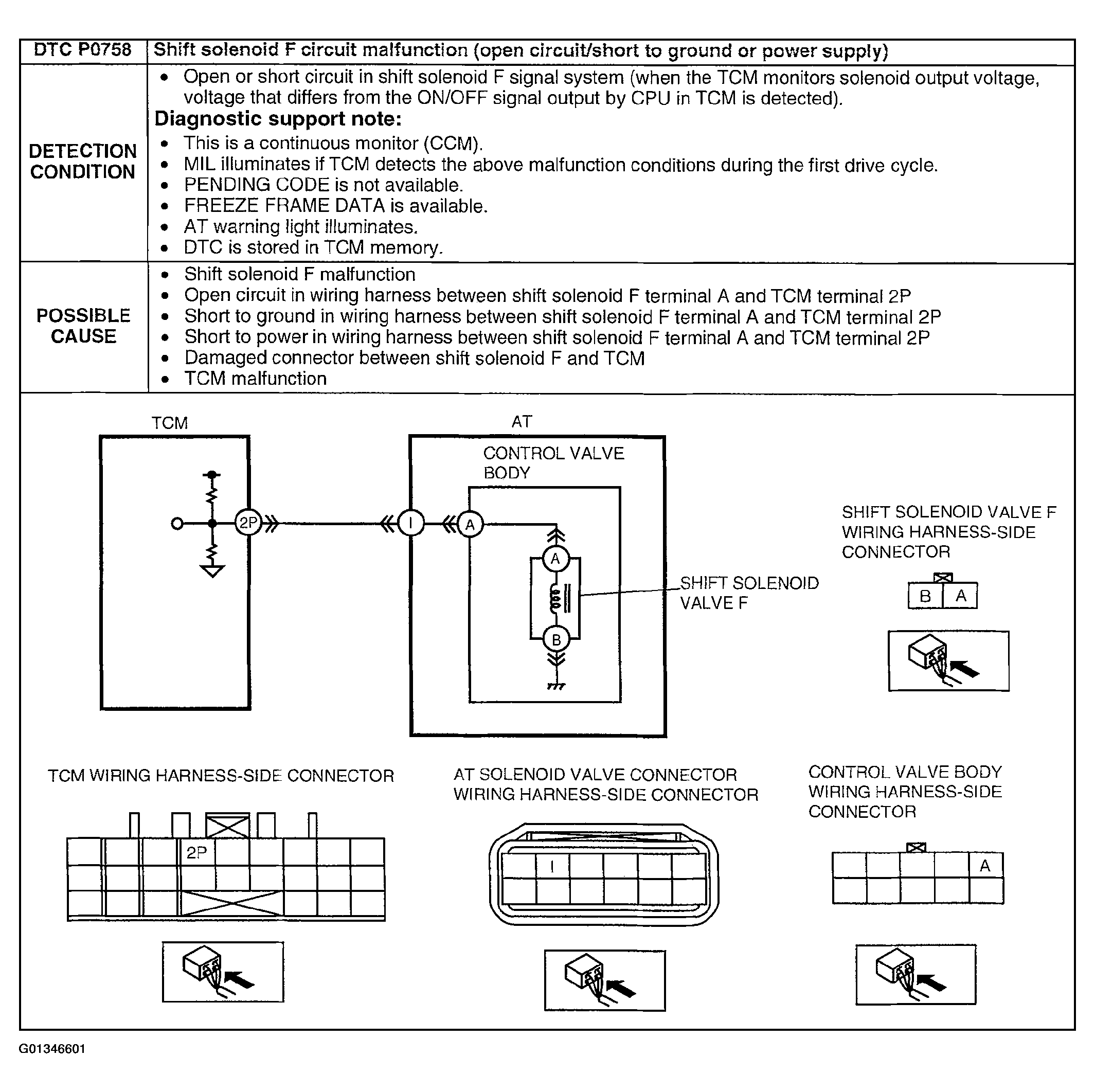

Fig 1: Possible Cause - DTC P0758: Shift Solenoid "F" Circuit Malfunction (Open Circuit/Short To Ground Or Power Supply)

Courtesy of MAZDA MOTORS CORP.
