Section 220 (On-Board Diagnostic [Automatic Transmission RC4A-El))
>>
DTC P0751: Shift Solenoid "A" Malfunction (Stuck Off)
>>
Diagnostic Procedure
Diagnostic Procedure
WARNING:
This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

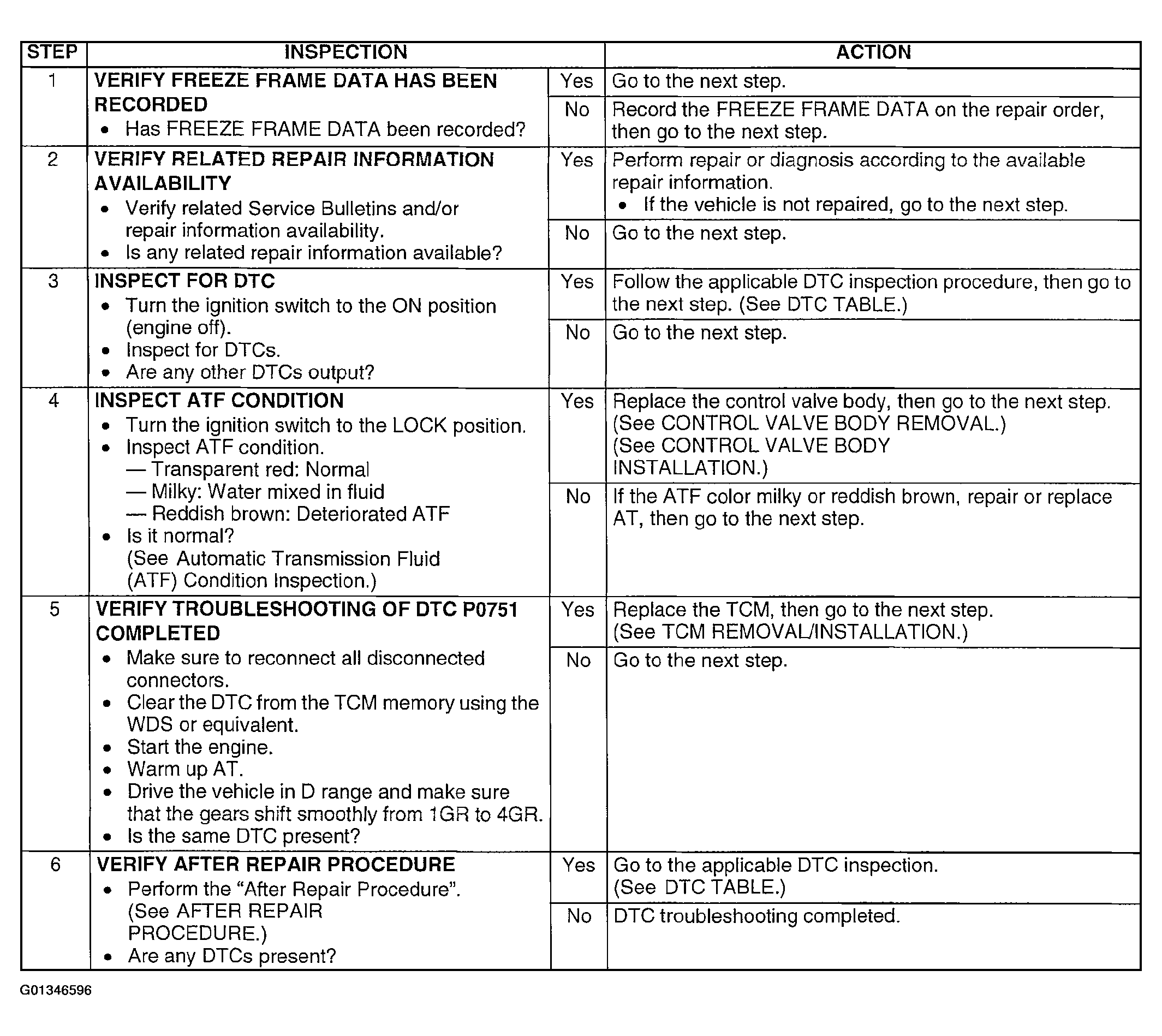

Fig 1: Diagnostic Procedure - DTC P0751: Shift Solenoid "A" Malfunction (Stuck Off) - (Steps 1-6)
Courtesy of MAZDA MOTORS CORP.
