Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

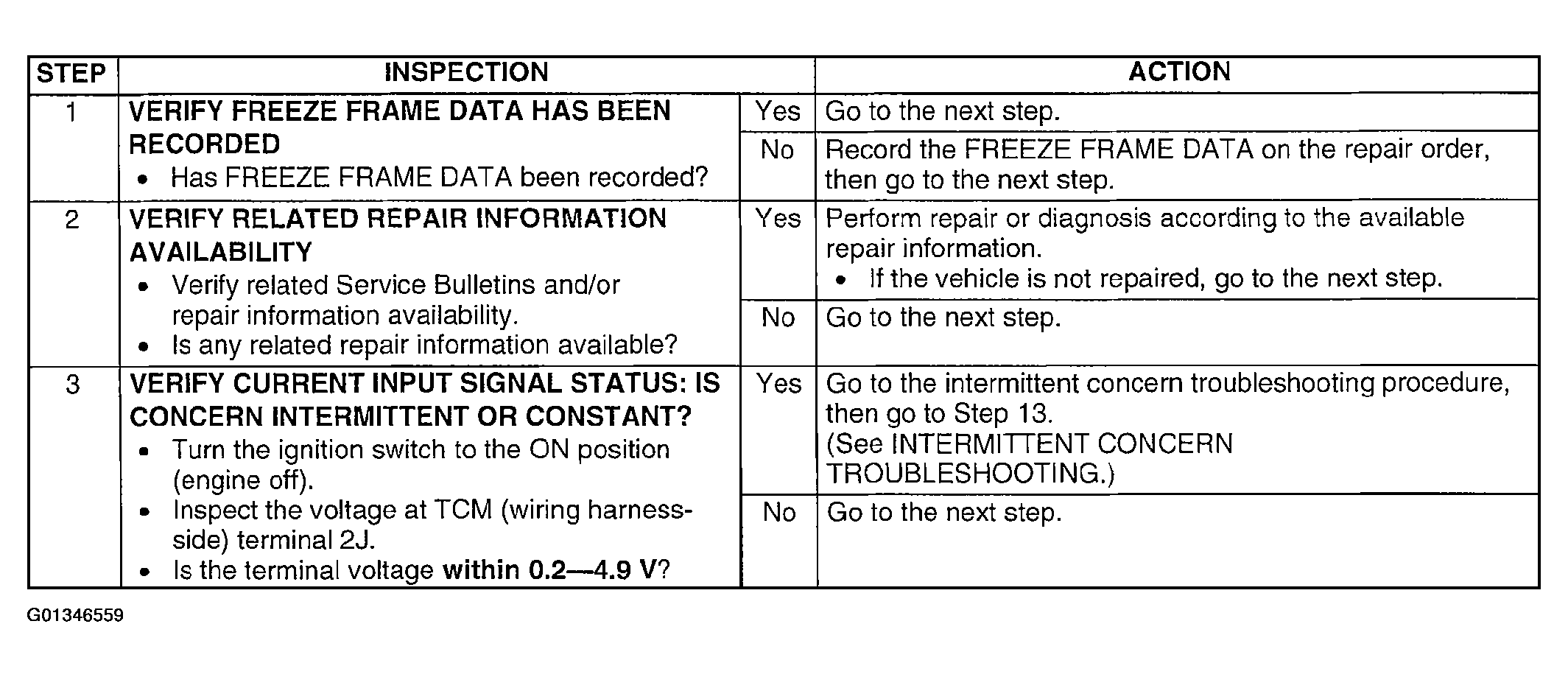

Fig 1: Diagnostic Procedure - DTC P0713: Transmission Fluid Temperature (TFT) Sensor Circuit Malfunction (Open Circuit/Short To Power Supply) - (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

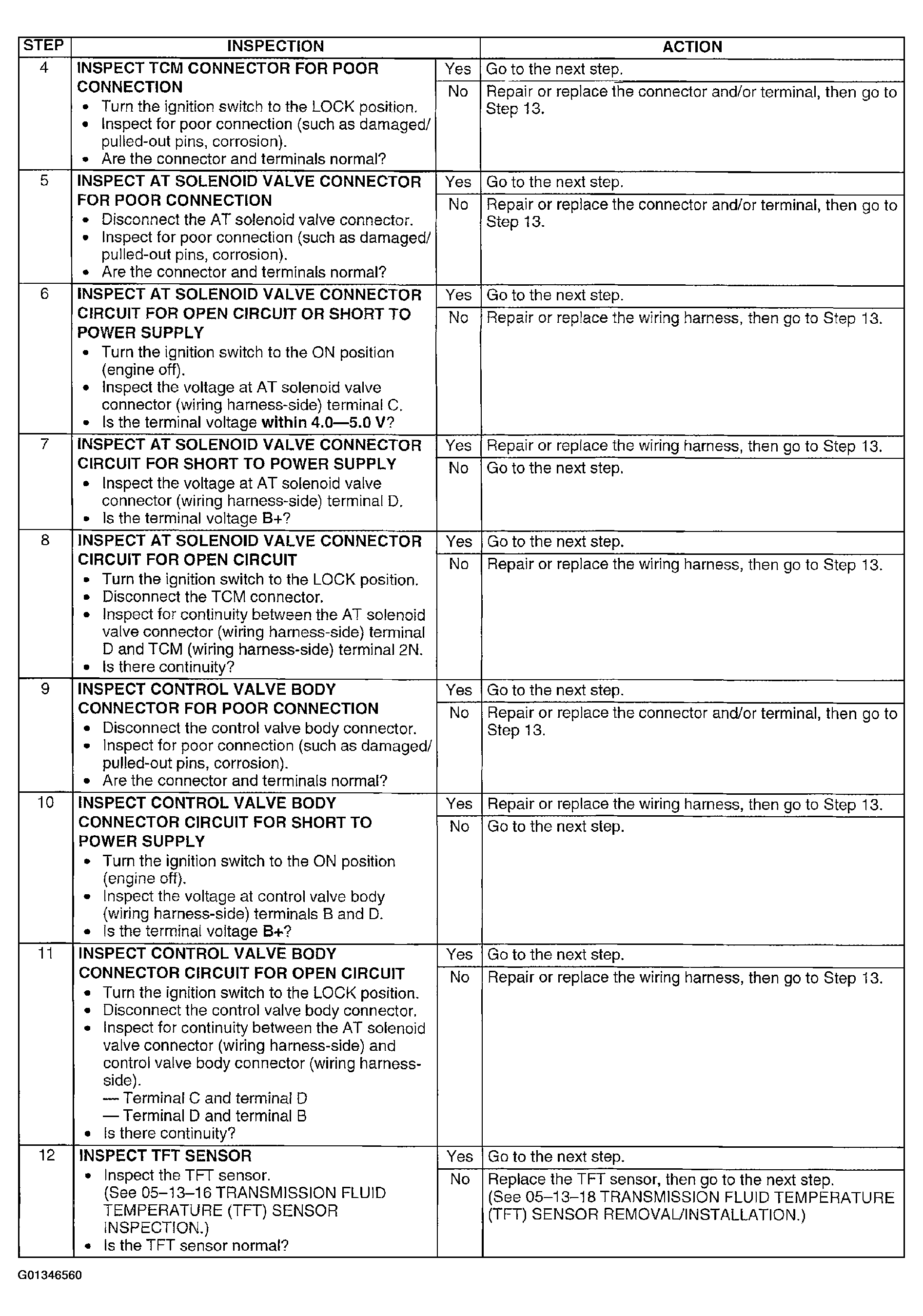

Fig 2: Diagnostic Procedure - DTC P0713: Transmission Fluid Temperature (TFT) Sensor Circuit Malfunction (Open Circuit/Short To Power Supply) - (Steps 4-12)

Courtesy of MAZDA MOTORS CORP.

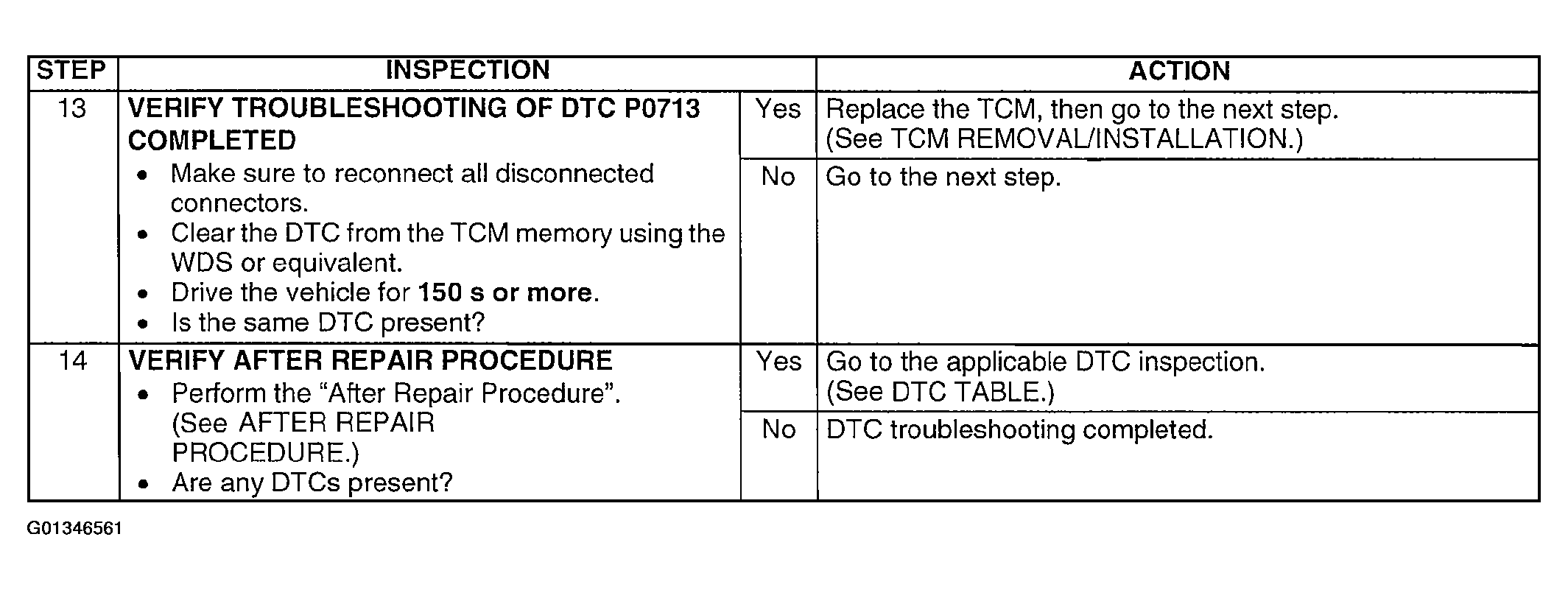

Fig 3: Diagnostic Procedure - DTC P0713: Transmission Fluid Temperature (TFT) Sensor Circuit Malfunction (Open Circuit/Short To Power Supply) - (Steps 13-14)

Courtesy of MAZDA MOTORS CORP.
